Electrical power cables are the backbone of modern energy distribution, transmitting electricity safely and efficiently across homes, industries, cities, and renewable installations. Choosing the correct electrical power cable type is critical for performance, safety, and longevity. This ultimate guide provides an in-depth look at electrical power cable types, classified by voltage, insulation, construction, and application, to help engineers, installers, and buyers make informed decisions in 2025.

1. Introduction to Electrical Power Cables

An electrical power cable is a robust assembly of one or more conductors with insulation, shielding, and protective layers designed to carry electrical power. Unlike general wiring, power cables prioritize high current capacity, mechanical strength, and environmental resistance for reliable transmission over long distances or in demanding conditions.

2. Classification by Voltage Rating

The most common way to categorize electrical power cables is by operating voltage:

• Low Voltage (LV) Power Cables: Up to 1 kV – used in residential, commercial buildings, and final distribution.
• Medium Voltage (MV) Power Cables: 1–35 kV – for urban networks, industrial feeders, and renewables.
• High Voltage (HV) Power Cables: 35–230 kV – long-distance transmission and substations.
• Extra High Voltage (EHV): Above 230 kV – backbone grid interconnections.

3. Classification by Insulation Material

Insulation determines thermal, electrical, and environmental performance:

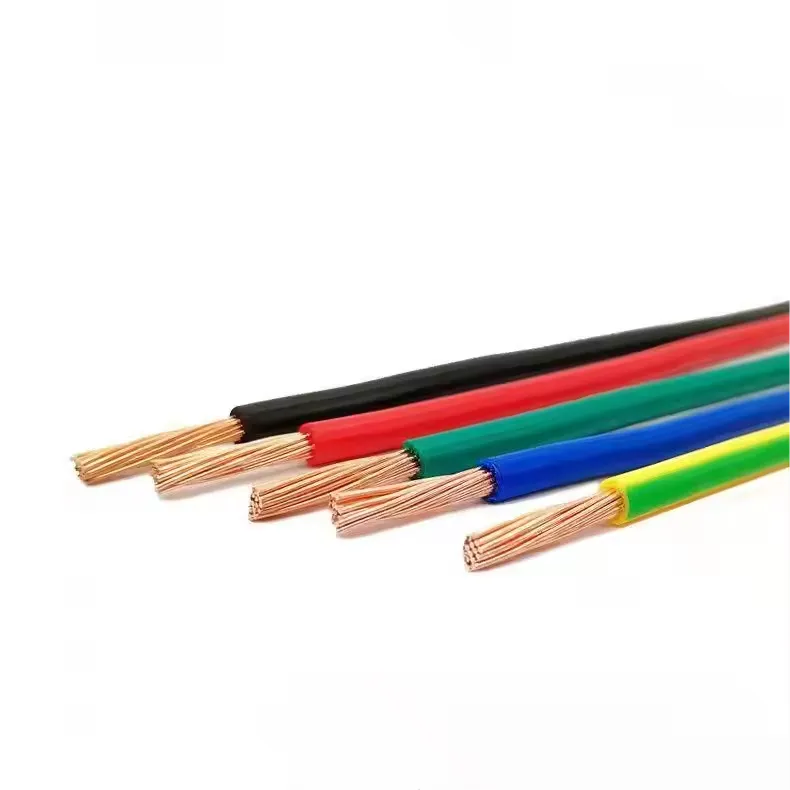

• PVC Insulated Power Cables: Cost-effective, flexible, flame-retardant; ideal for LV indoor applications up to 70°C.
• XLPE (Cross-Linked Polyethylene) Power Cables: Superior heat resistance (90°C continuous), low dielectric loss; dominant in MV/HV for underground and overhead.
• EPR (Ethylene Propylene Rubber) Power Cables: Excellent flexibility and water resistance; used in harsh environments and trailing applications.
• Paper-Insulated (PILC): Oil-impregnated paper – legacy for older HV networks, being phased out for XLPE.

4. Classification by Construction and Protection

• Unarmored Power Cables: Basic sheath – lightweight for indoor or conduit use.
• Armored Power Cables (SWA/AWA): Steel wire or aluminum armor – mechanical protection for direct burial or outdoor exposure.
• Screened/Shieded Power Cables: Copper tape or wire screen – reduces electromagnetic interference in MV applications.

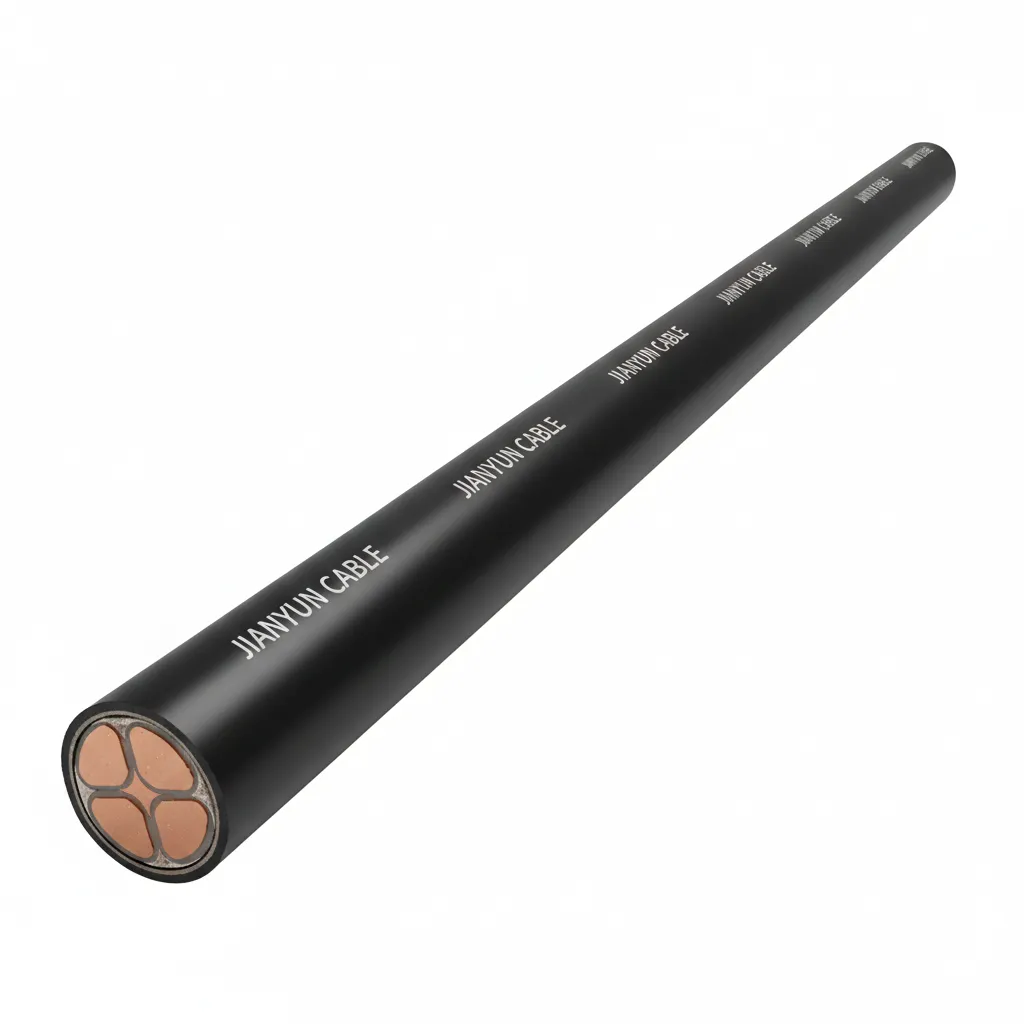

• Single-Core vs Multi-Core: Single-core for high currents; multi-core (3- or 4-core) for balanced LV distribution.

5. Classification by Application

• Underground Power Cables: Direct burial with armor and water-blocking.
• Overhead Power Cables: AAC, AAAC, ACSR conductors (often not fully insulated).
• Submarine Power Cables: Heavy armor, water-blocking for offshore wind and inter-island links.
• Fire-Resistant Power Cables: Mica tape + LSZH for emergency circuits in buildings.
• Renewable Energy Cables: UV-resistant, flexible for solar farms and wind turbines.

6. Comprehensive Comparison Table

7. How to Select the Right Electrical Power Cable

1. Define voltage, current load, and route length (calculate voltage drop).
2. Evaluate environmental factors: moisture, temperature, mechanical stress, chemicals.
3. Consider fire performance (CPR Euroclasses) and EMI requirements.
4. Check installation method: direct burial, trays, ducts, or overhead.
5. Ensure compliance with project specifications and future scalability.

8. Key Standards and Future Trends in 2025

Major standards include IEC 60502 (LV/MV), IEC 60840 (HV), and national equivalents. In 2025, trends focus on eco-friendly materials, higher temperature ratings (105°C XLPE), enhanced water-blocking for climate resilience, and integration with renewable/smart grid systems.

9. Final Thoughts

Understanding electrical power cable types empowers better system design and reliability. From everyday LV distribution to critical HV transmission, the right electrical power cable ensures safe, efficient energy delivery in an increasingly electrified world.
