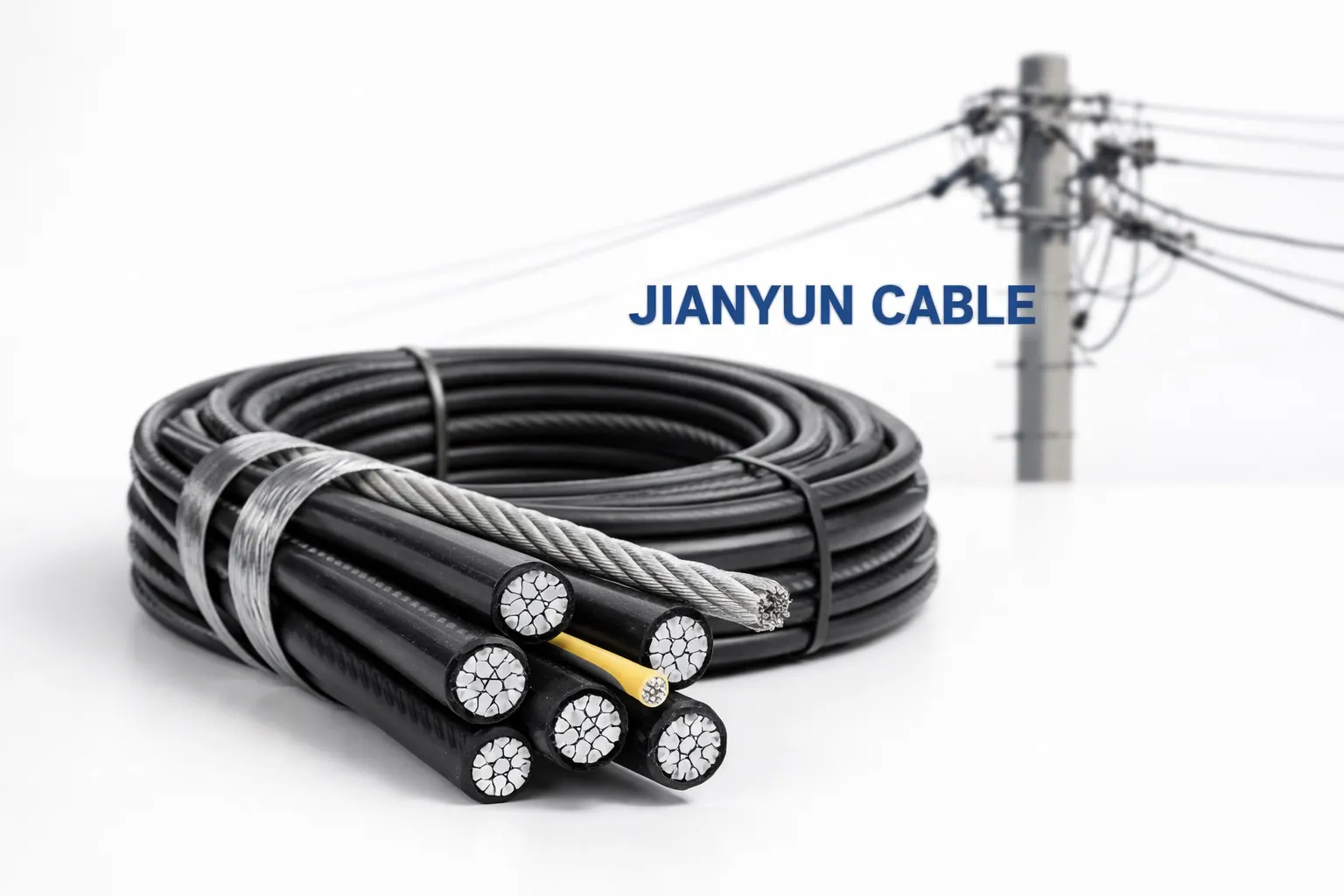

What Is Aerial Bundle Cable (ABC) and Where Is It Used?

By Jianyun Cable – Professional Manufacturer of Quality Electrical Cables

Aerial Bundled Cable (ABC), also known as Aerial Bundled Conductor, has become one of the most popular solutions for overhead low-voltage and medium-voltage power distribution worldwide. By bundling insulated phase conductors together with a neutral or messenger wire, ABC offers a safer, more reliable, and cost-effective alternative to traditional bare overhead lines. This guide explains what ABC is, how it is constructed, its main types, key benefits, typical applications, and best installation practices in 2025.

1. What Is Aerial Bundled Cable (ABC)?

ABC is an overhead power cable system where multiple insulated conductors (usually 2 to 5 cores) are twisted together around a central neutral or messenger conductor. The insulation on each phase conductor eliminates the need for large clearances between wires, reduces the risk of short circuits from falling branches or animals, and allows safer installation in densely populated or tree-covered areas.

2. Construction and Components of ABC Cable

A typical ABC cable consists of:

• Phase conductors: Aluminum or aluminum alloy, round stranded, XLPE or PE insulated
• Neutral / Messenger conductor: Either bare aluminum alloy (for self-supporting) or insulated (for street lighting or additional load)
• Insulation: Weather-resistant XLPE (cross-linked polyethylene) or black PE, UV-stabilized
• Assembly: Conductors twisted together with a specific lay length for mechanical stability

3. Main Types of Aerial Bundled Cables

4. Advantages of ABC over Traditional Bare Conductors

• Greatly reduced risk of short circuits caused by tree branches, animals, or wind-blown debris
• Safer for installers and the public – no live bare conductors
• Smaller right-of-way required – can be installed closer to buildings and trees
• Lower line losses due to better bundling and reduced corona effect
• Improved reliability in stormy, coastal, or polluted areas
• Reduced theft of conductors (insulated aluminum is less attractive)
• Lower maintenance costs and fewer outages

5. Where Is ABC Cable Commonly Used?

ABC is the dominant choice for low-voltage overhead distribution in many countries. Typical applications include:

• Rural and suburban power distribution networks
• Service drops from pole to residential/commercial buildings
• Street lighting circuits
• Temporary power supply at construction sites
• Upgrading old bare-wire lines in wooded or coastal areas
• Medium-voltage lines in regions prone to vegetation interference
• Electrification of remote villages and islands

6. Key Standards and Specifications (2025)

• IEC 60502-1 – Cables for 0.6/1 kV
• AS/NZS 3598 – Australian/New Zealand ABC standard
• BS 7870-5 – UK specification for ABC
• NF C 33-209 – French NFC standard (very common globally)
• ANSI/ICEA S-76-474 – North American covered conductors
• EN 50397-1 – Covered conductors for overhead lines

7. Installation Best Practices for ABC

• Respect minimum bending radius (usually 10–12 × cable diameter)
• Use proper dead-end clamps and suspension clamps rated for the messenger
• Maintain correct sag and tension according to conductor temperature and span length
• Install vibration dampers on spans longer than 100–120 m
• Ensure correct stripping length and use compatible insulation-piercing connectors
• Keep phase conductors correctly oriented to prevent twisting
• Verify messenger wire is properly earthed at poles

8. Final Thoughts

Aerial Bundled Cable (ABC) has revolutionized overhead power distribution by combining safety, reliability, and cost-effectiveness. Its ability to operate safely in close proximity to trees, buildings, and people makes it the preferred choice for modernizing rural, suburban, and even urban low-voltage networks. Whether for new electrification projects or upgrading aging bare-wire lines, ABC delivers fewer outages, lower maintenance, and safer operation for utilities and communities alike.
