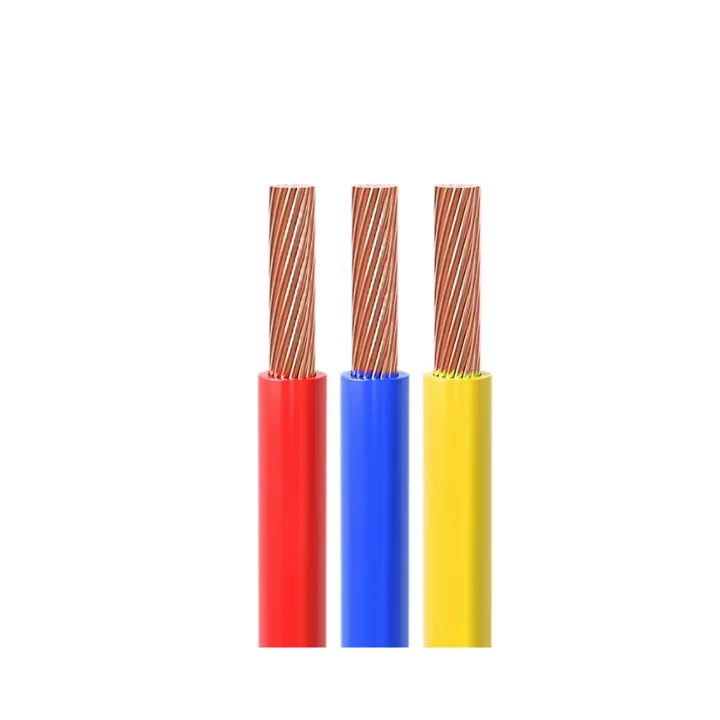

CE Certified 450/750V Flexible Copper Cable H07VV-F (3x2.5mm²)

CE Certification 450/750v H07VVF Flexible Copper PVC Insulated Ac Cable 3*2.5 Mm2

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes
Application	housing wire
Conductor Material	Copper
Conductor Type	solid or stranded
Insulation Material	PVC
Other attributes
Place of Origin	Henan, China
Brand Name	JYXL
Model Number	RV
Type	insulated
Name type	hfix building wire 4mm2
voltage	450/750V
cross section	1.5mm2-240mm2
Certification	ISO, CE, CCC, UL, VDE certificate
Standard	IEC 60227丨BS 62004丨DIN VED 0281
sheathed color	blue,red, green,yellow,blank and so on
colors	purple,blue,green,yellow,red,etc
price	direct factory price
Product name	5 conductor cable
Packaging and delivery
Packaging Details	flexible package, carton, coil, wooden case for hfix building wire 4mm2 or as your request
Port	Tianjin port, Shanghai port, Qingdao port or others
Supply Ability
Supply Ability	500 Kilometer/Kilometers per Month

Product descriptions

450/750v H07VVF PVC insulated ac cable 2x2.5 mm2

1. Professional manufacturer

2. Reliable quality

3. The most competitive price
3. Fast delivery
4.CE certificate

This products is fit for rated voltage U0/U 300/500V and 450/750V for domestic electrical applicants of smaller size motoriace tools of instruments of various meters and motorized lighting installations.

1). Rated voltage U0/U 300/500V and 450/750V.

2). The long-time permissible temperature of cable: BV-105 below 105°C,and the other below 70°C.

3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.

4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.

5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of cable. And the other is above 6 times of the external diameter of cable.

6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.

7). Light weight, perfect bending properties, installed and maintained easily and conveniently.

8). Insulation sheath material and color: PVC in red, black, blue or any color as required.

9). Type: Single or twin cables with different colors Provides OEM according to requests of customer.

Model and name

model	name
RV	copper PVC insualation flexible wire
RVB	copper PVC insualation flat flexible wire
RVS	copper PVC insualation twisted flexible wire
RVV	copper PVC insualation sheath parallel jointed flexible wire
RVVB	copper PVC insualation sheathe parallel jointed flexible wire
RV-90	copper core heat-resistak losc PVC joint flexible wire

Properties

1. The long-time permissible working temperature of cable conductive core is no more than 70°C.

2. During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.
3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0°C.
4. They have good chemical stability, and properties of acid, alkali, salt, oil, solvent and flame resistance.

Best quality for sale copper cable used for hosuing with CE certificate

Type	Name	Laying place and requirement	Long term working temperature
227IEC01/05 cu/pvc non sheathed	Copper conductor PVC insulated wires	Fixed laid indoors, conduits etc.	70
aluminum conductor	Aluminum Conductor PVC insulated wires	Fixed laid indoors, conduits etc.	70
227IEC07	Heat resistant copper conductor PVC insulated wires at 90	Mainly be laid at the places of high temperature environment and can be laid indoors, conduits.	90
copper conductor	Copper conductor PVC insulated flexible wire	Be for laying permanent place where flexible required.	70
227IEC10 cu/pvc/pvc	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid, fit for the places with high mechanical protection and moisture place. Can be laid in the air or underground.	70
al/pvc/pvc	Aluminum conductor PVC insulated PVC sheathed round wires		70
cu/pvc/pvc	Copper conductor PVC insulated PVC Sheathed flat wires		90
al conductor	Aluminum conductor PVC insulated sheathed flat wires		70
227IEC02RV 227IEC06RV	Copper conductor PVC insulated flexible connector	Mainly used at middle and light style of moving electronics, home appliances, power and lighting and the places where flexible required.	70
227IEC42	Copper conductor PVC insulated flat flexible connector
cu/pvc/pvc double core	Copper conductor PVC insulated flexible twisting connector wire
227IEC52 227IEC53	Copper conductor PVC insulated PVC sheathed round flexible connector(light and common type)
