Home / Product / Electric Wire / Hfix Flexible Copper Cable 4mm² (Household Wiring)

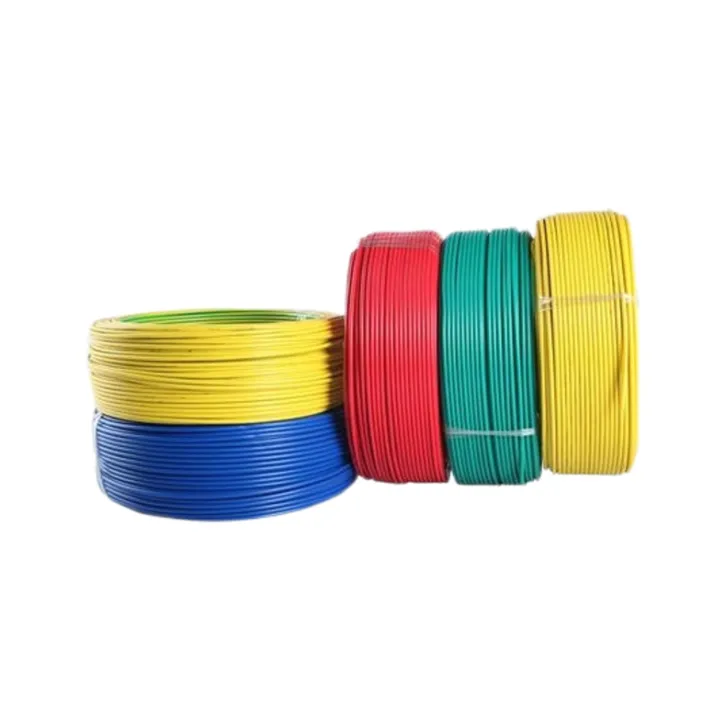

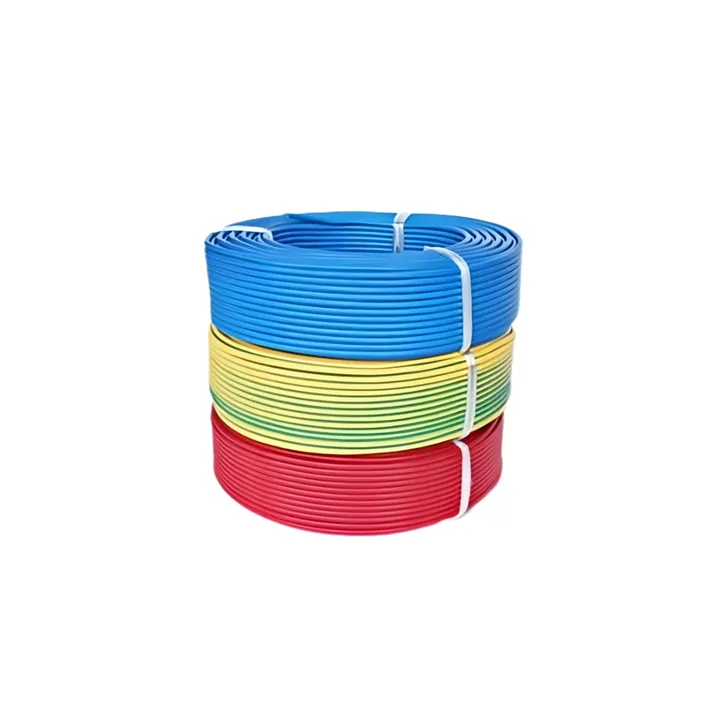

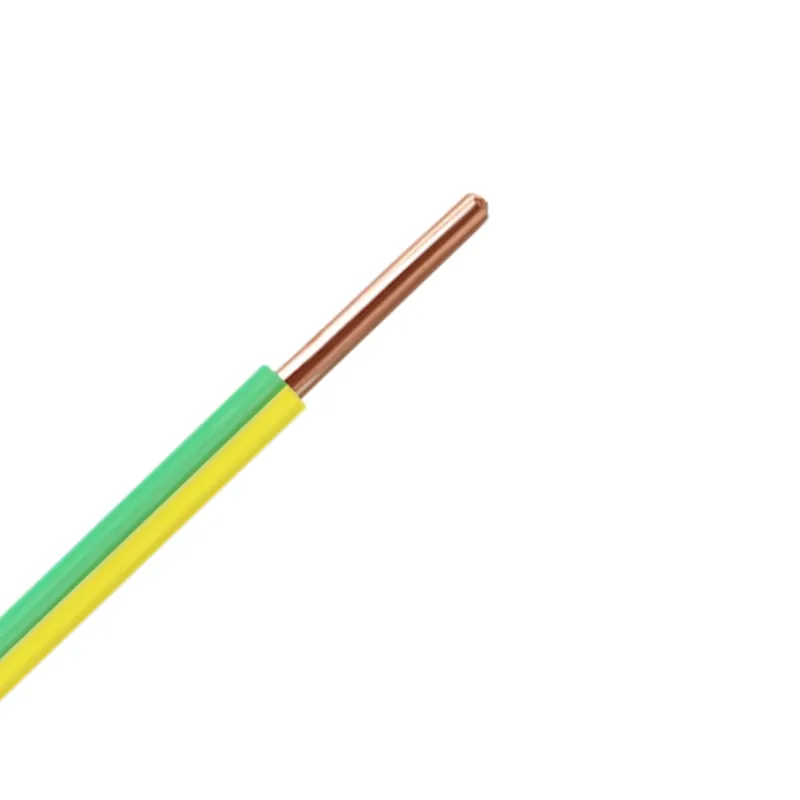

Household Electric Wiring Flexible Copper Hfix Building Wire 4mm2
|
Industry-specific attributes |
|
|
Application |
housing wire |
|
Conductor Material |
Copper |
|
Conductor Type |
solid or stranded |
|
Insulation Material |
PVC |
|
Other attributes |
|
|
Place of Origin |
Henan, China |
|
Brand Name |
JIANYUN |
|
Model Number |
RV |
|
Type |
insulated |
|
Name type |
hfix building wire 4mm2 |
|
voltage |
450/750V |
|
cross section |
1.5mm2-240mm2 |
|
Certification |
ISO, CE, CCC, UL, VDE certificate |
|
Standard |
IEC 60227丨BS 62004丨DIN VED 0281
|
|
sheathed color |
blue,red, green,yellow,blank and so on |
|
colors |
purple,blue,green,yellow,red,etc |
|
price |
direct factory price |
|
Product name |
5 conductor cable |
|

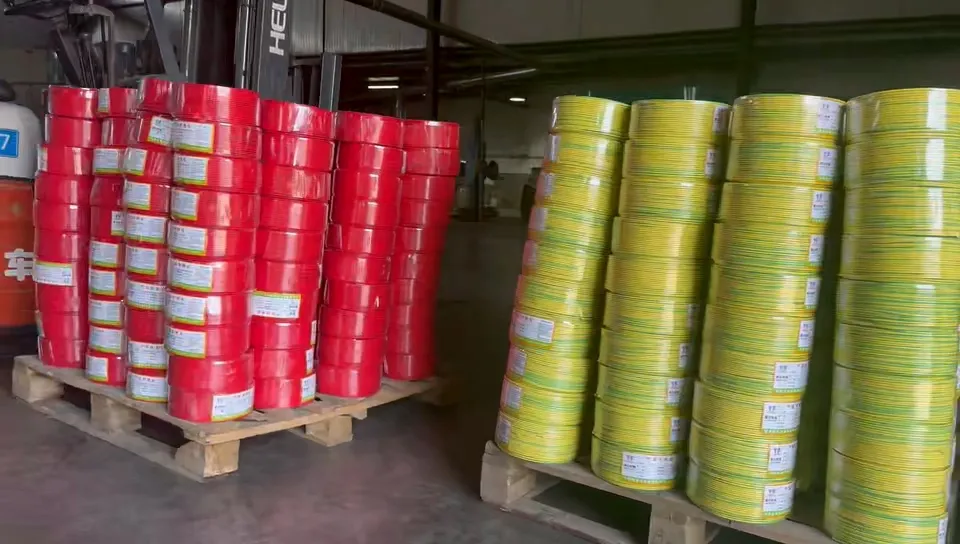

Packaging and delivery |
|
|
Packaging Details |
flexible package, carton, coil, wooden case for hfix building wire 4mm2 or as your request |
|
Port |
Tianjin port, Shanghai port, Qingdao port or others |
|
Supply Ability |
|
|
Supply Ability |
500 Kilometer/Kilometers per Month |
Conductor:high conductivity of copper class 5
Insulated material:PVC
Rated Voltage:450/750V
Standard:227IEC02, 227IEC06
Admissible long time working temperature of conductors:70 degrees.
The ambient temperature under installation should not below 0.
Impedance (ohms): 100±2ohm
Brief introduction
The PVC Insulated Wire belong to series of laying wires, which are mainly suitable for laying at the fixed places. The products is suitable for use in power installations,They are widely used as connectors of driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V(UO/U).
Standard 60227IEC02,GB5023.3-97
Rated voltage 300/500V or 450/750V
300/500V Nominal section 0.3-0.4-0.5-0.75-1.0MM2
450/750V Nominal section 1.5-2.5-4-6-10MM2

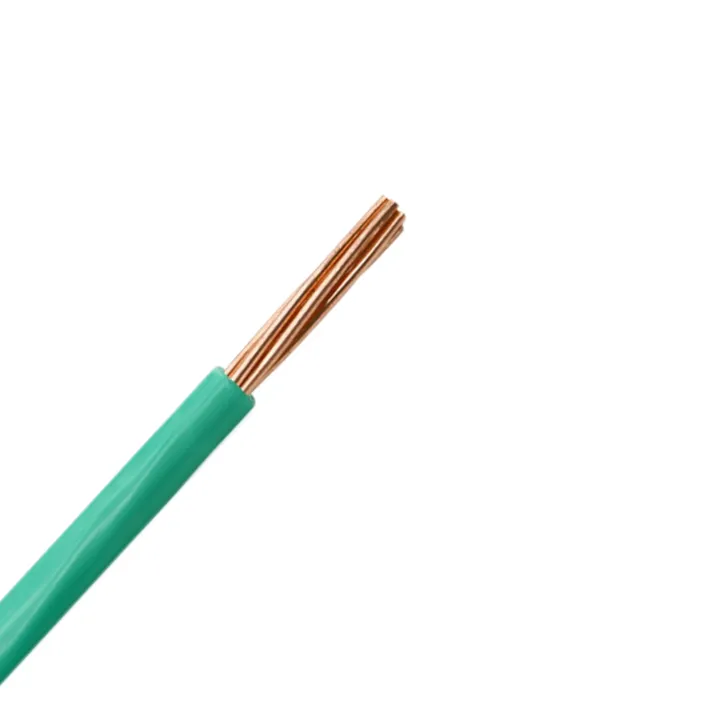

H07V-K Flexible copper PVC insulated electrical wires:
Rated voltage:450/750V
Conductor:high conductivity of flexible copper
Insulation:PVC(polyvinyl chloride)
Laying place and requirement: Mainly used at middle and light style moving electronics,home applicances,power and lighting and the places where flexible required.
The general characteristics of PVC insulated wire
PVC insulated wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
Long term working temperature of conductor:no more than 70degrees
table 1 to table 2
table 1 H05V-K 300V/500V RV
|
Nominal section (mm2) |
Core structure No./dia(mm) |
Max. dia(mm) |
Reference weight(kg/km) |
|
0.3 |
16/0.15 |
2.3 |
6.4 |
|
0.4 |
23/0.15 |
2.5 |
8.1 |
|
0.5 |
16/0.2 |
2.6 |
9.1 |
|
0.75 |
24/0.2 |
2.8 |
12.2 |
|
1.0 |
32/0.2 |
3.0 |
15.1 |
table 2 H07V-K 450V/750V RV
|
Nomina section (mm2) |
Core structure No./dia(mm) |
Max.dia(mm) |
Reference weight(kg/km) |
|
1.5 |
30/0.25 |
3.5 |
21.4 |
|
2.5 |
49/0.25 |
4.2 |
54.5 |
|
4 |
56/0.2 |
4.8 |
51.8 |
|
6 |
84/0.3 |
6.4 |
747.1 |
|
10 |
84/0.4 |
8.0 |
113.9 |
