Home / Product / Electric Wire / 300V Copper PVC Flexible Cable (3x0.75mm² / 20AWG)

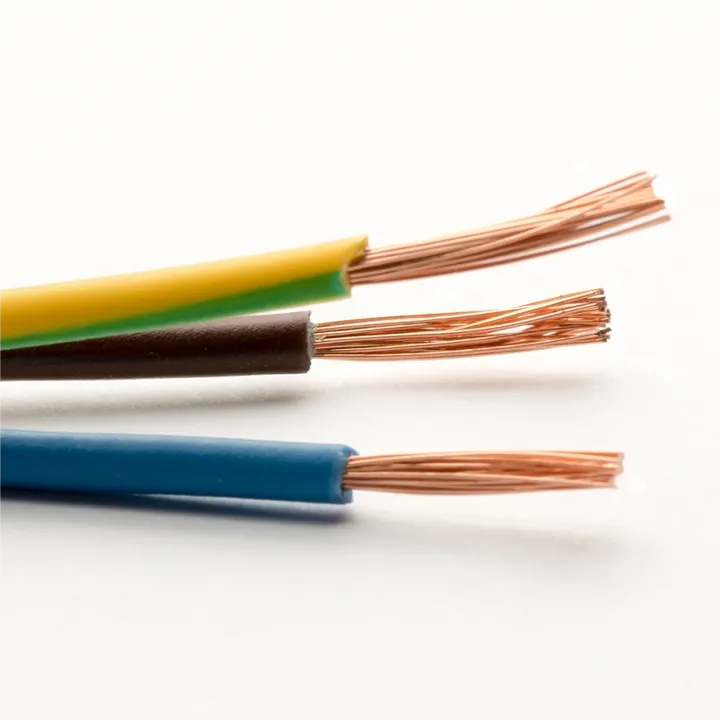

H03VV-F H03VVH2-F 300V Copper Round/Flat PVC Insulated PVC Sheathed Cable 3x0.75mm2 or 20AWG
|
Attribute |
Value |
Category |
|
Model Number |
BV |
Identification (Chinese Standard) |
|
Product Name |
PVC insulated wire RVV (Note: RVV usually implies sheathed, multi-core, which conflicts with BV/single core data) |
Identification/Type |
|
Type |
Insulated |
Configuration |
|
Standard |
IEC 60227-3, DIN VDE 0281 part 3 |
Compliance |
|
Rated Voltage |
$250/400\text{V}$ |
Electrical Rating |
|
Conductor Material |
Copper |
Construction |
|
Conductor Type |
Solid or strand (specifically "strand copper" is listed under Conductor) |
Construction |
|
Insulation Material |
PVC |
Construction |
|
Application |
Household and industrial installation wire |
Function |
|
Color |
Black, yellow/green, blue, red, grey or as required |
Customization |
|
Certification |
CE, VDE |
Compliance |
|
Brand Name |
JYXL |
Logistics |
|
Place of Origin |
Henan, China |
Logistics |
Packaging and Supply Details
|
Attribute |
Value |
Category |
|
Selling Units |
Single item |
Commercial |
|
Packing |
roll |
Packaging Style |
|
Port of Dispatch |
Tianjin port, Qing dao port, Shanghai port |
Logistics |
Application:
H03VV-F/H03VVH2-F is round/flat PVC insulated PVC sheathed cable for connecting electric appliances, devices and instruments i.e. table lamp and radio to the power supply network.
Description :
kabel H03VV-F / H03VVH2-F cable are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, offices;for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators). As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. Cables with cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U 495/495 volts.
|
Conductor |
Bare copper fine wire conductor, DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 |
|
Insulation |
PVC core insulation to VDE-0281 Part 1,Color coded to VDE-0293-308,Green-yellow grounding (3 conductors and above) |
|
Sheath |
PVC outer jacket |
