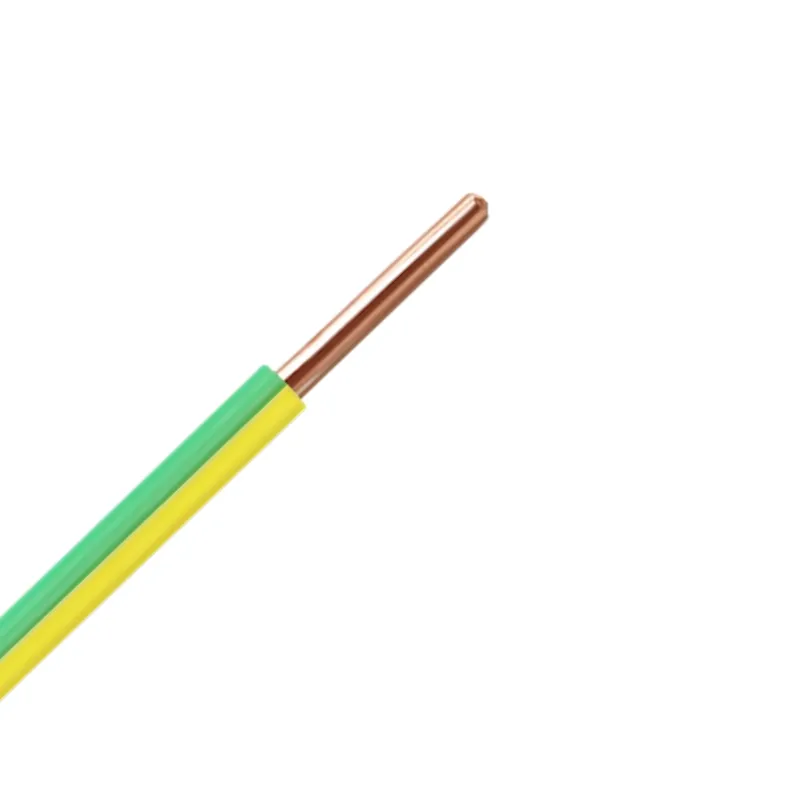

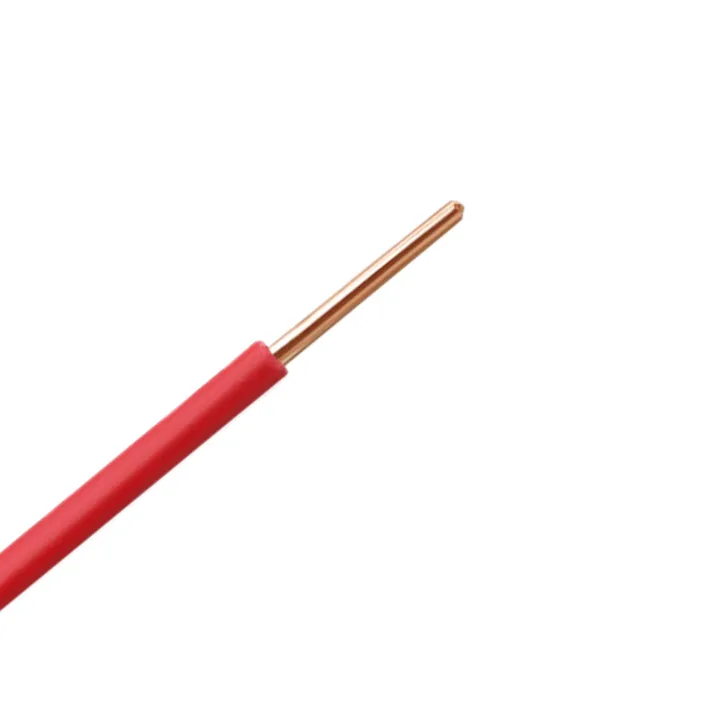

H07V-U wire is a flexible, low voltage electrical wire commonly used in industrial, commercial, and residential applications throughout Europe. It features copper conductors insulated with PVC, which provides protection against moisture, mechanical damage, and electrical faults.
Insulated conductor is used for laying in electric - installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment.
● Conductor: Copper, class 1, solid conductors
● Insulation: Polyvinyl chloride PVC
Specification
Standards: DIN VDE 0281-3 DIN EN 60228 Class 1 (construction)
● Rated voltage Uo/U: 450/750V.
● Normal operating temperature: 70˚C.
● Short circuit temperature (5 seconds maximum duration): 160˚C.
● IEC 60227-3 (mark 60227 IEC 01).
● Minimum bending radius:
4D for D < 8mm
5D for 8mm < D < 12mm
6D for D > 12mm
Note: D is overall diameter of cable.
| Conductor | Insulation Thickness | Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ | Allowable Ampacities | ||
| Min. | Max. | ||||||
| mm² | Class of Conductor | mm | mm | mm | kg/km | Ω/km | A |
| 1.5 | 1 | 0.7 | 2.6 | 3.2 | 21 | 12.1 | 18 |
| 2.5 | 1 | 0.8 | 3.2 | 3.9 | 32 | 7.41 | 25 |
| 4 | 1 | 0.8 | 3.6 | 4.4 | 47 | 4.61 | 33 |
| 6 | 1 | 0.8 | 4.1 | 5 | 65 | 3.08 | 42 |
| 10 | 1 | 1 | 5.3 | 6.4 | 110 | 1.83 | 58 |

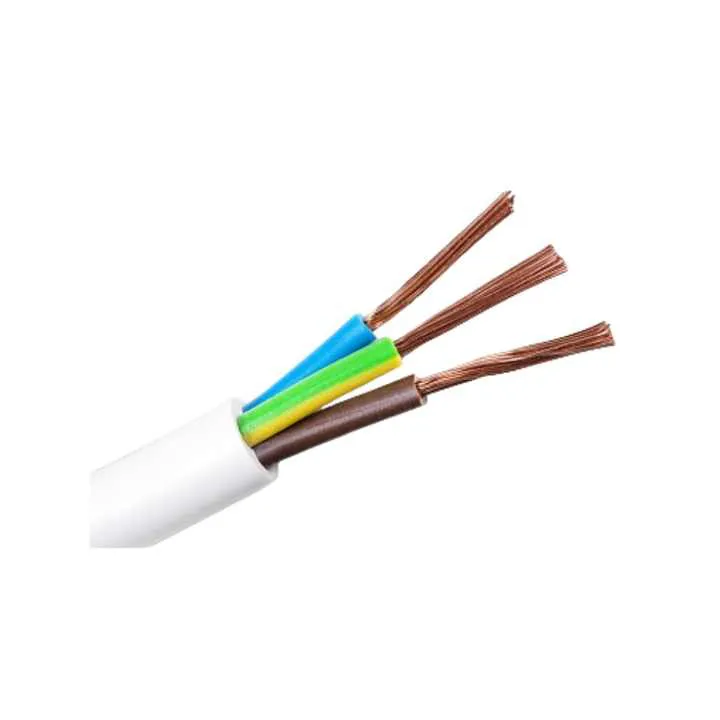

H03VV-F H03VVH2-F 300V Copper Round/Flat PVC Insulated PVC Sheathed Cable 3x0.75
