Understanding the distinction between wires and cables is fundamental for anyone involved in electrical installations, whether for residential, industrial, or specialized applications like solar photovoltaic (PV) systems or airport infrastructure. While often used interchangeably, wires and cables have distinct characteristics, constructions, and uses. This guide provides a comprehensive comparison for beginners, detailing their definitions, differences, applications, and technical considerations, with references to high-quality products from Henan Province Jianyun Cable Co., Ltd., presented in a formal and structured manner as of September 2025.

Table of Contents

1. Definitions: What Are Wires and Cables?
2. Key Differences Between Wires and Cables
3. Types of Wires and Cables
4. Applications of Wires and Cables
5. Technical Specifications and Standards
6. Practical Considerations for Selection
7. Challenges and Solutions
8. Conclusion

1. Definitions: What Are Wires and Cables?

• Wire: A single conductor, typically made of copper or aluminum, either bare or insulated with materials like PVC or XLPE. Wires are used to carry electrical current in basic circuits or as components within cables.
• Cable: A group of two or more insulated conductors (wires) bundled together, often with additional protective layers like sheathing, armoring, or shielding, designed for specific applications requiring durability, safety, or signal integrity.

Both wires and cables are essential in electrical systems, but their construction and intended use differ significantly. Manufacturers like Henan Province Jianyun Cable Co., Ltd. produce both high-quality wires (e.g., BV single-core wires) and cables (e.g., armored power cables) compliant with standards like IEC 60227 and IEC 60502-1.

2. Key Differences Between Wires and Cables

The primary differences between wires and cables lie in their construction, flexibility, protection, and functionality:

3. Types of Wires and Cables

3.1. Types of Wires

• Solid Wire: Single, rigid conductor (e.g., BV wire, Class 1 per IEC 60228) for fixed installations like in-wall wiring.
• Stranded Wire: Multiple fine strands (e.g., RV wire, Class 5) for flexibility in appliances or movable circuits.
• Bare Wire: Uninsulated conductor for grounding or overhead lines.
• Example: Jianyun Cable’s RV 2.5 mm² stranded wire for flexible household wiring.

3.2. Types of Cables

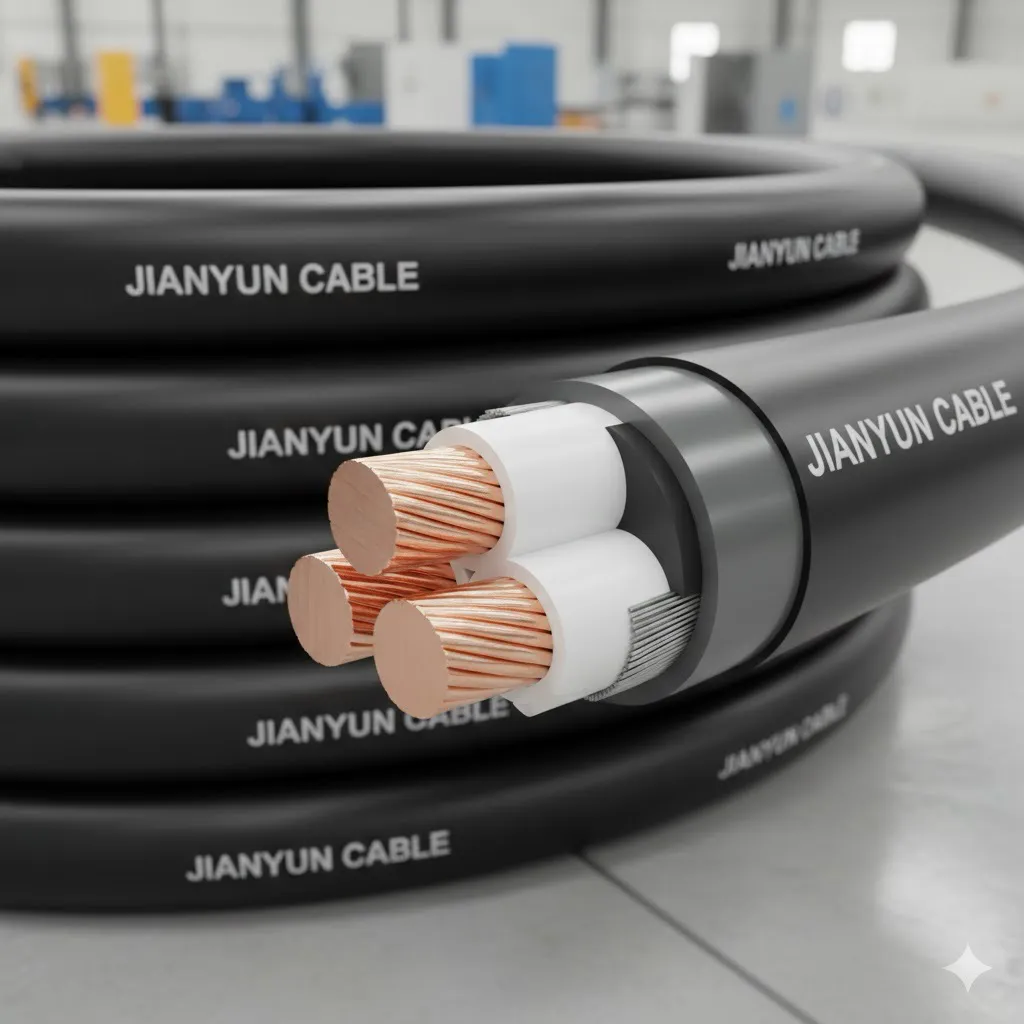

• Power Cables: Multi-core cables (e.g., 3-core XLPE-insulated) for low-voltage (0.6/1 kV) or medium-voltage (11–35 kV) distribution.
• Control Cables: Multi-core, shielded cables for instrumentation and automation (e.g., 300/500 V with copper braid).
• Communication Cables: Twisted pair or coaxial cables for data and voice (e.g., Cat6 for networking).
• Specialized Cables: Trailing cables for mining or airfield lighting cables (5 kV) for airports.
• Example: Jianyun Cable’s TUV-certified PV cables (IEC 62930) for solar applications.

4. Applications of Wires and Cables

• Wires:
  • Household Wiring: BV wires for fixed lighting and outlet circuits.
  • Appliance Wiring: RV wires for flexible connections in fans or heaters.
  • Grounding: Bare copper wires for earthing systems.
  • Example: Jianyun Cable’s BV wires for residential lighting circuits, compliant with IEC 60227.
• Cables:
  • Power Distribution: Armored power cables for industrial or airport power supply.
  • Communication Systems: Cat6 cables for airport Wi-Fi or office networks.
  • Specialized Applications: Trailing cables for mining equipment or airfield lighting cables for runways.
  • Example: Jianyun Cable’s SWA-armored 11 kV cables for airport infrastructure, compliant with IEC 60502-1.

5. Technical Specifications and Standards

Wires and cables must meet specific technical requirements and standards to ensure safety and performance:

• Conductor:
  • Wires: Copper or aluminum, solid (Class 1) or stranded (Class 2 or 5) per IEC 60228.
  • Cables: Multiple conductors, often stranded for flexibility.
• Insulation:
  • Wires: PVC, XLPE, or EPR, rated for 70°C or 90°C, with dielectric strength ≥20 kV/mm.
  • Cables: Similar insulation, plus additional sheathing (e.g., PVC, PUR, LSZH).
• Voltage Rating:
  • Wires: Typically 300/500 V or 450/750 V for low-voltage applications.
  • Cables: 0.6/1 kV to 35 kV, depending on the application.
• Standards:
  • Wires: IEC 60227 (PVC-insulated wires), IEC 60228 (conductors).
  • Cables: IEC 60502-1 (power cables), IEC 60332-3 (flame-retardant), EN 50618 (PV cables).
  • Environmental: RoHS and REACH for hazardous substance restrictions.
• Certifications: Jianyun Cable provides TUV- and CCC-certified wires and cables, ensuring compliance with international standards.

6. Practical Considerations for Selection

Choosing between wires and cables depends on the application and environment:

• Application Type:
  • Use wires for simple, single-circuit applications (e.g., household lighting).
  • Select cables for complex, multi-circuit systems (e.g., power distribution, communication).
• Environmental Conditions:
  • Wires: Suitable for indoor, low-stress environments.
  • Cables: Choose armored or LSZH cables for harsh conditions (e.g., UV exposure, high temperatures).
• Electrical Requirements:
  • Match conductor size to current and distance to minimize voltage drop (<1.5%, e.g., 4 mm² for 15 A over 50 m).
  • Use cables for higher voltage or multi-phase systems (e.g., 3-core for three-phase power).
• Installation Needs:
  • Wires: Solid wires (BV) for fixed installations; stranded wires (RV) for flexible routing.
  • Cables: Flexible cables for dynamic applications, armored cables for mechanical protection.
• Supplier Reliability: Partner with manufacturers like Jianyun Cable, offering TUV-certified wires (e.g., BV, RV) and cables (e.g., PV, armored) with proven performance, as showcased at Elektro 2025 in Moscow.

7. Challenges and Solutions

8. Conclusion

Wires and cables serve distinct roles in electrical systems, with wires being single conductors for basic circuits and cables comprising multiple conductors with protective layers for complex applications. Wires like BV and RV suit household wiring, while cables like armored power or PV cables are ideal for industrial and specialized uses. Both must comply with standards like IEC 60227, IEC 60502-1, and RoHS for safety and performance. Henan Province Jianyun Cable Co., Ltd. offers TUV- and CCC-certified wires and cables, ensuring reliability for applications from residential to industrial settings. By understanding their differences and selecting based on application, environment, and electrical needs, users can ensure safe and efficient installations for 20–30 years.
