How to Comply with IEC 62930 Standards for PV Cables

The IEC 62930 standard specifies requirements for photovoltaic (PV) cables used in solar power systems, ensuring safety, reliability, and performance in DC applications, typically at voltages up to 1.8/3 kV DC. Compliance with IEC 62930 is critical for solar projects, particularly for export markets and large-scale installations, to meet international safety and quality benchmarks. These cables, used to connect solar panels to inverters or combiner boxes, must withstand environmental stressors and maintain electrical integrity over a lifespan of 25–30 years. This guide outlines the key requirements of IEC 62930 and practical steps to achieve compliance, presented in a formal and structured manner.

Table of Contents

1. Overview of IEC 62930 Standard

IEC 62930, titled "Photovoltaic (PV) cables - Requirements for construction, testing, and performance," is an international standard that defines the specifications for single-core and multi-core PV cables used in DC circuits of solar systems. It applies to cables with a rated voltage of 1.5 kV DC (or 1.8/3 kV DC for specific applications), typically featuring cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) insulation and tinned copper conductors. The standard ensures cables are resistant to UV radiation, temperature extremes, and mechanical stress, while maintaining low voltage drop (<1.5%) and high insulation integrity. Compliance is essential for global market acceptance and regulatory approval in solar projects.

2. Key Requirements of IEC 62930

IEC 62930 outlines specific requirements for PV cables to ensure performance and safety. Key requirements include:

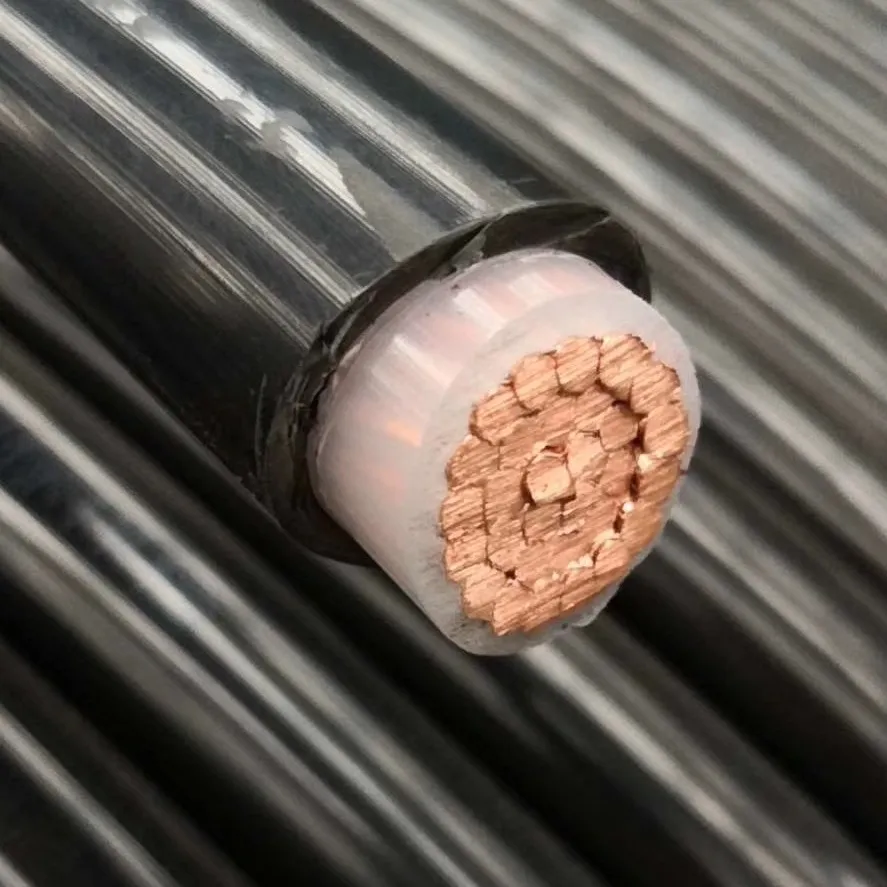

• Construction and Materials:

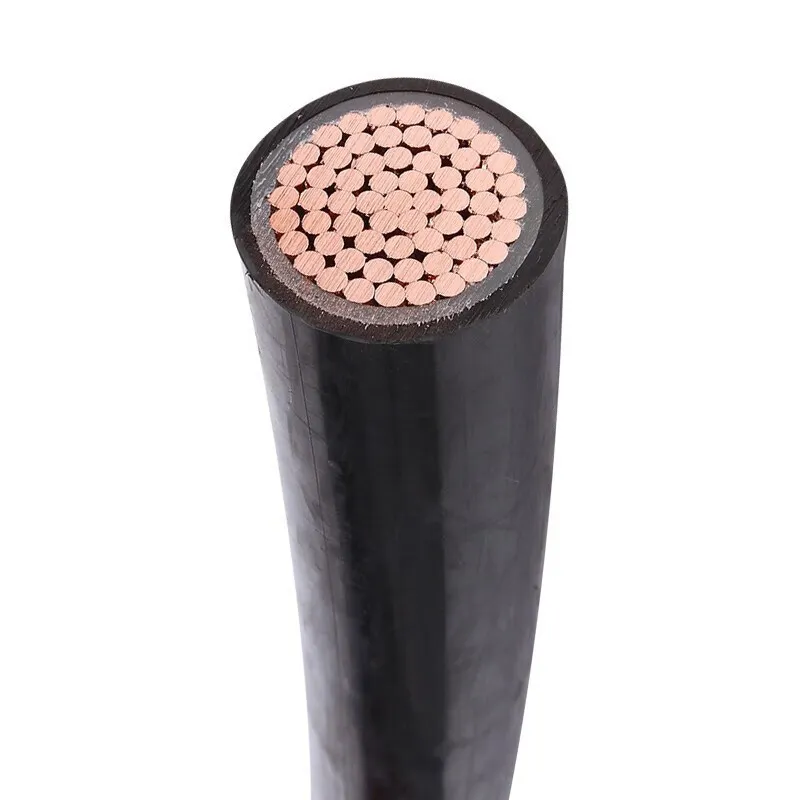

  • Conductors: Tinned copper, Class 5 (flexible) per IEC 60228, to ensure corrosion resistance and flexibility (e.g., 4 mm² with resistance <4.61 Ω/km).
  • Insulation: Cross-linked materials (e.g., XLPE, EPR) with a minimum dielectric strength of 20 kV/mm, rated for 90°C continuous operation.
  • Sheathing: UV-resistant, cross-linked outer sheath (e.g., XLPO) to withstand environmental exposure.
• Electrical Performance:
  • Voltage Rating: Rated for 1.5 kV DC (or 1.8/3 kV DC), suitable for open-circuit voltages (Voc) up to 1500 V.
  • Insulation Resistance: Minimum 1000 MΩ/km at 20°C to prevent leakage currents.
  • Partial Discharge: <10 pC at 1.5 times rated voltage to ensure insulation integrity.
• Environmental Resistance:
  • UV Resistance: Pass 720-hour UV exposure test (per EN 50618) to prevent degradation.
  • Temperature Range: Operate reliably from -40°C to 90°C, with short-circuit tolerance up to 250°C (5 seconds).
  • Moisture Resistance: Resist water penetration to prevent water treeing in insulation.
• Mechanical Durability:
  • Bending Radius: Minimum 4–6 times cable diameter to avoid insulation stress.
  • Tensile Strength: Withstand pulling forces during installation (e.g., 50 N/mm² for copper).
• Fire Safety:
  • Flame-Retardant: Comply with IEC 60332-1 to minimize fire propagation.
  • Low-Smoke Zero-Halogen (LSZH): Optional for indoor or confined spaces to reduce toxic emissions.

3. Steps to Achieve Compliance

Complying with IEC 62930 involves careful selection, testing, and installation practices. The following steps ensure adherence:

• Select Compliant Cables:
  • Choose cables certified to IEC 62930, with tinned copper conductors (Class 5) and XLPE/XLPO insulation and sheathing.
  • Verify voltage rating (1.5 kV or 1.8/3 kV DC) matches system requirements (e.g., Voc ≤1500 V).
  • Example: PV1-F cables with TUV certification for compliance.
• Verify Supplier Certification:
  • Request test reports and certificates from manufacturers, confirming compliance with IEC 62930 through third-party bodies (e.g., TUV Rheinland).
  • Check for batch-specific testing to ensure consistent quality.
• Conduct Proper Installation:
  • Maintain minimum bending radii (4–6D) to prevent insulation stress.
  • Use UV-resistant conduits or trays for outdoor installations to protect sheathing.
  • Secure cables with UV-resistant ties every 0.5–1 m to prevent movement.
  • Use IP67-rated connectors (e.g., MC4) to ensure sealed, reliable connections.
• Apply Environmental Protections:
  • Seal cable ends with heat-shrink caps during storage and installation to prevent moisture ingress.
  • Store cables in dry, covered areas (-20°C to 40°C) to avoid pre-installation degradation.
• Ensure Electrical Compatibility:
  • Size conductors to minimize voltage drop (<1.5%, e.g., 4 mm² for 15 A over 20 m).
  • Apply derating factors for high ambient temperatures (e.g., 0.91 at 40°C per IEC 60502).
  • Install surge protection devices (SPDs) to limit voltage transients (<1.2 kV for 1.5 kV systems).

4. Testing and Certification

Testing is integral to IEC 62930 compliance, ensuring cables meet performance and safety criteria:

• Insulation Resistance Test: Verify >1000 MΩ/km at 20°C to confirm insulation integrity.
• Partial Discharge Test: Ensure <10 pC at 1.5 times rated voltage to detect insulation voids.
• UV Resistance Test: Conduct 720-hour exposure test per EN 50618 to verify sheathing durability.
• Temperature Cycling Test: Test cables from -40°C to 90°C to confirm thermal stability.
• Flame-Retardant Test: Verify compliance with IEC 60332-1 to ensure fire safety.
• Third-Party Certification: Engage accredited bodies (e.g., TUV Rheinland, UL) for type testing and factory audits.

5. Challenges and Solutions

6. Conclusion

Compliance with IEC 62930 ensures that PV cables meet stringent requirements for construction, electrical performance, environmental resistance, and fire safety, making them suitable for reliable and safe operation in solar power systems. By selecting certified cables, verifying supplier credentials, following proper installation practices, and conducting rigorous testing, project managers can achieve compliance and ensure a cable lifespan of 25–30 years. Addressing challenges like certification costs and installation errors through strategic planning and partnerships with accredited bodies enhances the success of solar projects, particularly for export markets requiring global standards adherence.
