Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / Multi-size 1500V XLPO DC Solar Cable

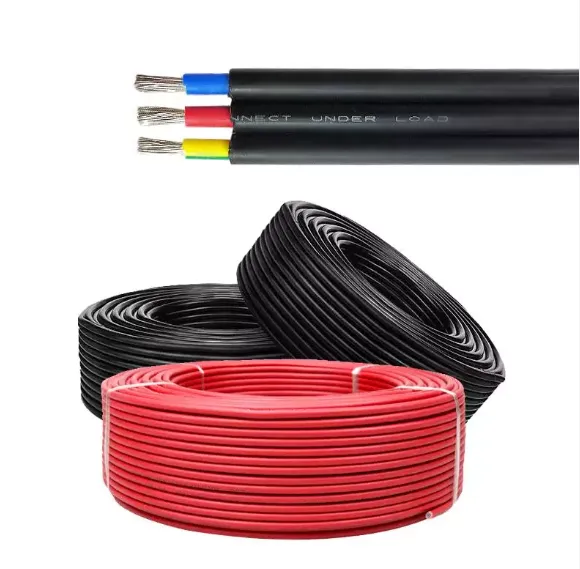

1500V XLPO Insulated 4mm2 6mm2 120mm2 DC Solar Cable
|
Industry-specific attributes |
|
|
Insulation Material |
XLPE |
|
Application |
Construction |
|
Conductor Material |
Copper |
|
Jacket |
NO |
|
Other attributes |
|
|
Place of Origin |
Henan, China |
|
Brand Name |
JIANYUN |
|
Model Number |
solar cable |
|
Type |
LOW VOLTAGE |
|
Product name |
Solar Cable |
|
Voltage |
AC1000V DC1500V |
|
Cross section |
1.5mm2 2.5mm2 4.0mm2 6.0mm2 10mm2 16mm2 |
|
Conductor |
Tinned flexible copper wire |
|
Insulation |
XLPO |
|
Certificate |
TUV certificate |
|
Standard |
EN50618 |
|
Characteristic |
High Heat Water Resistant |
|
Sample |
Free |
|
Packaging and delivery |
|
|
Packaging Details |
Standard export drum for DC solar cable |
|
Port of dispatch |
Tianjin port, Qing dao port, Shang hai port |
|
Selling Units |
Single item |
|
Supply capacity |
|
|
Supply Ability |
500 kilometers per Month DC solar cable |
Single core flexible cables suited for photovoltaic and solar system with cross-linked polymer insulation and halogen free sheath.
For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter Gable and flat roof photovoltaic systems Photovoltaic plants and solar parks Flexible or building-integrated PV systems including connecting photovoltaic power supply systems & can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. from - 40 deg.C to 120 deg.C maximum and Ozone & UV Resistant and full protection against Ultra Violet rays.
Weather/UV-resistant acc. to HD 605/A1
Ozone-resistant according to EN 50396
Halogen-free and flame-retardant
Good notch and abrasion resistance
XLS-R = X-Linked Standard - Reduced Proven electron beam cross-linked quality
Cold Flexibility
Long Life about > 25 years
Suitable to common connector type
Standard to follow
TUV 2 PFG 1169 / 08.2007 & VDE E PV 01
Conductor
Tinned fine copper strands, according to IEC 60228, class 5
Insulation
Cross Linked polyolefin-copolymer Double Insulated Temperature resistant and halogen free , Flame Retardant, Low Smoke.
Color of Insulation
Black, red, blue
Outer Sheath
Flame retardant and halogen free Co-Polymer, electron beam cross linked, Weather proof & UV Resistant. Color – Black
Electrical Properties
Nominal voltage U0/U acc. VDE AC 600/1000 V - 720/1200 V & DC 900/1800 V
Max. permitted DC voltage 1.8 kV (Conductor/Conductor. non earthed system
Working voltage : According to. TÜV 2 PfG 1169 DC 1000 V
Test voltage AC 6,5 kV for 5 min & DC 15 KV.
Voltage resistance tests according to EN 50395
Insulation Resistance - 1000 m-OHM / km minimum
Ambient temperature: -40 °C to 90°C (25 year life)
Conductor temperature: 120 °C max.
Short Circuit temperature: 200 °C for 5 sec.
Thermal Endurance Test: According to EN 60216-2
High Temperature Pressure: Test according to EN 60811-3-1
Damp – Heat Test: According to EN 60068-2-78
1000 hrs. at 90°C with 85% humidity
Mechanical Properties
Minimum Bending Radius: 4 to 5 x Outer Diameter
Dynamic Penetration: According to requirement of Cables for PV systems 2 Pfg 1169/08.2007 Annex F
Notch Propagation: According to 2 Pfg 1169/08.2007 Annex G
Tensile Strength: 15 N/mm2 for insulation and 12.5 N/mm2 for sheathing – according to EN60811
Elongation of Insulation and sheathing: 125% – according to EN60811
Shore Hardness 85 According to DIN EN 53505
Shrinkage: 2% at 120°C according to EN 60811-1-3
EU Directives
The cables are RoHS (Restriction of certain Hazardous Substances) compliant as per EU Directives 2002/95/EC
Chemical Characteristics
Mineral Oil Resistance: according to EN 60811-2-1 & vde 0473-811-2-1
Ozone Resistance: according to EN 50396 part 8.1.3 Method B
Weathering-UV Resistance: according to HD 605/A1 or DIN 53367
Ammonia resistant : 30 days in saturated ammonia atmosphere (internal testing)
Very good resistance to oil and chemicals
High wear and robust, abrasion resistant
Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)
Flame retardant according to IEC 60332-1-2 & VDE 0482 Part 332-1-2
Low smoke emission < 20% as per ASTM D-2843 , BS EN 50268 (IEC 61034) , VDE 0482 Part 266-2-5
Halogen free according to EN 50267-2-1/-2, IEC 60754-2
Acid gas emission not more than 0.5% as per IEC 60754-1 pH minimum 4.3 as per IEC 60754-2 conductivity maximum 10 as per IEC 60754-2
Toxicity according to EN 50305, ITC- index<3
Flame Propagation - BS EN 50265, EN50266(IEC 60332)
Light Transmission - < 60 % As per DIN EN 50268-2
Corrositivity - according to DIN EN 50267-2-2
Ozone resistance according to DIN EN 50396 test type B, HD 22.2 test type B UV resistance according to UL 1581 (Xeno-Test), ISO 4892-2 (Method A) and HD 506/A1-2.4.20 Absorption of water (gravimetric) according to DIN VDE 0473-811- 1-3, DIN EN 60811-1-3
