Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / 2x35mm² Twin Core H1Z2Z2-K Solar Cable

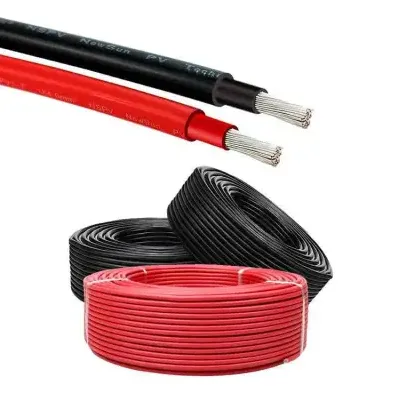

H1Z2Z2-K 2x35mm2 XLPO Insulating Sheath Solar Cable
|
Attribute |
Detail |
|
Product Name |
H1Z2Z2-K Solar Cable |
|
Brand Name |
JYXL |
|
Place of Origin |
Henan, China |
|
Type |
Low Voltage |
|
Application |
construction, industrial, power station |
|
Standard |
EN50618 |
|
Certificate |
UL, TUV, KEMA, BV, PSB, SABS, ABS |
|
Voltage |
0.6/1KV |
|
Conductor Material |
Copper, Aluminum, Copper-clad Aluminum |
|
Conductor |
Copper |
|
Core Number |
1 |
|
Cross section |
1.5mm2--35mm2 |
|
Insulation Material / Insulation |
XLPO |
|
Jacket / Sheath |
XLPO |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Packaging Details |
Standard Exporting Drum or as requesting |
|
Port of Dispatch |
Tianjin port, Qingdao port, Shanghai port |
|
Single Package Size |
10X10X5 cm |
|
Single Gross Weight |
2.000 kg |
Supply Capacity
|
Attribute |
Detail |
|
Supply Ability |
1,000,000 meters per Month |
Applications:
H1Z2Z2-K Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables have an operating temperature range of -40oC to +90oC.
EN 50618
Cable Construction
Conductor: Tinned copper
Insulation: XLPO
Jacket: XLPO
|
NO. OF CORES |
NO. OF |
NOMINAL CONDUCTOR DIAMETER |
NOMINAL INSULATION THICKNESS |
NOMINAL SHEATH |
NOMINAL OVERALL |
NOMINAL |
|
NO. ×MM² |
- |
MM |
MM |
MM |
MM |
KG/KM |
|
1×1.5 |
30/0.25 |
1.58 |
1.14 |
0.82 |
5.4 |
52 |
|
1×2.5 |
50/0.25 |
2.04 |
1.14 |
0.82 |
5.8 |
67 |
|
1×4.0 |
56/0.30 |
2.59 |
1.14 |
0.82 |
6.4 |
87 |
|
1×6.0 |
84/0.30 |
3.17 |
1.14 |
0.82 |
7.0 |
113 |
|
1×10 |
78/0.40 |
4.07 |
1.52 |
0.82 |
8.6 |
178 |
|
1×16 |
128/0.40 |
5.22 |
1.52 |
0.82 |
9.8 |
254 |
|
1×25 |
199/0.40 |
6.51 |
1.52 |
0.82 |
11.1 |
363 |
|
1×35 |
279/0.40 |
7.71 |
1.52 |
0.82 |
12.3 |
473 |
