Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / 2x4mm² Twin Core PV Solar Wire
Twin Core PV Solar Cable 2x4mm2 TUV EN50618 TUV IEC62930 Solar Panel Wire
Key Attributes
|
Attribute |
Detail |
|
Product Name |
PV SOLAR CABLE |
|
Model Number |
Solar PV wire or cable |
|
Brand Name |
JYXL |
|
Place of Origin |
Henan, China |
|
Type |
0.6/1KV |
|
Application |
Solar SYSTEM |
|
Application (Detailed) |
SOLAR POWER STATION |
|
Certification |
TUV UL CE PSB |
|
Certificate |
UL 4703 |
|
Conductor Material |
Tinned copper wire |
|
Conductor |
Tinned Copper |
|
Insulation Material |
XLPO |
|
Rated Voltage |
1.5kv |
|
Voltage |
0.6/1KV |
|
Size |
1.5MM2 TO 50MM2 |
|
Number of Cores |
2 CORE |
|

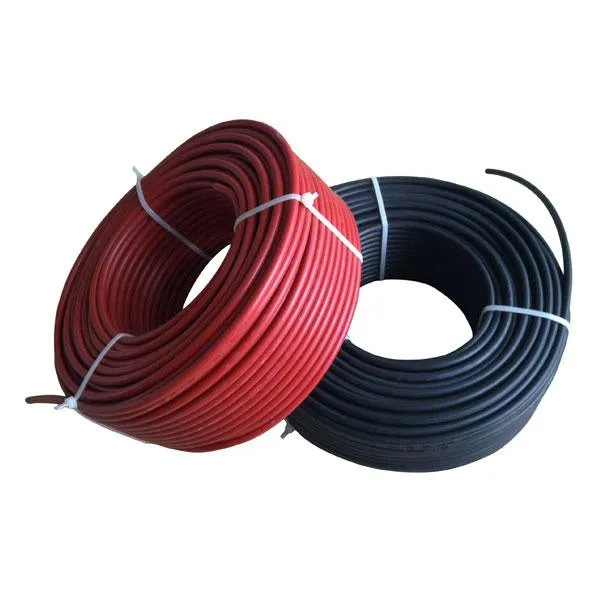

Color |
RED AND BLACK |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Single Package Size |
XX cm |
Double insulation, electron-beam cross-linked cables for photovoltaic power station.
1. Core Conductor: Tinned annealed copper (stranded core)
2. Popular sizes: 2core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm²
3. Cable conductor: stranded tinned annealed copper
4. Insulation: electron-beam cross-linked Polyolefin(XLPE)/XLPO
5. Jacket:XLPE/ PE/XLPO (black, red)
6. Other specs:
a)Temperature rating: -40C up to +120C
b). Fire performance: IEC 60332-1, UL1581 VW-1
c). Approval: TUV Rheinland 2PfG 1169 1.5mm² to 50mm²
d). High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant
e). Voltage suitable: 600-1000V
With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc
Right now our solar cables are welcomed SUPER HOT at UK, Belgium, Germany, Huangrey, France, Australia, India etc
Solar system industry is very hot recently and more in the future, now almost all the countries goverment are now encouraging and supporting this industry to reduce CO2 releasing
|
Section Area |
Insulation Thickness |
Sheath Thickness |
External Diameter |
Current Carring Capacity |
|
2x1.5 |
0.7 |
0.8 |
4.9x10 |
30 |
|
2x2.5 |
0.7 |
0.8 |
5.5x11.5 |
41 |
|
2x4 |
0.7 |
0.8 |
6.1x12.5 |
55 |
|
2x6 |
0.8 |
0.9 |
7.2x14.5 |
70 |
|
2x10 |
0.9 |
1.1 |
9.0x18.5 |
98 |
|
2x16 |
1.1 |
1.1 |
10.2x20.5 |
132 |
