4-120mm² XLPO DC Solar Cable

Key Attributes

Packaging and Delivery

Supply Capacity

Product descriptions

Application

For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter Gable and flat roof photovoltaic systems Photovoltaic plants and solar parks Flexible or building-integrated PV systems including connecting photovoltaic power supply systems & can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. from - 40 deg.C to 120 deg.C maximum and Ozone & UV Resistant and full protection against Ultra Violet rays.

 Product Features

Weather/UV-resistant acc. to HD 605/A1

Ozone-resistant according to EN 50396

Halogen-free and flame-retardant

Good notch and abrasion resistance

XLS-R = X-Linked Standard - Reduced Proven electron beam cross-linked quality

Cold Flexibility

Long Life about > 25 years

Suitable to common connector type

 Standard to follow

TUV 2 PFG 1169 / 08.2007 & VDE E PV 01

Conductor

Tinned fine copper strands, according to IEC 60228, class 5

Insulation

Cross Linked polyolefin-copolymer Double Insulated Temperature resistant and halogen free , Flame Retardant, Low Smoke.

Color of Insulation

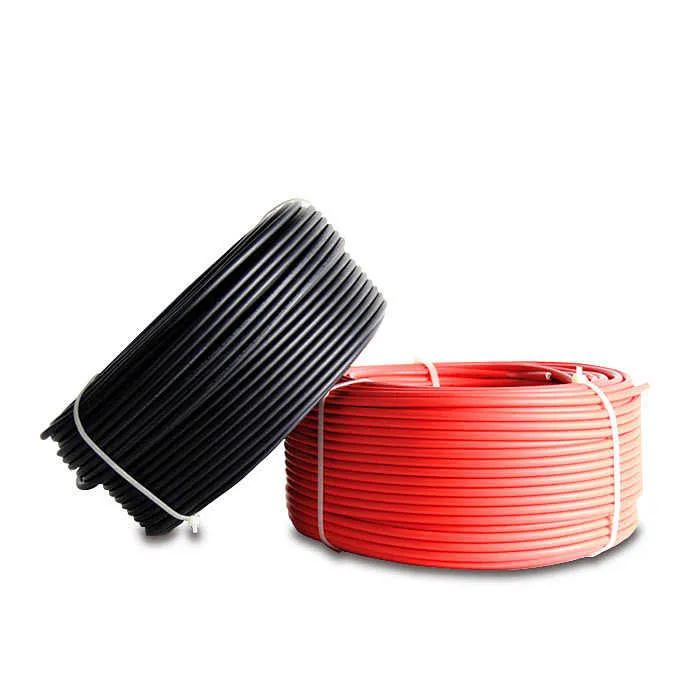

Black, red, blue

Outer Sheath

Flame retardant and halogen free Co-Polymer, electron beam cross linked, Weather proof & UV Resistant. Color – Black

Electrical Properties

Nominal voltage U0/U acc. VDE AC 600/1000 V - 720/1200 V & DC 900/1800 V

Max. permitted DC voltage 1.8 kV (Conductor/Conductor. non earthed system

Working voltage : According to. TÜV 2 PfG 1169 DC 1000 V

Test voltage AC 6,5 kV for 5 min & DC 15 KV.

Voltage resistance tests according to EN 50395

Insulation Resistance - 1000 m-OHM / km minimum

Thermal Properties

Ambient temperature: -40 °C to 90°C (25 year life)

Conductor temperature: 120 °C max.

Short Circuit temperature: 200 °C for 5 sec.

Thermal Endurance Test: According to EN 60216-2

High Temperature Pressure: Test according to EN 60811-3-1

Damp – Heat Test: According to EN 60068-2-78

1000 hrs. at 90°C with 85% humidity

 Mechanical Properties

Minimum Bending Radius: 4 to 5 x Outer Diameter

Dynamic Penetration: According to requirement of Cables for PV systems 2 Pfg 1169/08.2007 Annex F

Notch Propagation: According to 2 Pfg 1169/08.2007 Annex G

Tensile Strength: 15 N/mm2 for insulation and 12.5 N/mm2 for sheathing – according to EN60811

Elongation of Insulation and sheathing: 125% – according to EN60811

Shore Hardness 85 According to DIN EN 53505

Shrinkage: 2% at 120°C according to EN 60811-1-3

 EU Directives

The cables are RoHS (Restriction of certain Hazardous Substances) compliant as per EU Directives 2002/95/EC

 Chemical Characteristics

Mineral Oil Resistance: according to EN 60811-2-1 & vde 0473-811-2-1

Ozone Resistance: according to EN 50396 part 8.1.3 Method B

Weathering-UV Resistance: according to HD 605/A1 or DIN 53367

Ammonia resistant : 30 days in saturated ammonia atmosphere (internal testing)

Very good resistance to oil and chemicals

High wear and robust, abrasion resistant

Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)

 Fire Performance

Flame retardant according to IEC 60332-1-2 & VDE 0482 Part 332-1-2

Low smoke emission < 20% as per ASTM D-2843 , BS EN 50268 (IEC 61034) , VDE 0482 Part 266-2-5

Halogen free according to EN 50267-2-1/-2, IEC 60754-2

Acid gas emission not more than 0.5% as per IEC 60754-1 pH minimum 4.3 as per IEC 60754-2 conductivity maximum 10 as per IEC 60754-2

Toxicity according to EN 50305, ITC- index<3

Flame Propagation - BS EN 50265, EN50266(IEC 60332)

Light Transmission - < 60 % As per DIN EN 50268-2

Corrositivity - according to DIN EN 50267-2-2

 Weather Resistance
