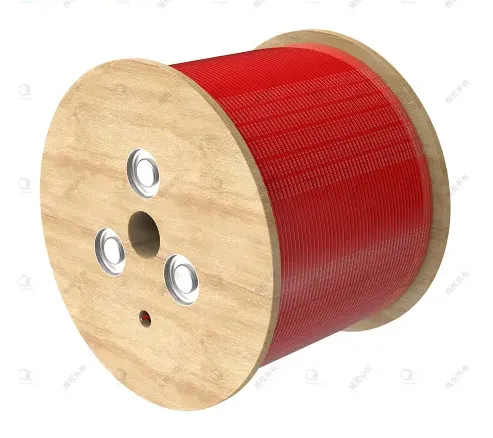

DC 1500V Solar Cable (4mm² - 120mm²)

DC 1500V 4mm2 6mm2 50mm2 120mm2 Solar Cable with TUV Certificate

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product Name	50mm$^2$ DC cable
Model Number	solar cable
Brand Name	JYXL
Place of Origin	Henan, China
Type	Low Voltage
Application	Construction
Standard	EN50618
Certificate	TUV certificate
Characteristic	High Heat Water Resistant
Conductor Material	Copper
Conductor	tinned flexible copper wire
Insulation Material / Insulation	XLPE / XLPO
Jacket	NO
Voltage	AC 0.6/1KV, DC 1.5KV
Cross Section	1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2, 16mm2
Sample	Free

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	Standard export drum for 50mm2 DC cable
Port of Dispatch	Tianjin port, Qing dao port, Shang hai port

Supply Capacity

Attribute	Detail
Supply Ability	500 kilometers per Month 50mm2 DC Cable

Product descriptions

Applications
For use in solar power applications
Rated 90℃ for exposed or concealed wiring in wet or dry locations
Rated for direct burial conduit
CONST RUCTION DETAILS
Stranded copper conductors with single layer
Bare or tinned conductors
XLPE insulation
-40C to +90C
Sunlight resistant
RoHS compliant
Direct burial
SPECIFICATIONS
Copper Photovoltaic Wire meets the requirements of the following:
UL Subject 4703 for TYPE PV
UL 44 for TYPE RHW-2
UL 854 for TYPE USE-2
Options
600V /1000V configurations available upon request
Cable tray use
