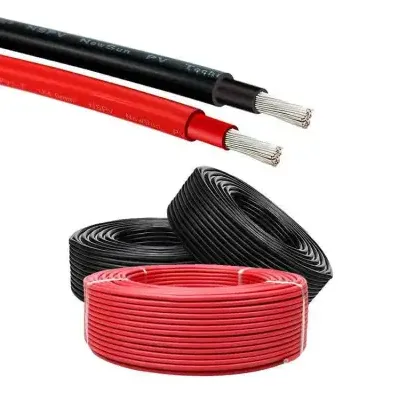

Photovoltaic Solar Cable (ZZ-F/H1Z2Z2-K)

Zz-F/H1z2z2-K/PV1-F Photovoltaic Solar Cable PV Cable

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product Name	H1Z2Z2-K PV Solar Cable
Brand Name	JYXL
Place of Origin	Henan, China
Type	Low Voltage
Application	construction, industrial, power station
Standard	EN50618
Certificate	UL, TUV, KEMA, BV, PSB, SABS, ABS
Voltage	1500V
Conductor Material	Copper, Aluminum, Copper-clad Aluminum
Conductor	Copper
Core Number	1
Cross section	1.5mm2--35mm2
Insulation Material / Insulation	XLPO
Jacket / Sheath	XLPO

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	Standard Exporting Drum or as requesting
Port of Dispatch	Tianjin port, Qingdao port, Shanghai port
Single Package Size	10X10X5 cm
Single Gross Weight	2.000 kg

Supply Capacity

Attribute	Detail
Supply Ability	1,000,000 meters per Month

Product Description

Applications:
H1Z2Z2-K Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables have an operating temperature range of -40oC to +90oC.

Standard

EN 50618

Cable Construction

Conductor: Tinned copper
Insulation: XLPO
Jacket: XLPO

Cable Parameters

NO. OF CORES ×NOMINAL CROSS SECTION	NO. OF STRANDING	NOMINAL CONDUCTOR DIAMETER	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMATER	NOMINAL WEIGHT
NO. ×MM²	-	MM	MM	MM	MM	KG/KM
1×1.5	30/0.25	1.58	1.14	0.82	5.4	52
1×2.5	50/0.25	2.04	1.14	0.82	5.8	67
1×4.0	56/0.30	2.59	1.14	0.82	6.4	87
1×6.0	84/0.30	3.17	1.14	0.82	7.0	113
1×10	78/0.40	4.07	1.52	0.82	8.6	178
1×16	128/0.40	5.22	1.52	0.82	9.8	254
1×25	199/0.40	6.51	1.52	0.82	11.1	363
1×35	279/0.40	7.71	1.52	0.82	12.3	473
