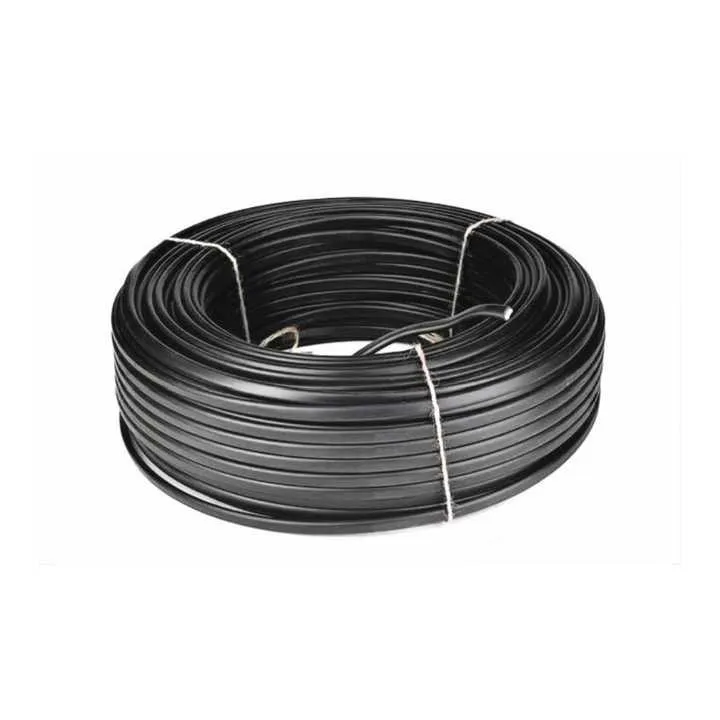

Black Tinned Copper Solar Cable 35mm² (H1Z2Z2-K, TUV EN50618)

TUV EN50618 Solar Cable 35mm2 H1Z2Z2-K Black Tinned Copper Conductor XL Insulation and Sheath 1000m/reel

Send Email Get Best Price

Key attributes

Industry-specific attributes
Insulation Material	XLPO
Application	Photovoltaic (PV) Solar Power
Conductor Material	Copper or Aluminum
Jacket	Low smoke halogen free XLPE
Other attributes
Place of Origin	Henan, China
Brand Name	JYXL
Model Number	PV1-F, PV Cable
Type	LOW VOLTAGE
Product name	Photovoltaic Wire
Common type	H1Z2Z2-K
Standard	EN50618
Number of cores	Single Core
Certificate	TUV Double certification
Common Size	4, 6, 10, 16, 25, 35, 50 sqmm
Common structure	CU(AL)/XLPO/XLPO
temperature	-40°C~+90°C (90, 105, 125 or 150°C dry and 90°C wet)
Conductor	Flexible Tinned Copper, Bare Copper, Aluminum alloy Conductor
Voltage	AC 0.6/1 kV DC 0.9/1.5kV Max. 1.8 kV DC
Packaging and delivery
Packaging Details	Packing in wooden drum or according to customer demand
Port	Tianjin port, Qingdao port, Shanghai port or other port
Supply Ability
Supply Ability	10000 Kilometer/Kilometers per Month photovoltaic wire cable

PV Cable-H1Z2Z2-K

TUV EN50618 Solar cable 35mm2 H1Z2Z2-K black tinned copper conductor XL insulation and sheath 1000m/reel

This cable is used for interconnecting power supplies within renewable energy photovoltaic

systems, such as solar panel arrays in solar energy farms. These solar panel cables are suitable

for fixed installations, both internal and external, and within conduits or systems.

1. Conductor: Tinned soft copper wires, class 5, according to EN60228;

2. Insulation: Cross-linked polyolefin, low smoke zero halogen(LSZH)

3. Jacket: Cross-linked polyolefin, low smoke zero halogen(LSZH)

Max. conductor temperature: 120℃

Ambient temperature: -40 to +90.

Standards:

EN50618

DC 1.5KV, AC1.0/1.0KV

Strong UV resistanceFlame retardant

Low smoke halogen free LSZH

Lift time at least 25 years

AC 6.5KV for 5min, not break down

Conductor Size (mm2)	Inner Insulation	Outer Insulation	Approx. Nominal Overall Diameter
	Nominal Thickness	Nominal Thickness	Approx. Nominal Overall Diameter
	(mm)	(mm)	(mm)
1x4	0.7	0.8	5.6
1x6	0.7	0.8	6.3
1x10	0.7	0.8	7.4
1x16	0.7	0.9	8.6
1x25	0.9	1	11.1
1x35	0.9	1.1	13.0
1x50	1.0	1.2	15.1
1x70	1.1	1.2	17.2
1x95	1.1	1.3	18.6
1x120	1.2	1.3	20.6
1x150	1.4	1.4	23.4
1x185	1.6	1.6	25.5
1x240	1.7	1.7	28.7
