DC Solar Cable (4-25mm²) - TUV Certified PV Wire

DC Cable 4mm 6mm 10mm 16mm 25mm Solar PV Wire Solar Cable TUV Certificate

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes
Insulation Material	XLPE
Application	Underground
Conductor Material	Copper
Jacket	PVC
Other attributes
Place of Origin	Henan, China
Brand Name	JYXL
Model Number	Solar cable
Type	LOW VOLTAGE
Standard	EN50618
Core	Single Conductor
Conductor	Tinned Copper
Cross section	1.5-240mm2
Rated voltage	DC 1500V
Certificate	TUV
Sheath	XLPO
Application	PV power dc, ac system
Insulation	Halogen-free
Packaging and delivery
Packaging Details	Standard export drums or soft package
Port	Tianjin port, Qingdao port, Shanghai port, Guangzhou port
Selling units	Single item
Single package size	30X30X10 cm
Single gross weight	2.000 kg
Supply Ability
Supply Ability	1000000 Meter/Meters per Month

Product Description

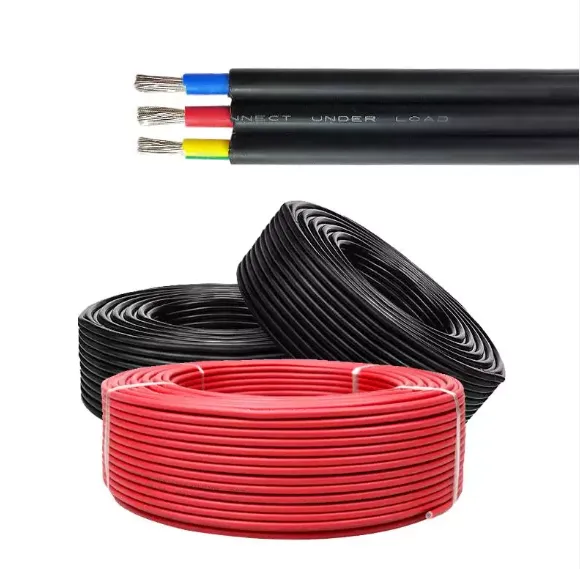

Tinned Copper Conductor Crosslinked LSZH insulation and jacket. DC 1.5kV

Single core cables, for photovoltaic and solar system use, LSZH insulated and sheathed flame retardant, halogen free and low smoke flexible cables for fixed laying, lifetime testing 20.000 h.120°

1. Flexible tin plated copper class 5 EN 60228

2. Crosslinked LSZH

3. Crosslinked LSZH

Application

Cable suitable for the interconnection of the various elements of photovoltaic systems. Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems. High resistance against Ozone

U.V rays, oils, moisture and weather inclemencies. Suitable for use at an ambient temperature up to 90°C (120°C overload), thanks to the use of materials with temperature-index of 120°C, determined according to Norm IEC 60216 (20,000 h and 50% of residual elongation). Estimated lifetime of these cables is at least 27 years.

Insulation colour: Black
Sheath colour: Black/Red
Operating temperature: -40°C - 90°C on the conductor
Overload temperature: 120°C on the conductor
Expected lifetime: >25 years
Rated voltage: Uo/U AC 0.6/1 kV DC 1,5 kV
Max temperature in case of short circuit: 250°C on the condu ctor (max duration 5 seconds)
Min bending radius: 4 x outer diameter of the cable
Max installation temperature: -25°C

Data sheet

Size	Max. of copper wires	Insulation thickness	Sheath thickness	Max.Outer diameter	Max cond. Resistance at 20oC	Approx.. cable weight
mm2	mm	mm	mm	mm	Ohms/km	Kg/km
1.5	0.31	0.7	0.8	5.4	13.70	37
2.5	0.31	0.7	0.8	5.9	8.21	49
4	0.31	0.7	0.8	6.6	5.09	67
6	0.31	0.7	0.8	7.4	3.39	90
10	0.41	0.7	0.8	8.8	1.95	134
16	0.41	0.7	0.9	10.1	1.24	199
25	0.41	0.9	1	12.5	0.795	316
35	0.41	0.9	1.1	14.0	0.565	428
50	0.41	1.0	1.2	16.3	0.393	594
70	0.51	1.1	1.2	18.7	0.277	803
95	0.51	1.1	1.3	20.8	0.210	1049
120	0.51	1.2	1.3	22.8	0.164	1304
150	0.51	1.4	1.4	25.5	0.132	1634
185	0.51	1.6	1.6	28.5	0.108	2012
240	0.51	1.7	1.7	32.1	0.0817	2575
