Home / Product / Solar Cable / 2000V Solar PV Cable (Aluminum, 240-400mm²)

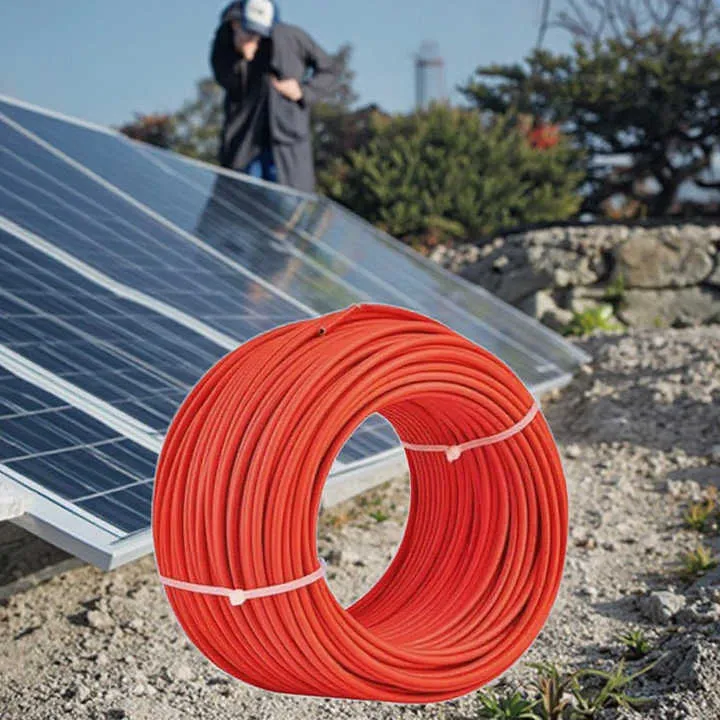

2000V 240mm2 300mm2 400mm2 Photovoltaic Solar Aluminum Electric Power Wire PV Cable
|
Industry-specific attributes |
|
|
Insulation Material |
XLPE |
|
Application |
Construction |
|
Conductor Material |
Copper |
|
Jacket |
NO |
|
Other attributes |
|
|
Place of Origin |
Henan, China |
|
Brand Name |
JIANYUN |
|
Model Number |
solar cable |
|
Type |
LOW VOLTAGE |
|
Product name |
Solar Cable |
|
Voltage |
AC1000V DC1500V |
|
Cross Section |
95mm2 120mm2 150mm2 185mm2 |
|
Conductor |
Tinned flexible copper wire or aluminum conductor |
|
Insulation |
XLPO |
|
Certificate |
TUV certificate |
|
Standard |
EN50618 |
|
Characteristic |
High Heat Water Resistant |
|
Sample |
Free |
|
Packaging and delivery |
|
|
Packaging Details |
Standard export drum for solar cable |
|
Port |
Tianjin port, Qing dao port, Shang hai port |
|
Supply Ability |
|
|
Supply Ability |
500 Kilometer/Kilometers per Month solar cable |
2000V 240mm2 300mm2 400mm2 photovoltaic solar aluminum electric power wire PV cable
For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter Gable and flat roof photovoltaic systems Photovoltaic plants and solar parks Flexible or building-integrated PV systems including connecting photovoltaic power supply systems & can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. from - 40 deg.C to 120 deg.C maximum and Ozone & UV Resistant and full protection against Ultra Violet rays.
Weather/UV-resistant acc. to HD 605/A1
Ozone-resistant according to EN 50396
Halogen-free and flame-retardant
Good notch and abrasion resistance
XLS-R = X-Linked Standard - Reduced Proven electron beam cross-linked quality
Cold Flexibility
Long Life about > 25 years
Suitable to common connector type
TUV 2 PFG 1169 / 08.2007 & VDE E PV 01
Conductor
Tinned fine copper strands, according to IEC 60228, class 5
Insulation
Cross Linked polyolefin-copolymer Double Insulated Temperature resistant and halogen free , Flame Retardant, Low Smoke.
Color of Insulation
Black, red, blue
Outer Sheath
Flame retardant and halogen free Co-Polymer, electron beam cross linked, Weather proof & UV Resistant. Color – Black
Nominal voltage U0/U acc. VDE AC 600/1000 V - 720/1200 V & DC 900/1800 V
Max. permitted DC voltage 1.8 kV (Conductor/Conductor. non earthed system
Working voltage : According to. TÜV 2 PfG 1169 DC 1000 V
Test voltage AC 6,5 kV for 5 min & DC 15 KV.
Voltage resistance tests according to EN 50395
Insulation Resistance - 1000 m-OHM / km minimum
Ambient temperature: -40 °C to 90°C (25 year life)
Conductor temperature: 120 °C max.
Short Circuit temperature: 200 °C for 5 sec.
Thermal Endurance Test: According to EN 60216-2
High Temperature Pressure: Test according to EN 60811-3-1
Damp – Heat Test: According to EN 60068-2-78
1000 hrs. at 90°C with 85% humidity
Minimum Bending Radius: 4 to 5 x Outer Diameter
Dynamic Penetration: According to requirement of Cables for PV systems 2 Pfg 1169/08.2007 Annex F
Notch Propagation: According to 2 Pfg 1169/08.2007 Annex G
Tensile Strength: 15 N/mm2 for insulation and 12.5 N/mm2 for sheathing – according to EN60811
Elongation of Insulation and sheathing: 125% – according to EN60811
Shore Hardness 85 According to DIN EN 53505
Shrinkage: 2% at 120°C according to EN 60811-1-3
The cables are RoHS (Restriction of certain Hazardous Substances) compliant as per EU Directives 2002/95/EC
Mineral Oil Resistance: according to EN 60811-2-1 & vde 0473-811-2-1
Ozone Resistance: according to EN 50396 part 8.1.3 Method B
Weathering-UV Resistance: according to HD 605/A1 or DIN 53367
Ammonia resistant : 30 days in saturated ammonia atmosphere (internal testing)
Very good resistance to oil and chemicals
High wear and robust, abrasion resistant
Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)
Flame retardant according to IEC 60332-1-2 & VDE 0482 Part 332-1-2
Low smoke emission < 20% as per ASTM D-2843 , BS EN 50268 (IEC 61034) , VDE 0482 Part 266-2-5
Halogen free according to EN 50267-2-1/-2, IEC 60754-2
Acid gas emission not more than 0.5% as per IEC 60754-1 pH minimum 4.3 as per IEC 60754-2 conductivity maximum 10 as per IEC 60754-2
Toxicity according to EN 50305, ITC- index<3
Flame Propagation - BS EN 50265, EN50266(IEC 60332)
Light Transmission - < 60 % As per DIN EN 50268-2
Corrositivity - according to DIN EN 50267-2-2
Ozone resistance according to DIN EN 50396 test type B, HD 22.2 test type B UV resistance according to UL 1581 (Xeno-Test), ISO 4892-2 (Method A) and HD 506/A1-2.4.20 Absorption of water (gravimetric) according to DIN VDE 0473-811- 1-3, DIN EN 60811-1-3
