Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / 4/6mm² Solar PV Cables

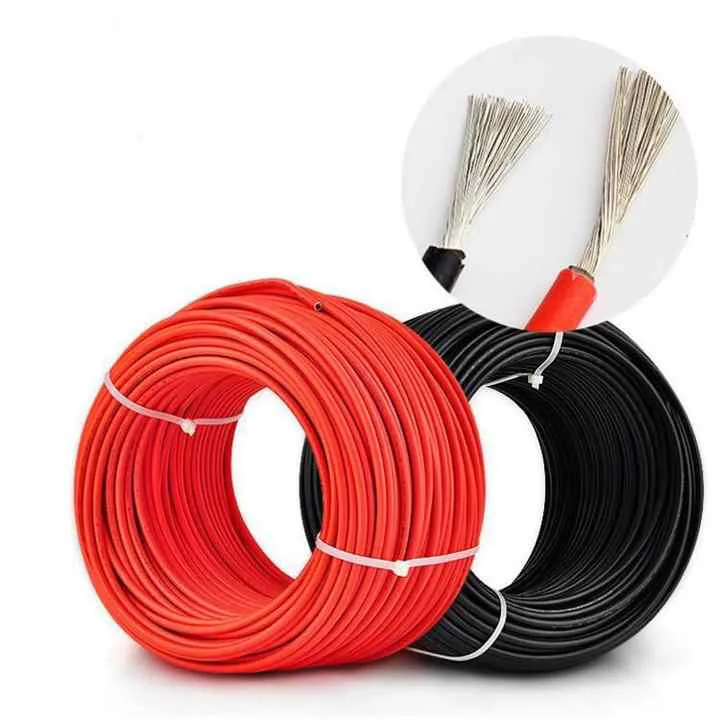

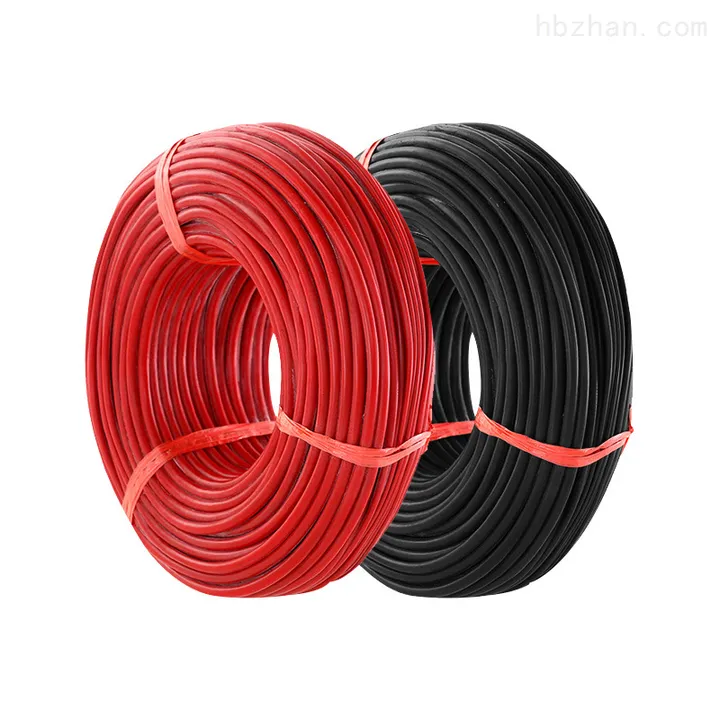

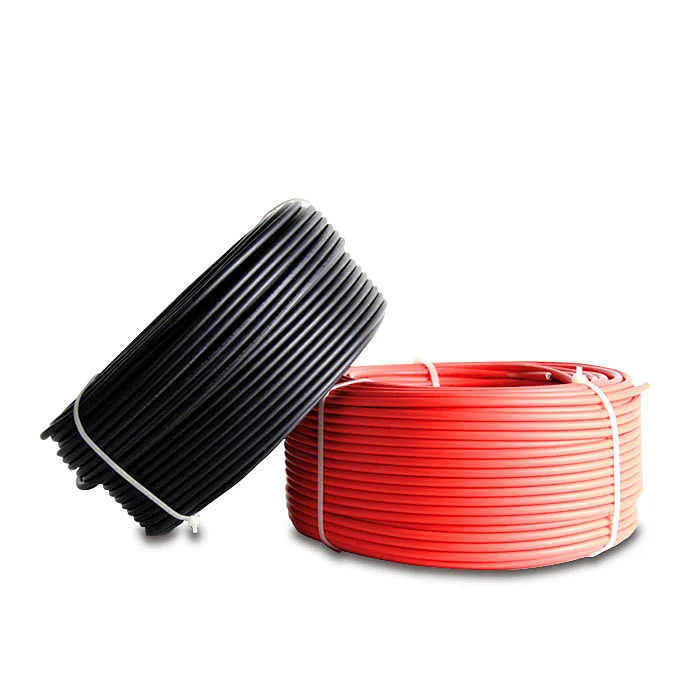

Solar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic
|
Industry-specific attributes |
|
|
Insulation Material |
XLPO |
|
Application |
Photovoltaic (PV) Solar Power |
|
Conductor Material |
Copper or Aluminum |
|
Jacket |
Low smoke halogen free XLPE |
|
Other attributes |
|
|
Place of Origin |
Henan, China |
|
Brand Name |
JYXL |
|
Model Number |
PV1-F, PV Cable |
|
Type |
LOW VOLTAGE |
|
Product name |
Photovoltaic Wire |
|
Common type |
PV, PV1-F, H1Z2Z2-K |
|
Standard |
UL4703 & EN50618 & TUV 2PfG/1169 |
|
Number of cores |
Single Core or Double Core |
|
Certificate |
UL, TUV Double certification |
|
Common Size |
4, 6, 10, 16 sqmm |
|
Common structure |
CU(AL)/XLPO, CU(AL)/XLPO/XLPO |
|
Temperature |
-40°C~+90°C (90, 105, 125 or 150°C dry and 90°C wet) |
|
Conductor |
Flexible Tinned Copper, Bare Copper, Aluminum alloy Conductor |
|
Voltage |
AC 0.6/1 kV DC 0.9/1.5kV Max. 1.8 kV DC |
|
Packaging and delivery |
|
|
Packaging Details |

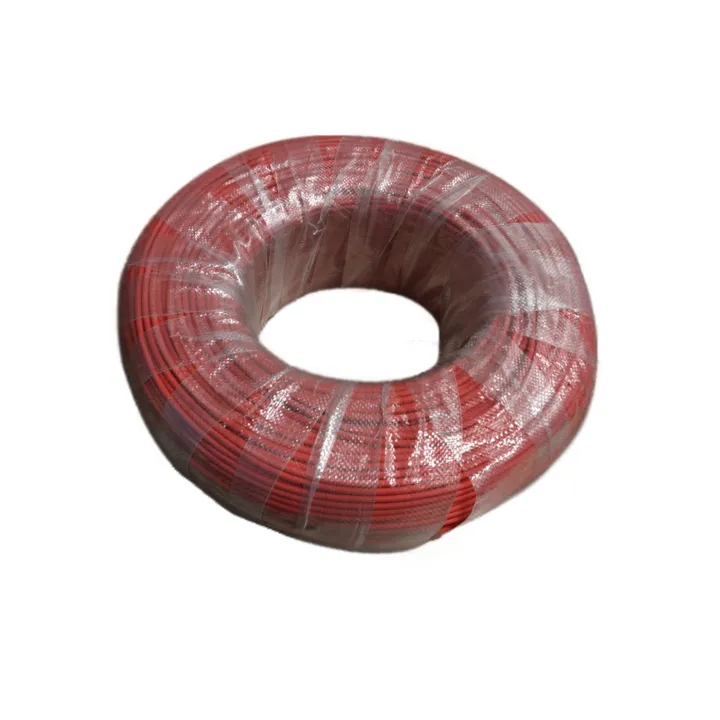

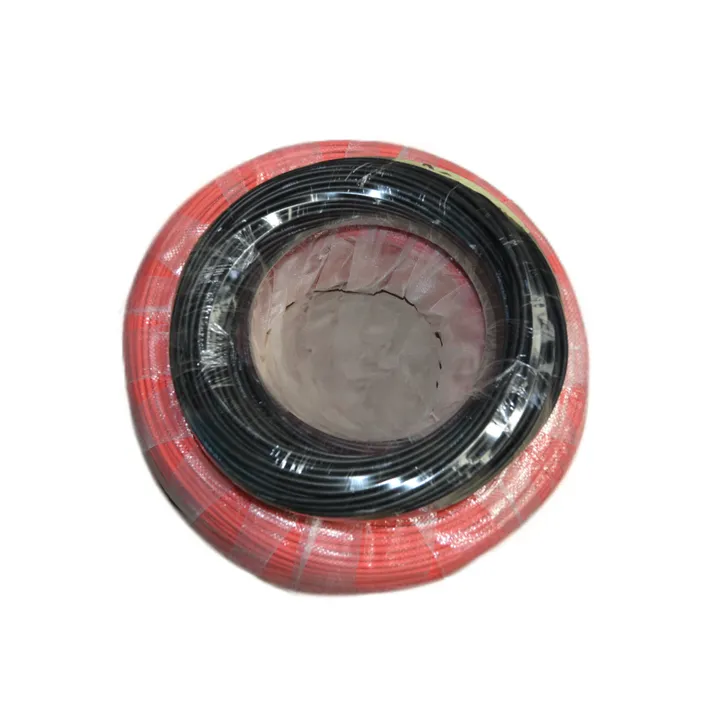

Packing in wooden drum or according to customer demand |
|
Port |
Tianjin port, Qingdao port, Shanghai port or other port |
|
Supply Ability |
|
|
Supply Ability |
10000 Kilometer/Kilometers per Month photovoltaic wire cable |
For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter Gable and flat roof photovoltaic systems Photovoltaic plants and solar parks Flexible or building-integrated PV systems including connecting photovoltaic power supply systems & can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. from - 40 deg.C to 120 deg.C maximum and Ozone & UV Resistant and full protection against Ultra Violet rays.
Weather/UV-resistant acc. to HD 605/A1
Ozone-resistant according to EN 50396
Halogen-free and flame-retardant
Good notch and abrasion resistance
XLS-R = X-Linked Standard - Reduced Proven electron beam cross-linked quality
Cold Flexibility
Long Life about > 25 years
Suitable to common connector type
TUV 2 PFG 1169 / 08.2007 & VDE E PV 01
Conductor
Tinned fine copper strands, according to IEC 60228, class 5
Insulation
Cross Linked polyolefin-copolymer Double Insulated Temperature resistant and halogen free , Flame Retardant, Low Smoke.
Color of Insulation
Black, red, blue
Outer Sheath
Flame retardant and halogen free Co-Polymer, electron beam cross linked, Weather proof & UV Resistant. Color – Black
Electrical Properties
Nominal voltage U0/U acc. VDE AC 600/1000 V - 720/1200 V & DC 900/1800 V
Max. permitted DC voltage 1.8 kV (Conductor/Conductor. non earthed system
Working voltage : According to. TÜV 2 PfG 1169 DC 1000 V
Test voltage AC 6,5 kV for 5 min & DC 15 KV.
Voltage resistance tests according to EN 50395
Insulation Resistance - 1000 m-OHM / km minimum
Ambient temperature: -40 °C to 90°C (25 year life)
Conductor temperature: 120 °C max.
Short Circuit temperature: 200 °C for 5 sec.
Thermal Endurance Test: According to EN 60216-2
High Temperature Pressure: Test according to EN 60811-3-1
Damp – Heat Test: According to EN 60068-2-78
1000 hrs. at 90°C with 85% humidity
Minimum Bending Radius: 4 to 5 x Outer Diameter
Dynamic Penetration: According to requirement of Cables for PV systems 2 Pfg 1169/08.2007 Annex F
Notch Propagation: According to 2 Pfg 1169/08.2007 Annex G
Tensile Strength: 15 N/mm2 for insulation and 12.5 N/mm2 for sheathing – according to EN60811
Elongation of Insulation and sheathing: 125% – according to EN60811
Shore Hardness 85 According to DIN EN 53505
Shrinkage: 2% at 120°C according to EN 60811-1-3
EU Directives
The cables are RoHS (Restriction of certain Hazardous Substances) compliant as per EU Directives 2002/95/EC
Mineral Oil Resistance: according to EN 60811-2-1 & vde 0473-811-2-1
Ozone Resistance: according to EN 50396 part 8.1.3 Method B
Weathering-UV Resistance: according to HD 605/A1 or DIN 53367
Ammonia resistant : 30 days in saturated ammonia atmosphere (internal testing)
Very good resistance to oil and chemicals
High wear and robust, abrasion resistant
Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)
Flame retardant according to IEC 60332-1-2 & VDE 0482 Part 332-1-2
Low smoke emission < 20% as per ASTM D-2843 , BS EN 50268 (IEC 61034) , VDE 0482 Part 266-2-5
Halogen free according to EN 50267-2-1/-2, IEC 60754-2
Acid gas emission not more than 0.5% as per IEC 60754-1 pH minimum 4.3 as per IEC 60754-2 conductivity maximum 10 as per IEC 60754-2
Toxicity according to EN 50305, ITC- index<3
Flame Propagation - BS EN 50265, EN50266(IEC 60332)
Light Transmission - < 60 % As per DIN EN 50268-2
Corrositivity - according to DIN EN 50267-2-2
Ozone resistance according to DIN EN 50396 test type B, HD 22.2 test type B UV resistance according to UL 1581 (Xeno-Test), ISO 4892-2 (Method A) and HD 506/A1-2.4.20 Absorption of water (gravimetric) according to DIN VDE 0473-811- 1-3, DIN EN 60811-1-3
