Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / TUV H1Z2Z2-K DC 1.5kV Solar Cable (120/185mm²)

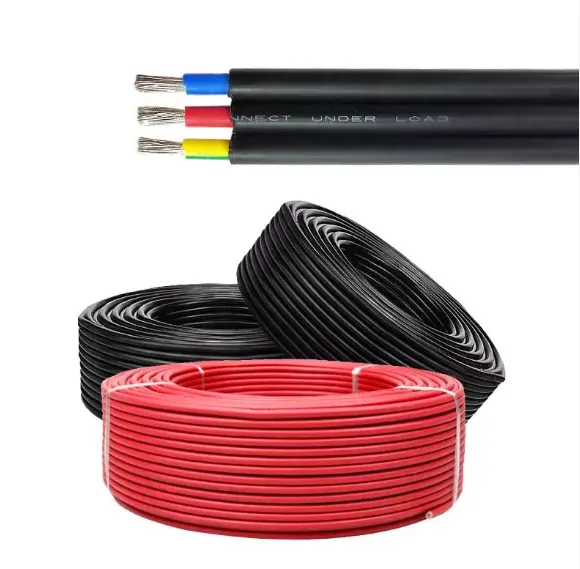

TUV Certification H1Z2Z2-K DC 1.5kv PV Solar Cable 185MM2 120MM2
|
Industry-specific attributes |
|
|
Application |
PV Solar |
|
Conductor Material |
Copper |
|
Conductor Type |
Stranded |
|
Insulation Material |
XLPE/XLPO |
|
Other attributes |
|
|
Place of Origin |
Henan, China |
|
Brand Name |
JYXL |
|
Model Number |
PV1-F 1X10mm2 |
|
Type |
Insulated |
|
Conductor Type (Detailed) |
Stranded Tinned copper wire |
|
Product name |
solar PV wire |
|
Rated Voltage |
600V 1000V 2000V |
|
Insulation (Detailed) |
XLPE Insulation |
|
Conductor (Detailed) |
Copper or aluminum alloy wire |
|
Cross-section |
1.5mm2 to 240mm2 |
|
Conductor Construction |
56/0.30mm |
|
Resistance |
5.09 Ω/km (MAX. at 20℃) |
|
Thickness |
0.8mm |
|
Packaging and delivery |
|
|
Packaging Details |
Standard export drum or as your request |
|
Port |
Tianjin port, Qingdao port, Shanghai port |
|
Supply Ability |
|
|
Supply Ability |
500 Kilometer/Kilometers per Month 500mm power cable |
Product Description
