Solar PV Interconnection Cable (12 AWG, 50ft)

Solar Cable 12awg 50feet Per Roll s the Interconnection Wiring of Grounded and Ungrounded Photovoltaic Power Systems

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes
Insulation Material	XLPO
Application	Photovoltaic (PV) Solar Power
Conductor Material	Copper/Aluminum/Tinned Copper
Jacket	XLPO
Other attributes
Place of Origin	Henan, China
Brand Name	JIANYUN
Model Number	PV Solar Cable
Type	LOW VOLTAGE (Insulated)
Product name	Photovoltaic Wire Solar Cable
Common type	PV, PV1-F, H1Z2Z2-K
Standard	UL4703 & EN50618 & TUV 2PfG/1169
Number of cores	Single Core or Double Core
Certificate	UL, TUV Double certification
Common Size	4, 6, 10, 16
Common structure	CU(AL)/XLPO, CU(AL)/XLPO/XLPO
Temperature	-40°C~+90°C (90, 105, 125 or 150°C dry and 90°C wet)
Conductor	Flexible Tinned Copper, Bare Copper, Aluminum alloy Conductor
Voltage	AC 0.6/1 kV DC 0.9/1.5kV Max. 1.8 kV DC
Packaging and delivery
Packaging Details	Packing in wooden drum or According to customer demand
Port of dispatch	Tianjin port, Qingdao port, Shanghai port or other port
Selling Units	Single item
Supply capacity
Supply Ability	10000 kilometers per Month photovoltaic wire cable

Product Description

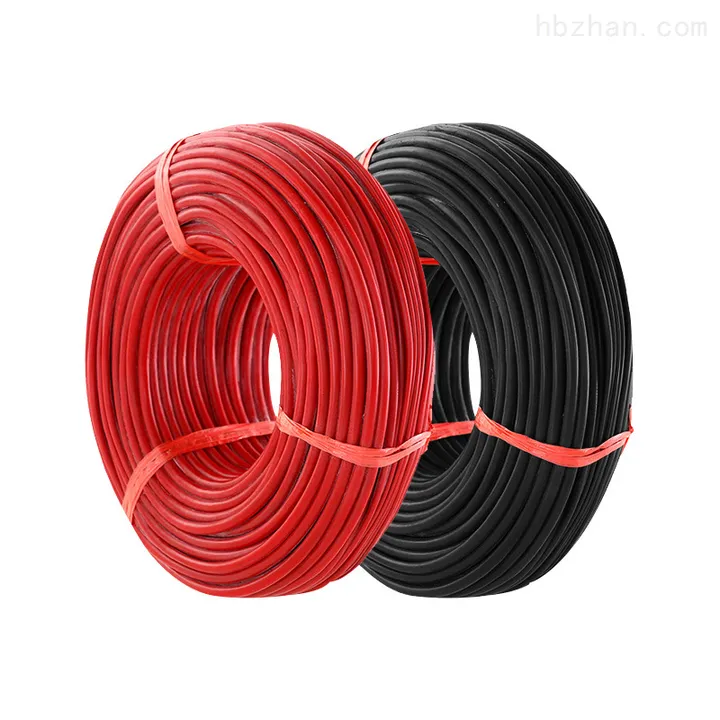

Solar cable PV1-F

Single core flexible cables suited for photovoltaic and solar system with cross-linked polymer insulation and halogen free sheath.

Application

For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter Gable and flat roof photovoltaic systems Photovoltaic plants and solar parks Flexible or building-integrated PV systems including connecting photovoltaic power supply systems & can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. from - 40 deg.C to 120 deg.C maximum and Ozone & UV Resistant and full protection against Ultra Violet rays.

Product Features

Weather/UV-resistant acc. to HD 605/A1

Ozone-resistant according to EN 50396

Halogen-free and flame-retardant

Good notch and abrasion resistance

XLS-R = X-Linked Standard - Reduced Proven electron beam cross-linked quality

Cold Flexibility

Long Life about > 25 years

Suitable to common connector type

Standard to follow

TUV 2 PFG 1169 / 08.2007 & VDE E PV 01

Conductor

Tinned fine copper strands, according to IEC 60228, class 5

Insulation

Cross Linked polyolefin-copolymer Double Insulated Temperature resistant and halogen free , Flame Retardant, Low Smoke.

Color of Insulation

Black, red, blue

Outer Sheath

Flame retardant and halogen free Co-Polymer, electron beam cross linked, Weather proof & UV Resistant. Color – Black

Electrical Properties

Nominal voltage U0/U acc. VDE AC 600/1000 V - 720/1200 V & DC 900/1800 V

Max. permitted DC voltage 1.8 kV (Conductor/Conductor. non earthed system

Working voltage : According to. TÜV 2 PfG 1169 DC 1000 V

Test voltage AC 6,5 kV for 5 min & DC 15 KV.

Voltage resistance tests according to EN 50395

Insulation Resistance - 1000 m-OHM / km minimum

Thermal Properties

Ambient temperature: -40 °C to 90°C (25 year life)

Conductor temperature: 120 °C max.

Short Circuit temperature: 200 °C for 5 sec.

Thermal Endurance Test: According to EN 60216-2

High Temperature Pressure: Test according to EN 60811-3-1

Damp – Heat Test: According to EN 60068-2-78

1000 hrs. at 90°C with 85% humidity
