Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / JYXL 2.5-10mm² Tinned Copper DC Solar Cable

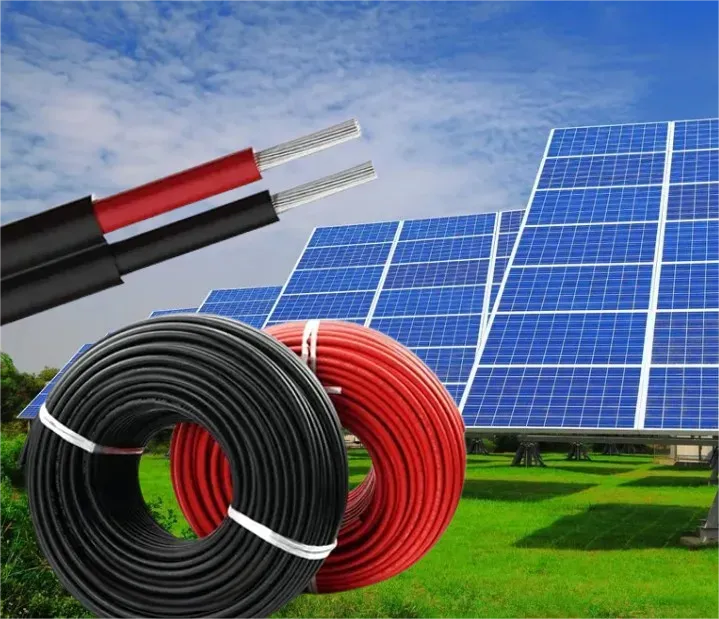

JYXL Brand Solar PV Cable 2.5MM2 4MM2 6MM2 10MM2 DC Power Solar PV Cable Tinned Copper Conductor Photovoltaic Cable
|
Insulation Material |
XLPO |
|
Application |
Industrial |
|
Conductor Material |
Copper |
|
Jacket |
xlpe |
|
Other attributes |
|
|
Place of Origin |
Henan, China |
|
Brand Name |
JYXL |
|
Model Number |
Solar Cable |
|
Type |
LOW VOLTAGE |
|
Size |
single core |
|
Product name |
DC Solar Cable |
|
Color |
Black Red |
|
Insulation |
XLPO Insulation |
|
Voltage |
AC1000V DC 1500V |
|
Core |
Single Core |
|
Certificate |
ISO9001/CCC |
|
Conductor |
Tinned Copper |
|
Material |
Tinned Copper+XLPO |
|
MOQ |
500m |
|
Hot Sale Size |
4mm/6mm/10mm Solar Cable |
Solar Cable Structure
1、tinned copper wire
2、halogen free insulation
3、halogen free sheath
|
No. Of cores x Construction |
Conductor |
Outer Diameter |
Resistance Max.(Ω/km) |
Current Aarring Capacity |
|
1*1.5 |
30/0.25 |
4.90 |
13.30 |
30 |
|
1.2.5 |
50/0.25 |
5.45 |
7.89 |
41 |
|
1*4 |
56/0.3 |
6.10 |
4.75 |
50 |
|
1.6 |
84/0.3 |
7.20 |
3.39 |
70 |
|
1*10 |
142/0.3 |
9.00 |
1.95 |
98 |
|
1*16 |
228/0.3 |
10.20 |
1.24 |
132 |
|
1*25 |
361/0.3 |
12.00 |
0.795 |
176 |
|
1*35 |
525/0.3 |
13.8 |
0.565 |
218 |
|
1*50 |
720/0.3 |
14.8 |
0.393 |
280 |
|
1*70 |
988/0.3 |
16.9 |
0.277 |
350 |
|
1*95 |
1349/0.3 |
18.7 |
0.21 |
410 |
|
1*120 |
1691/0.3 |
20.7 |
0.164 |
480 |
