Solar cables are an essential component of solar photovoltaic (PV) systems, which convert sunlight into electricity. They are specifically designed to handle the demanding conditions found in solar installations, including exposure to UV rays, high temperatures, and moisture.
Home / Product / Solar Cable / JYXL 4mm² Tinned Cu H1Z2Z2-K Solar Cable - Asia Markets

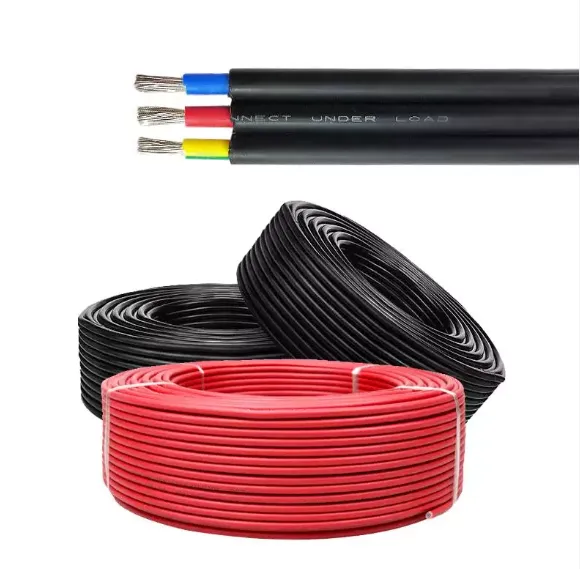

JYXL Brand Tinned Copper Conductor H1Z2Z2-K 4mm2 Solar Panel Cable Photovoltaic Wire Mid Asia Southeast Asia Markets
|
Insulation Material |
XLPO |
|
Application |
Industrial |
|
Conductor Material |
Copper |
|
Jacket |
xlpe |
|
Other attributes |
|
|
Place of Origin |
Henan, China |
|
Brand Name |
JYXL |
|
Model Number |
Solar Cable |
|
Type |
LOW VOLTAGE |
|
Size |
single core |
|
Product name |
DC Solar Cable |
|
Color |
Black Red |
|
Insulation |
XLPO Insulation |
|
Voltage |
AC1000V DC 1500V |
|
Core |
Single Core |
|
Certificate |
ISO9001/CCC |
|
Conductor |
Tinned Copper |
|
Material |
Tinned Copper+XLPO |
|
MOQ |
500m |
|
Hot Sale Size |
4mm/6mm/10mm Solar Cable |
Solar Cable Structure
1、tinned copper wire
2、halogen free insulation
3、halogen free sheath
|
No. Of cores x Construction |
Conductor |
Outer Diameter |
Resistance Max.(Ω/km) |
Current Aarring Capacity |
|
1*1.5 |
30/0.25 |
4.90 |
13.30 |
30 |
|
1.2.5 |
50/0.25 |
5.45 |
7.89 |
41 |
|
1*4 |
56/0.3 |
6.10 |
4.75 |
50 |
|
1.6 |
84/0.3 |
7.20 |
3.39 |
70 |
|
1*10 |
142/0.3 |
9.00 |
1.95 |
98 |
|
1*16 |
228/0.3 |
10.20 |
1.24 |
132 |
|
1*25 |
361/0.3 |
12.00 |
0.795 |
176 |
|
1*35 |
525/0.3 |
13.8 |
0.565 |
218 |
|
1*50 |
720/0.3 |
14.8 |
0.393 |
280 |
|
1*70 |
988/0.3 |
16.9 |
0.277 |
350 |
|
1*95 |
1349/0.3 |
18.7 |
0.21 |
410 |
|
1*120 |
1691/0.3 |
20.7 |
0.164 |
480 |
