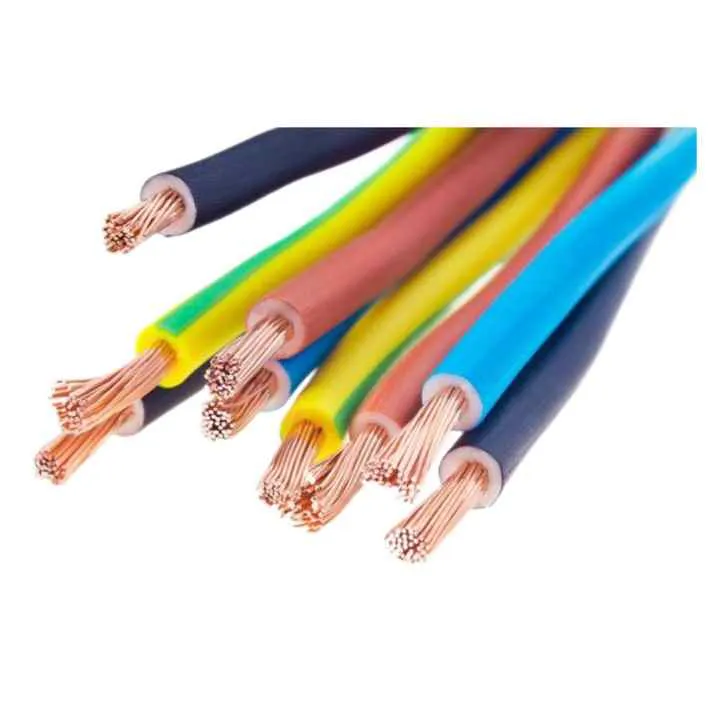

300/500V Copper PVC Sheathed Cable (3x1.5, 3x2.5mm²)

Key Attributes

Packaging and Delivery

Supply Capacity

Product Description

Applications

Installation cable suitable for household and industrial usage. Laid on or under plaster, in walls or concrete, without special mechanical protection, but not in dry or pre-stressed concrete. Suitable for dry, same as damp or wet environment; for internal or external application (only if the cable is protected against direct sunlight).

Standard

HRN HD 21.4 S2
IEC 60227-4
DIN VDE 0250 part 204

Construction

Conductor:

bare copper conductor acc. to IEC 60228 / HD 383 / DIN VDE 0295

 class 1: solid (RE construction)

 class 2: multi wire stranded (RM construction)

Insulation:

PVC compound TI1 acc. to

 DIN VDE 0281 part 1 / HD 21.1 S4

Filler:

 cores enveloped in non-vulcanized rubber or plastic compound

Sheath:

PVC compound TM1 acc. to DIN VDE 0281 part 1 / HD 21.1 S4

sheath colour:

Core identification
Twin : Red and Black
3-core: Red, Yellow and Blue
4-core: Red, Yellow, Blue and Black
5-core: Red, Yellow, Blue, Black and Green

 Technical data

Temperature range:

during installation:

+5 °C up to+70 °C

 fixed installed: -30 °C up to+70 °C

 at short circuit of max. 5 s: up to 160 °C

 ambient temperature at storage: up to 40 °C

 Nominal voltage: Uο/U =  300/500V

 Test voltage: 2000V

 Minimal inner bending radius: 6D

 Behavior in fire: IEC 60332-1
