Home / Product / Electric Wire / H05V2V2-F PVC Electrical Wire (2.5mm, 4mm)

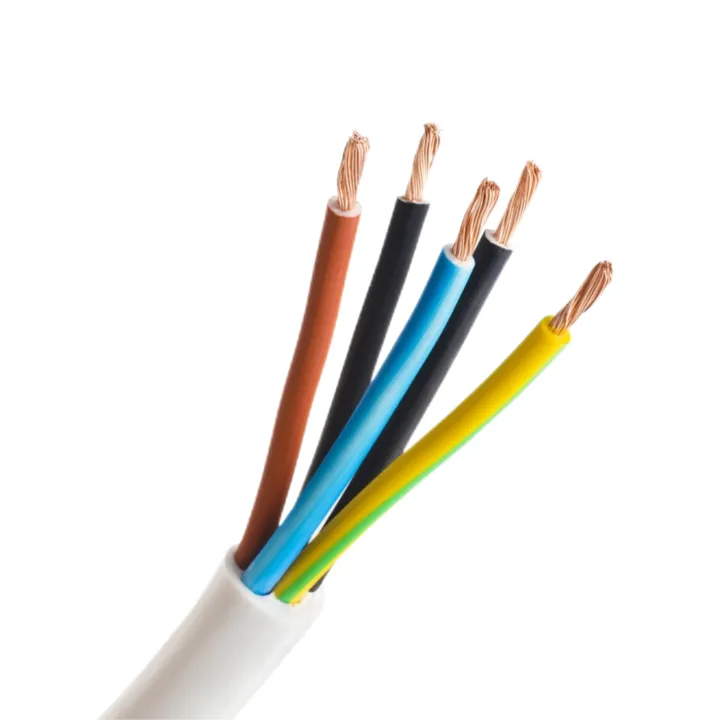

Copper Flexible Wire Multi Core H05V2V2-F PVC Cable 2.5mm 4mm Electrical Wire Price
|
Attribute |
Detail |
|
Name |
electrical wire price |
|
Model Number |
H05V2V2-F |
|
Brand Name |
JYXL |
|
Type |
insulated |
|
CORE |
Multi-core |
|
Conductor Material |
Copper |
|
Conductor Type |
Stranded |
|
Conductor |
DIN EN 60228 class 6 (construction) |
|
Insulation Material |
PVC |
|
Application |
building/indoor |
|
cross section |
0.75mm2 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 |
|
Rated voltage |
300/500 |
|
Color |
AS your request |
|
Standard |
IEC BS CE |
|
Certificate |
ISO9001 CCC CE SABS |
|
Place of Origin |
Henan, China |
|
Price |
Factory price |
|
Delivery |
15 days |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Single package size |
1X1X1 cm |
|
Single gross weight |
1.000 KG |
|
Packaging Details |
soft packing or in reel, 100meters/roll or as your request |
|
Port of dispatch |
Tianjin port, Shanghai port, Qingdao port or others |
Supply Capacity
|
Attribute |
Detail |
|
Supply Ability |
1,000,000 meters per Week |
Copper flexible wire multi core H05V2V2-F PVC cable 2.5mm 4mm electrical wire price
Specifications
1 fine-stranded bare copper, class 6
2. Electric conductivity: 100%
3.0.015-8.0mm wires
4. High conductivity >102%IACS
5. Thermal Class: 130-220C
1)Standard:IEC227-3:1997
2)Voltage: 300/300V 300/500V
3)Application: electric equipment, household...
4)Working temperature:70°C
5)Test voltage:2000V
6)Number of cores:2,3,4,5
7)Minimum bend radius: 3D;5D
8)Reel length :100m
8)Type:2192y
|
metric(mm2) |
insulation |
sheath |
average |
finished product |
20°Cconductor |
|
thickness(mm) |
thickness(mm) |
diameter(mm) |
similar weight(kg/km) |
resistance≤Ω/km |
|
|
60227 IEC 52(RVV), 60227 IEC 56(RVV-90) 300/300V |
|||||
|
2×0.5 |
0.5 |
0.6 |
5.9 |
32.8 |
39 |
|
2×0.75 |
0.5 |
0.6 |
6.3 |
39.2 |
26 |
|
3×0.5 |
0.5 |
0.6 |
6.3 |
42.1 |
39 |
|
3×0.75 |
0.5 |
0.6 |
6.7 |
51.2 |
26 |
|
60227 IEC 53(RVV), 60227 IEC 57(RVV-90) 300/500V |
|||||
|
2×0.75 |
0.6 |
0.8 |
7.2 |
52.3 |
26 |
|
2×1.0 |
0.6 |
0.8 |
7.5 |
59.3 |
19.5 |
|
2×1.5 |
0.7 |
0.8 |
8.6 |
78.7 |
13.3 |
|
2×2.5 |
0.8 |
1 |
10.6 |
119.2 |
7.98 |
|
3×0.75 |
0.6 |
0.8 |
7.6 |
64.8 |
26 |
|
3×1.0 |
0.6 |
0.8 |
8 |
74.3 |
19.5 |
|
3×1.5 |
0.7 |
0.9 |
9.4 |
104.4 |
13.3 |
|
3×2.5 |
0.8 |
1.1 |
11.4 |
157.5 |
7.98 |
|
4×0.75 |
0.6 |
0.8 |
8.3 |
79.4 |
26 |
|
4×1.0 |
0.6 |
0.9 |
9 |
95.5 |
19.5 |
|
4×1.5 |
0.7 |
1 |
10.5 |
134 |
13.3 |
|
4×2.5 |
0.8 |
1.1 |
12.5 |
196 |
7.98 |
|
5×0.75 |
0.6 |
0.9 |
9.3 |
191.6 |
26 |
|
5×1.0 |
0.6 |
0.9 |
9.8 |
114.1 |
19.5 |
|
5×1.5 |
0.7 |
1.1 |
11.6 |
165.8 |
13.3 |
|
5×2.5 |
0.8 |
1.2 |
13.9 |
242.3 |
7.98 |
|
60227 IEC 52(RVV), 60227 IEC 56(RVV-90) 300/300V |
|||||
|
2×0.5 |
0.5 |
0.6 |
5.9 |
32.8 |
39 |
|
2×0.75 |
0.5 |
0.6 |
6.3 |
39.2 |
26 |
|
3×0.5 |
0.5 |
0.6 |
6.3 |
42.1 |
39 |
|
3×0.75 |
0.5 |
0.6 |
6.7 |
51.2 |
26 |
