High Quality PVC Earthing Cable (120mm)

Direct Factory Price High Quality 100% 120mm Pvc Insulated Earthing Copper Cable

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product name	earth cable
product type	earth cable
Model Number	earth cable
Brand Name	JYXL
Type	insulated, Low Voltage
Application	indoor, building, housing, lighting
usage	indoor, housing, lighting
Conductor Material	copper or aluminum
Conductor Type	single solid or stranded
Conductor	single solid, stranded or flexible wire
Insulation Material	PVC
insulation	pvc or thermoset plastic
standard	IEC, BS, ASTM, DIN ect
Certificate	CE, TUV
Place of Origin	Henan, China
experience	since 1993
R & D	yes
price	direct factory price

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	flexible package, carton, coil, wooden high
packing	roll, carton, coil, wooden case
Port of dispatch	Tianjin Qingdao or other main port

Supply Capacity

Attribute	Detail
Supply Ability	10,000,000 meters per Month earth cable

Product descriptions from the supplier

high quality 100% 120mm pvc insulated earthing copper cable

Volt 450/750V

Standars:IEC, BS, ASTM, GB, DIN

Certificate: CE, TUV, PSB, SABS, ISO, CCC

Application:

electric equipment, household, and electrical appliance

Working condition:

The non-sheathed single core wire is used for fixed wiring. It is laid in dry, normal and light duty conditions, such as in conduit and under plaster in building.

Structure:

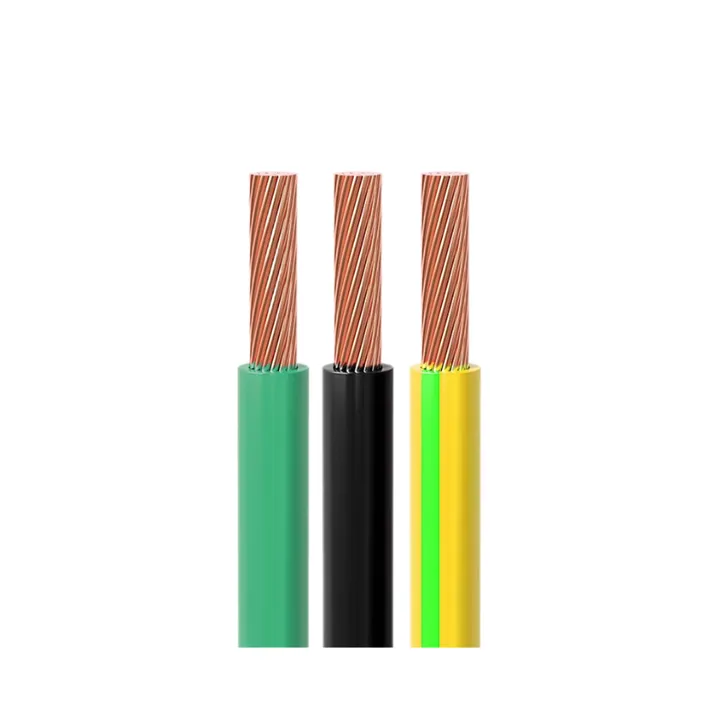

Solid or compressed strand soft copper

Polyvinyl Chloride (PVC 60° C), flame retardant

Dry Locations 70° C. Wet Locations 70° C

Operating Voltage :450/750V.

copper ground cable

Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al		Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
