Electric wires are conductive materials used to carry electrical current between power sources, devices, and systems. They are fundamental to modern electrical systems, providing safe and efficient energy transmission for various residential, commercial, and industrial applications.
Home / Product / Electric Wire / N2XH Power Cable (4x240mm² RM)

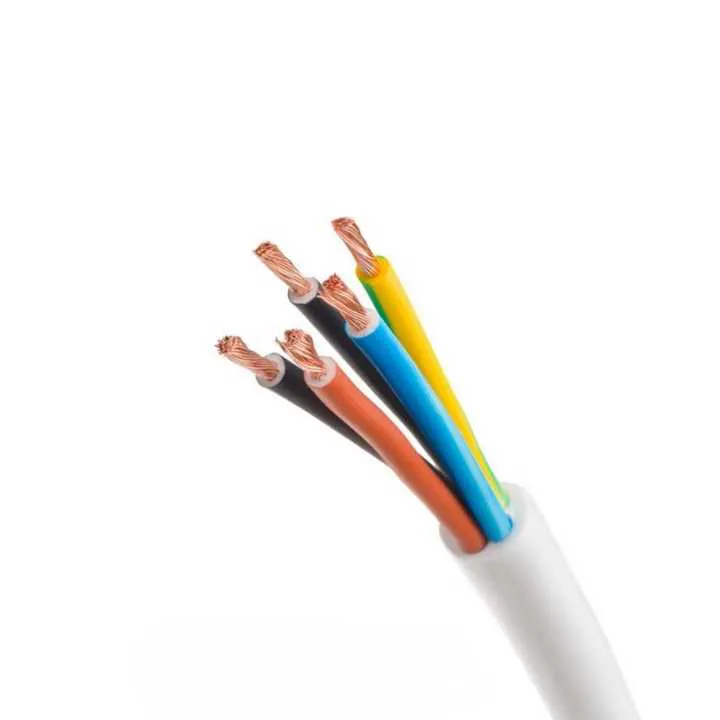

N2XH N2XH-J N2XH-O 0.6/1Kv Halogen-free and Flame-resistant Power Cable 4X240mm2 RM
|
Attribute |
Detail |
|
Model Number |
CU/XLPE/LSZH flexbile cable |
|
Product Name |
CU/XLPE/LSZH flexbile cable |
|
Brand Name |
JYXL |
|
Type |
insulated |
|
Application |
Household and industrial installation wire |
|
Conductor Material |
Copper |
|
Conductor Type |
flexible copper |
|
Conductor |
class 1 or 2 copper |
|
Insulation Material |
XLPE |
|
Insulation |
XLPE |
|
Rated Voltage |
0.6/1KV |
|
Color |
Black, yellow/green, blue, red, grey or as required |
|
Standard |
DIN VDE 0276-604 |
|
Certification |
DIN VDE 0276-604 |
|
Place of Origin |
Henan, China |
|
Packing |
roll |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Packaging Details |
IN 50M/ROLL, 100M/ROLL, 500M / DRUM |
|
Port of dispatch |
Tianjin port, Qing dao port, Shanghai port |
|
Packaging examples |
|
Supply Capacity
|
Attribute |
Detail |
|
Supply Ability |
100000 meters per Month |
Application:
Halogen-free and flame-resistant cable for power transmission and power distribution, generally for fixed installation in public buildings as hospitals, schools, hotels, airports and railway stations, where are high requirements for security. N2XH - Halogen-free power cable acc. HD 604/VDE 0276-604. Building installation cable with improved fire characteristics for fixed installation.
Features :
-Flame-retardant according IEC 60332-1-2.
-No flame-propagation according to IEC 60332-3-24
-Halogen-free according to IEC 60754-1
-Low smoke density according to IEC 61034-2
Construction:
Conductor : Bare copper wire conductor class 1 for cross section 1.5mm2 to 16.0mm2; class 2 for cross section 16mm2 to 95mm2.
Abbreviations "re", "rm", "se", "sm":
r = round conductor form;
s = sectorial conductor form;
e = single-wire conductor;
m = multi-wire conductor;
Insulation : Cross-linked polyethylene type XLPE
Inner covering: halogen-free compound, flame-resistant
Sheath: halogen-free compound, flame-resistant type HM4 according to HD 604
Sheath color : black.
N2XH-J With protective conductor.
N2XH-O without protective conductor.
Technical data:
1) Conductor acc. to HD 604
2) rated voltage Uo/U: 0.6/1 kV
3) test voltage: alternating voltage - 4 kV
4) insulation resistance at 90 °C: min 1012 Ω x cm
5) maximum conductor temperature: + 90 °C
6) max. conductor temperature at short circuit for 5 s : +250 °C
7) temperature of environment: -30 °C to +70 °C
8) minimum temperature during installation: -5 °C
9) minimum bending radius during installation: single core : 15D; multiple core : 12D (D - outer cable diameter)
10) flame test: flame-retardant acc. to IEC 60332-3 category "B" and VDE 0472 part 804
11) corrosivity of combustion gases - in acc. to VDE 0472 part 813
12) low smoke density - in acc. to VDE 0472 part 816.
|
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
|
N2XH-J |
|||
|
1x1,5 RE |
6.0 |
14.0 |
53 |
|
1x2,5 RE |
6,5 |
24.0 |
90 |
|
1x4 RE |
8,5 |
38.0 |
69 |
|
1x6 RE |
6,5 |
58.0 |
90 |
|
1x10 RE |
7,3 |
96.0 |
131 |
|
1x16 RM |
8,6 |
154.0 |
197 |
|
1x25 RM |
10,2 |
240.0 |
293 |
|
1x35 RM |
11,3 |
336.0 |
389 |
|
1x50 RM |
12,7 |
480.0 |
517 |
|
1x70 RM |
14,6 |
672.0 |
717 |
|
1x95 RM |
16,3 |
912.0 |
972 |
|
1x120 RM |
18,3 |
1152.0 |
1215 |
|
1x150 RM |
20.0 |
1440.0 |
1494 |
|
1x185 RM |
22,6 |
1776.0 |
1855 |
|
1x240 RM |
25,2 |
2304.0 |
2387 |
|
1x300 RM |
27,9 |
2880.0 |
2971 |
|
2x1,5 RE |
12.0 |
29.0 |
185 |
|
2x2,5 RE |
13.0 |
48.0 |
220 |
|
2x4 RE |
14.0 |
77.0 |
275 |
|
2x6 RE |
15.0 |
115.0 |
335 |
|
2x10 RE |
16.0 |
192.0 |
450 |
|
2x16 RM |
18.0 |
307.0 |
625 |
|
2x25 RM |
21.0 |
480.0 |
950 |
|
3x1,5 RM |
13.0 |
43.0 |
179 |
|
3x2,5 RM |
14.0 |
72.0 |
225 |
|
N2XH-O |
|||
|
1x25 RM |
10,2 |
240.0 |
293 |
|
1x35 RM |
11,3 |
336.0 |
389 |
|
1x50 RM |
12,7 |
480.0 |
517 |
|
1x70 RM |
14,6 |
672.0 |
717 |
|
1x95 RM |
16,3 |
912.0 |
972 |
|
1x120 RM |
18,3 |
1152.0 |
1215 |
|
1x150 RM |
20.0 |
1440.0 |
1494 |
|
1x185 RM |
22,6 |
1776.0 |
1855 |
|
1x240 RM |
25,2 |
2304.0 |
2387 |
|
1x300 RM |
27,9 |
2880.0 |
2971 |
|
3x1,5 RE |
8,9 |
43.0 |
125 |
|
3x2,5 RE |
9,8 |
72.0 |
163 |
|
3x4 RE |
10,8 |
115.0 |
219 |
|
3x6 RE |
11,8 |
173.0 |
289 |
|
3x10 RE |
13,6 |
288.0 |
431 |
|
3x16 RM |
16,7 |
461.0 |
638 |
|
3x25 RM |
20,2 |
720.0 |
1015 |
|
3x35 RM |
22,3 |
|
1231 |
|
3x50 RM |
25,5 |
1440.0 |
1652 |
|
3x70 RM |
30.0 |
2016.0 |
2455 |
|
3x95 RM |
32.0 |
2736.0 |
3260 |
|
3x120 RM |
35.0 |
3456.0 |
4000 |
|
3x150 RM |
39.0 |
4320.0 |
5100 |
|
3x185 RM |
44.0 |
5328.0 |
6160 |
|
3x240 RM |
49.0 |
6912.0 |
8000 |
|
4x1,5 RE |
9,7 |
58.0 |
147 |
|
4x2,5 RE |
10,6 |
96.0 |
195 |
|
4x4 RE |
11,7 |
154.0 |
266 |
|
4x6 RE |
12,9 |
230.0 |
355 |
|
4x10 RE |
15,2 |
384.0 |
547 |
|
4x16 RM |
18,3 |
614.0 |
839 |
|
4x25 RM |
22,6 |
960.0 |
1294 |
|
4x35 RM |
25,8 |
1344.0 |
1605 |
|
4x50 RM |
29,4 |
1920.0 |
2154 |
|
4x70 RM |
34,4 |
2688.0 |
3047 |
|
4x95 RM |
38,6 |
3648.0 |
4102 |
|
4x120 RM |
42,4 |
4608.0 |
5062 |
|
4x150 RM |
47,2 |
5760.0 |
6256 |
|
4x185 RM |
52.0 |
7104.0 |
7751 |
|
4x240 RM |
58,6 |
9216.0 |
10047 |
|
5x1,5 RE |
10,5 |
72.0 |
174 |
|
5x2,5 RE |
11,5 |
120.0 |
233 |
|
5x4 RE |
12,7 |
192.0 |
319 |
|
5x6 RE |
14,2 |
288.0 |
437 |
|
5x10 RE |
17.0 |
480.0 |
682 |
|
5x16 RM |
20,2 |
768.0 |
1036 |
|
5x25 RM |
24,9 |
1200.0 |
1584 |
|
5x35 RM |
28,4 |
1680.0 |
2155 |
|
7x1,5 RE |
11,3 |
101.0 |
214 |
|
7x2,5 RE |
12,4 |
168.0 |
291 |
|
7x4 RE |
17.0 |
269.0 |
540 |
|
10x1,5 RE |
14.0 |
144.0 |
299 |
|
10x2,5 RE |
15,8 |
240.0 |
419 |
|
12x1,5 RE |
14,7 |
173.0 |
342 |
|
12x2,5 RE |
16,4 |
288.0 |
480 |
|
12x4 RE |
21.0 |
461.0 |
805 |
|
14x1,5 RE |
17.0 |
202.0 |
480 |
|
14x2,5 RE |
19.0 |
336.0 |
635 |
|
19x1,5 RE |
18.0 |
274.0 |
600 |
|
19x2,5 RE |
21.0 |
456.0 |
810 |
|
24x1,5 RE |
20,2 |
346.0 |
625 |
|
24x2,5 RE |
24.0 |
576.0 |
990 |
|
30x1,5 RE |
21,3 |
432.0 |
738 |
|
30x2,5 RE |
23,7 |
720.0 |
1045 |
