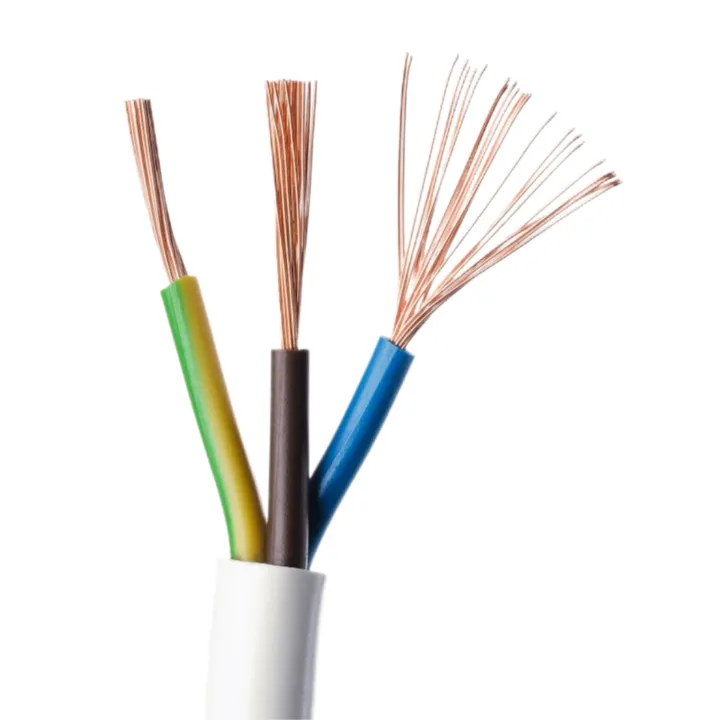

3x0.75mm² Round/Flat PVC Cable

H03VV-F H03VVH2-F 300V Copper Round/Flat PVC Insulated PVC Sheathed Cable 3x0.75mm2 or 20AWG

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Model Number	BV
Product Name	PVC insulated wire RVV
Brand Name	JYXL
Type	insulated
Application	Household and industrial installation wire
Conductor Material	Copper
Conductor Type	Solid or strand
Conductor	strand copper
Insulation Material	PVC
Insulation	PVC
Rated Voltage	250/400V
Color	Black, yellow/green, blue, red, grey or as required
Standard	IEC 60227-3 DIN VDE 0281 part 3
Certification	CE VDE
Place of Origin	Henan, China
Packing	roll

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	IN 50M/ROLL, 100M/ROLL, 500M / DRUM
Port of dispatch	Tianjin port, Qing dao port, Shanghai port

Supply Capacity

Attribute	Detail
Supply Ability	100000 meters per Month

Product Description

Application:

H03VV-F/H03VVH2-F is round/flat PVC insulated PVC sheathed cable for connecting electric appliances, devices and instruments i.e. table lamp and radio to the power supply network.

Description :
kabel H03VV-F / H03VVH2-F cable are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, offices;for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators). As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. Cables with cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U 495/495 volts.

Construction :

Conductor	Bare copper fine wire conductor, DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
Insulation	PVC core insulation to VDE-0281 Part 1,Color coded to VDE-0293-308,Green-yellow grounding (3 conductors and above)
Sheath	PVC outer jacket

H03VV-F Cable 300/300V Technical Data:

Rated voltage Uo/U	300/300V
Test voltage	2000V
minimum bending radius	mobile : 15D; fixed :4D (D – diameter or height of cable)
minimum temperature during installation	– 5 °C
temperature of environment	mobile: – 5 °C to +50 °C; fixed: -30 °C to +50 °C
max. conductor temperature at short circuit for 5 s	160°C
maximum conductor temperature	+70°C
Insulation resistance at 70 °C	min 2 x 1010 Ω.cm
flame test	flame-retardant acc. to IEC 60332-1

H03VV-F / H03VVH2-F date sheet :

AWG	No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Copper Weight kg/Km	Nominal Weight kg/Km	Nominal Copper Weight kg/Km	Nominal Weight kg/Km
H03VV-F
20(16/32)	2 x 0.50	0.5	0.6	5	9.6	38
20(16/32)	3 x 0.50	0.5	0.6	5.4	14.4	45
20(16/32)	4 x 0.50	0.5	0.6	5.8	19.2	55
18(24/32)	2 x 0.75	0.5	0.6	5.5	14.4	46
18(24/32)	3 x 0.75	0.5	0.6	6	21.6	59
18(24/32)	4 x 0.75	0.5	0.6	6.5	28.8	72
18(24/32)	5 x 0.75	0.5	0.6	7.1	36.0	87
kable H03VVH2-F
20(16/32)	2 x 0.50	0.5	0.6	3.2 x 5.2	9.7	32
18(24/32)	2 x 0.75	0.5	0.6	3.4 x 5.6	14.4	35
