Home / Product / Electric Wire / 60227 IEC 01 THW PVC Insulated Cable

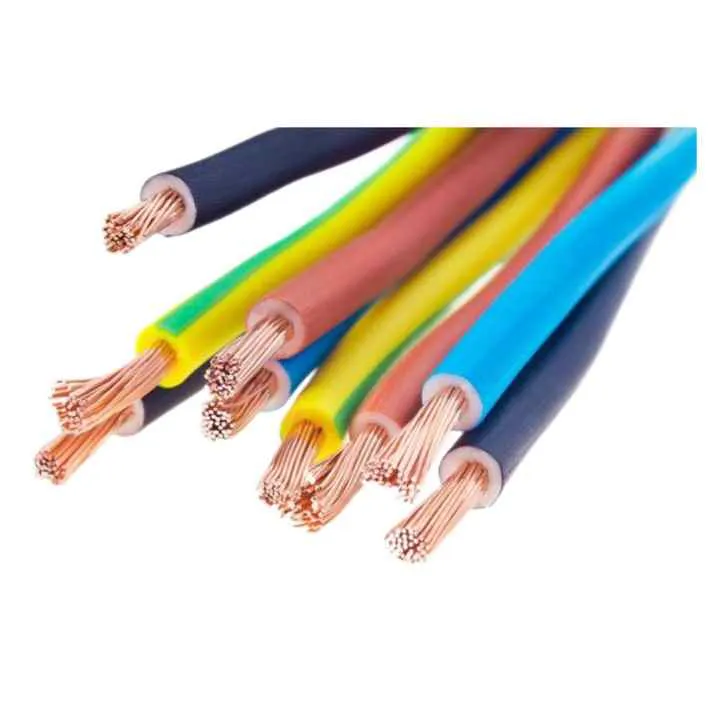

CABLE TYPE 60227 IEC 01 THW for Thailand Myanmar Market 450/750V 70C PVC INSULATED SINGLE CORE
|
Attribute |
Detail |
|
Model Number |
H05V-U H07V-U H05V-R H07V-R |
|
Brand Name |
JYXL |
|
Name |
wire and cable electrical |
|
Type |
insulated |
|
Application |
Construction |
|
Conductor Material |
Copper, Copper Clad Aluminum |
|
Conductor Type |
Solid, Strand or Solid |
|
Core Non |
Single |
|
Insulation Material |
PVC |
|
Insulated color |
Red, blue, yellow, black, white and so on |
|
Rated voltage |
300/500V |
|
Cross section |
0.5mm-240mm² |
|
Standard |
GB/T 5023-2008 |
|
Certification |
CCC, CE |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Packaging Details |
soft packing, 100 meters/roll |
|
Port of dispatch |
Tianjin port, Qingdao port, Shanghai port |
|
Delivery |
15 days |
Supply Capacity
|
Attribute |
Detail |
|
Supply Ability |
500 kilometers per Month BV |
CABLE TYPE 60227 IEC 01 THW for Thailand Myanmar market 450/750V 70C PVC INSULATED SINGLE CORE
450/750V PVC insulated wire
Insulated conductor for internal wiring of electrical devices and lighting fixtures, i.e. as bridge junction. Laying in dry areas, in switchboards and distribution boards. In electrical-installation canal which can be opened, only for signaling and control circuits. Not for direct application under plaster.
Conductor: bare copper conductor of class 1 (solid) acc, to IEC 60228 / HD 383 / DIN VDE 0295
Insulation: PVC compound TI1 acc. to IEC 60227-3 / HD 21.3 S3 / DIN VDE 00281 part 3
Conductor color identification: acc. to IEC 60446 i.e. EN 60446 (corresponding to DIN VDE 0293)
during installation:+5 °C up to+70 °C
fixed installed: -30 °C up to+70 °C
at short circuit of max. 5 s: up to 160 °C
ambient temperature at storage: up to 40 °C
Nominal voltage: Uο/U = 300/500 V
Test voltage: 2000 V
Minimal inner bending radius: 4D
Behavior in fire: IEC 60332-1
