LSZH Silicone Rubber Insulated Cable

CU/ SR/LSZH Fire Resistant Silicone Rubber Insulated Power & Control Cable 450/750V BS 7629-1 2 3 4 5 Core

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Model Number	CU/ SR/LSZH
Brand Name	JYXL
Product name	CU/ SR/LSZH
Type	insulated
Application	Household and industrial installation wire
Conductor Material	copper or aluminium
Conductor	solid or strand copper
Conductor Type	Solid or strand
Size	multi core 1-5 core
Insulation Material	rubber
Insulation	SILICONE RUBBER
Sheath	PVC
Rated Voltage	600/1000V
Standard	BS 5467
Certification	TUV CE PSB
armour	Al/ galvanized steel wires
Packing	roll
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	IN 50M/ROLL 100M/ROLL, 500M / DRUM
Port of dispatch	Tianjin port, Qingdao port, Shanghai port
Packaging examples	Image provided

Supply Capacity

Attribute	Detail
Supply Ability	100,000 meters per Month

Product Description

450/750V Silicone Rubber Insulated, LSZH sheathed control cables

Application

The 450/750V Silicone R Insulated Fire Resistant control cables are designed, manufactured and tested for general application in power supply and signal wiring, for emergency circuit and fire circuit control.

Construction

Conductors: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Fire resistant silicone rubber compound
Cabling: The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.
Outer Sheath: Thermoplastic LSZH compound

COLOUR CODE

Insulation Colour:
Without earth conductor
2 cores blue - brown
3 cores brown - black - grey
4 cores blue - brown - black - grey
5 cores blue - brown - black - grey - black
With earth conductor
3 cores yellow/green - blue - brown
4 cores yellow/green - brown - black - grey
5 cores yellow/green - blue - brown - black - grey

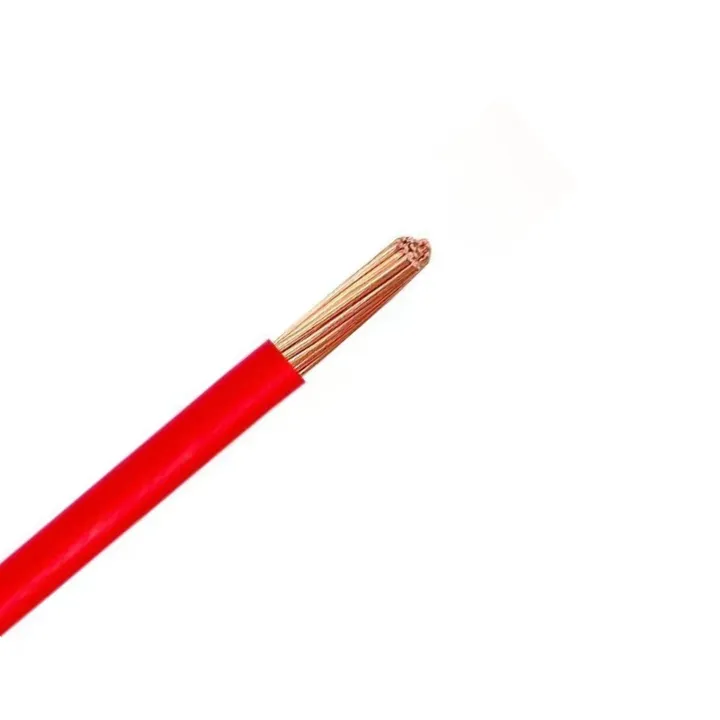

Sheath Colour: Colour red (other colours on request)

Physical AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical PROPERTIES

Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

CABLE CODE	NO. OF CORE X CROSS SECTION	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
	MM2	MM	MM	MM	KG/KM
2 core,	2x1.5	0.8	1.0	7,8	96
2 core,	2x2.5	0.9	1.1	9,2	138
2 core,	2x4.0	0.9	1.2	10,5	189
3 core	3x1.5	0.8	1.0	8,3	116
3 core	3x2.5	0.9	1.1	9,8	169
3 core	3x4.0	0.9	1.2	11,6	246
4 core	4x1.5	0.8	1.1	9,3	147
4 core	4x2.5	0.9	1.2	11,3	222
4 core	4x4.0	0.9	1.3	12,5	299
5 core	5x1.5	0.8	1.1	10,5	180
5 core	5x2.5	0.9	1.2	12,3	259
5 core	5x4.0	0.9	1.3	14,0	359
