UL758 Flexible Wires (16, 18, 20 AWG) - AWM, FEP, TFFN, MTW

UL Certified CABLE WIRE TFFN/MTW/AWM CABLE 16AWG 18AWG Electric Wires Cables 20 Awg Flexible UL758 Wires Fep Cable

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes
Application	indoor house
Conductor Material	copper or aluminum
Conductor Type	solid/strand for THHN/THWN/THWN-2 wire
Insulation Material	PVC
Rated voltage	600v
Other attributes
Place of Origin	He Nan, China
Brand Name	JIANYUN
Model Number	THHN/THWN/THWN-2
Type	insulated
Certificate	UL
cross section	18AWG-1000KCML
cable type	THHN/THWN/THWN-2
Standard	ASTM, UL
Cores	multi-core
Rated Voltage	600V
working temperature	60℃, usually 90℃,MAX105℃
main market	north and south america
free Sample	free Sample Available
Packaging and delivery
Packaging Details	100m, 200m, 305m per roll for UL certified CABLE WIRE TFFN/MTW/AWM
Port	Tianjin or other main port
Supply Ability
Supply Ability	10000000 Meter/Meters per Month

Product Description

THHN, THWN, THWN-2 Cable Instruction:

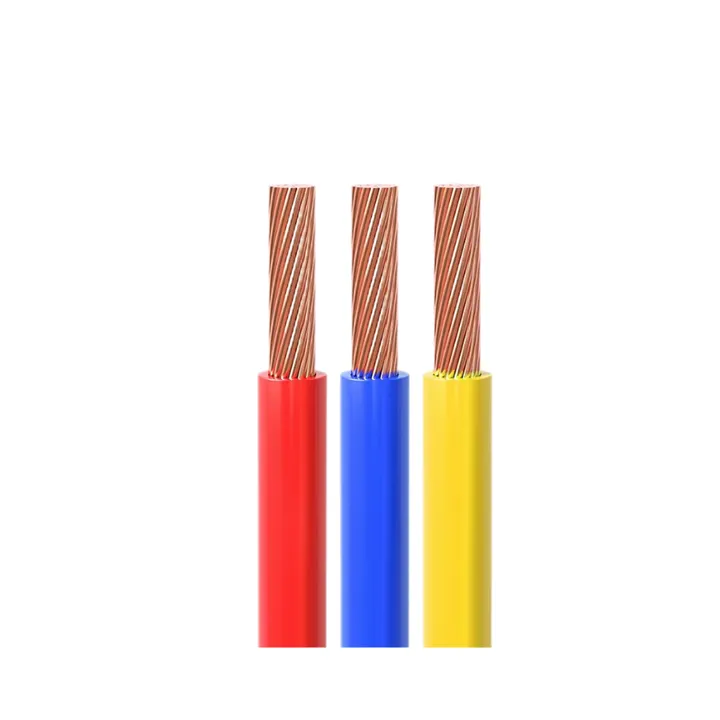

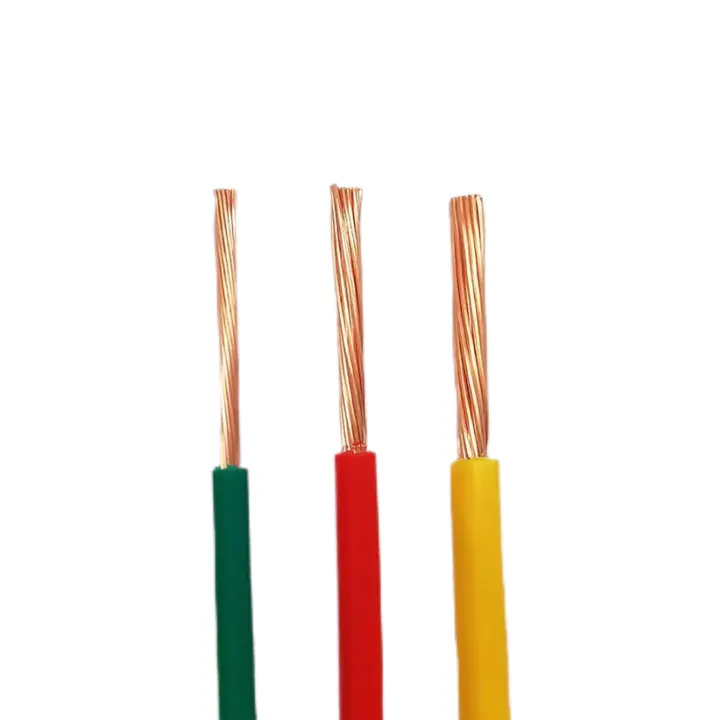

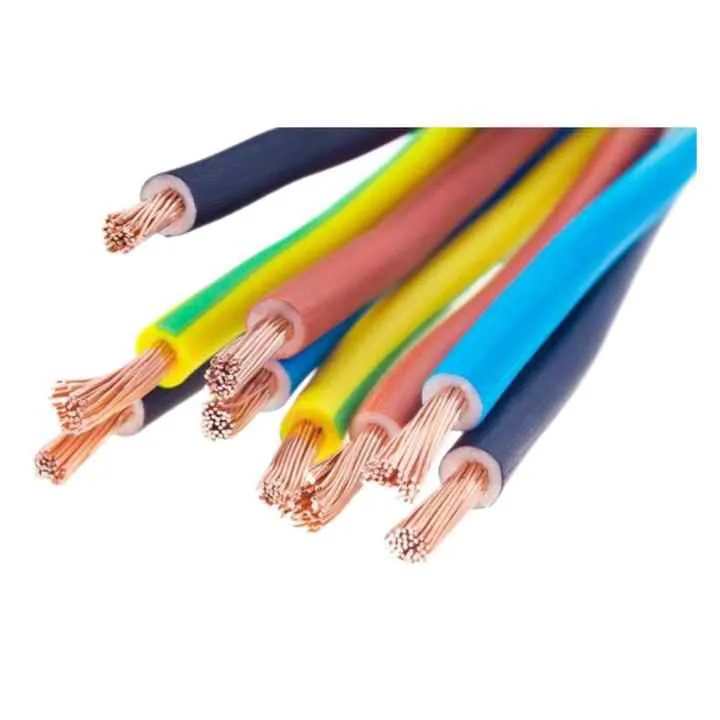

Name: THHN, THWN, THWN-2 CABLE with nylon cover outside hot seller THHN CABLE

Structure:Conduct---pure copper/copper clad copper/copper clad aluminum/aluminum

Insulation---PVC/PE/XLPE

Outside---NYLON

Size:According to Standard/Sample/Price requirement.

THHN, THWN, THWN-2 Specifications

THHN, THWN, THWN-2 copper wire PVC insulation nylon jacket cable

1.Rated Temperature:75 Degree

2.Rated Volt:600V

3.Standard: UL83

4.single core stranded

5.Cross section area:18awg-1000mcm

THHN, THWN, THWN-2 Wire Description:

· UL listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.

· A-A-59544, NEMA WC-5, UL-758

· Standard Colors(denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9),

Pink (-10), Tan (-11); Striping and Other colors available upon request.

· Gasoline & oil resistant - Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.

THHN, THWN, THWN-2 Wire Ratings:

· THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry, 600V

· THWN-2: 75°C Oil, 90°C Wet, 90°C Dry, 600V

· MTW: 60°C Oil, 60°C Wet, 90°C Dry, 600V

· AWM 1316 to 1321: 80°C Oil, - Wet, 105°C Dry, 600V

· AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry, 600V

· AWM 1452 to 1453: 80°C Oil, - Wet, 90°C Dry, 600V

· T90 NYLON: 60°C Oil, - Wet, 90°C Dry, 1000V

· TWN 75: - Oil, 75°C Wet, - Dry, 600V

Single core Standard Data(part)

Standards:UL83, C22.2No.75-03,UL1581
Type Size	cores	Conductor OD. (mm)	Insulation Thinkness (mm)	Insulation OD. (mm)	Nylon Jacket Thinkness (mm)	Jacket OD. (mm)	Weight (kg/km)	conductor resistance (Ω/km)	15°C Insulation Resistance (GΩ.m)
14AWG	1	1.63	0.38	2.39	0.1	2.59	23.53	8.4500	205
12AWG	1	2.05	0.38	2.81	0.1	3.01	35.47	5.3100	175
10AWG	1	2.59	0.51	3.62	0.1	3.82	56.79	3.3430	180
8AWG	7	1.23	0.76	5.22	0.13	5.48	94.30	2.1440	185
6AWG	7	1.56	0.76	6.21	0.16	6.53	145.06	1.3480	155
4AWG	7	1.96	1.02	7.93	0.15	8.23	229.96	0.8481	155
3AWG	7	2.2	1.02	8.65	0.15	8.95	283.71	0.6727	145
2AWG	7	2.47	1.02	9.46	0.15	9.76	351.04	0.5335	130
1AWG	19	1.69	1.27	11.00	0.18	11.36	453.53	0.4230	140
1/0AWG	19	1.89	1.27	12.00	0.18	12.36	557.27	0.3354	130
2/0AWG	19	2.12	1.27	13.15	0.18	13.51	689.97	0.2660	115
3/0AWG	19	2.39	1.27	14.50	0.18	14.86	864.04	0.2110	105
4/0AWG	19	2.68	1.27	15.95	0.18	16.31	1073.00	0.1673	95
250MCM	37	2.09	1.52	17.69	0.2	18.09	1325.85	0.1416	105
350kmcil	37	2.47	1.52	20.35	0.2	20.75	1819.13	0.1011	90
500kcmil	37	2.95	1.52	23.71	0.2	24.11	25
