300/500V Multi Core Copper Wire (1-10mm²)

1mm 1.5mm 2.5mm 4mm 6mm 10mm 300/500V Multi Core Copper Electric Wires Cables Electrical Cable

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes
Application	BUILDING,INDOOR,lighting
Conductor Material	COPPER,ALUMINUM
Conductor Type	SOLID OR STRANDED OR FLEXIBLE
Insulation Material	PVC
Rated voltage	450/750v
Other attributes
Place of Origin	China
Brand Name	JIANYUN
Model Number	PVC Coated Wire ,H05V-U,H07V-U,H07V-R
Type	insulated
certification	ISO9001/ISO14001 CE
Rated Voltage	300/500V or 450/750V
Color	red, yellow, green, blue, yellow & green as required
Standard	IEC 60227, BS 6004, VDE0281
cores	1 2 3
cross section	0.75~240mm2

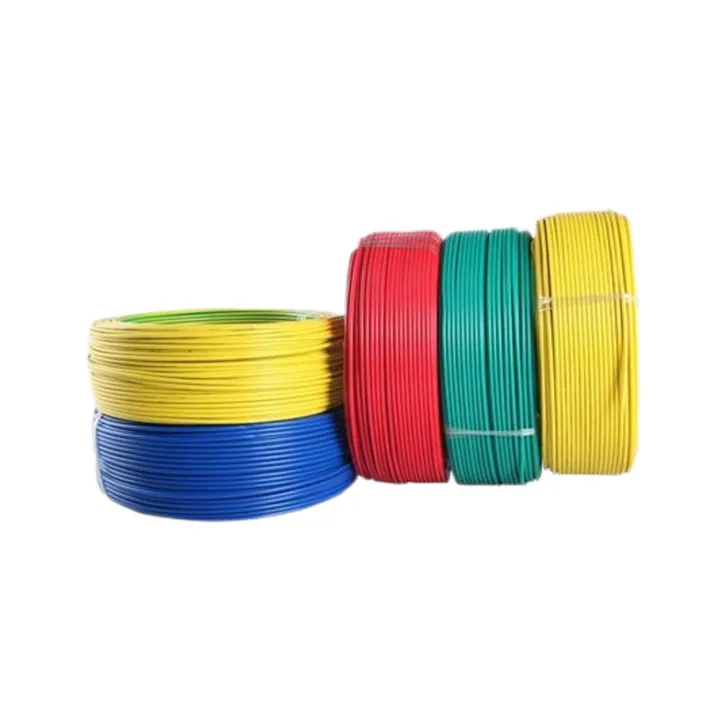

Packing	100 meters per coil or as per customers' requirements.
Operating Temperature	0~70°C
sample	free sample available
Packaging and delivery
Packaging Details	100 meters per coil or as per customers' requirements.
Port	Tianjin port, Qingdao port, Shang hai port
Supply Ability
Supply Ability	10000000 Meter/Meters per Month

Product Description

copper wire

1). Rated voltage: U0/U 300/500V and 450/750V.

2). The long-time permissible temperature of cable: BV 105 below 105°C,and the other below 70°C.

3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.

4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.
5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of

cable. And the other is above 6 times of the external diameter of cable.

6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
7). Light weight, perfect bending properties, installed and maintained easily and conveniently.

8). Insulation sheath material and color: PVC in red, black, blue or any color as required.

9). Type: Single or twin cables with different colors Provides OEM according to requests of customer.

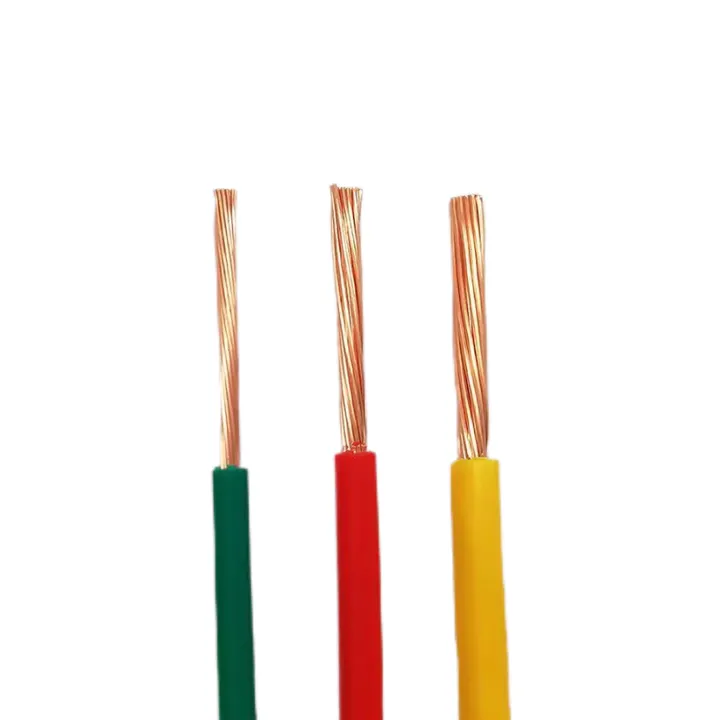

Construction of copper wire :

(1).Conductor: bare solid/stranded copper,or Aluminum.

(2).Insulation: PVC rated at 70°C

(3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement.

(4).Outer sheath: PVC tapes ST2 to IEC.

Comprehensive Data of BV Wire

Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
0.5	1/0.80	0.6	2.4	36.0	0.015	8.1
0.75	1./0.97	0.6	2.6	24.5	0.012	10.6
1	1/1.13	0.6	2.8	18.1	0.011	13.2

Comprehensive Data table of BV BLV Type PVC insualted wire

Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0
