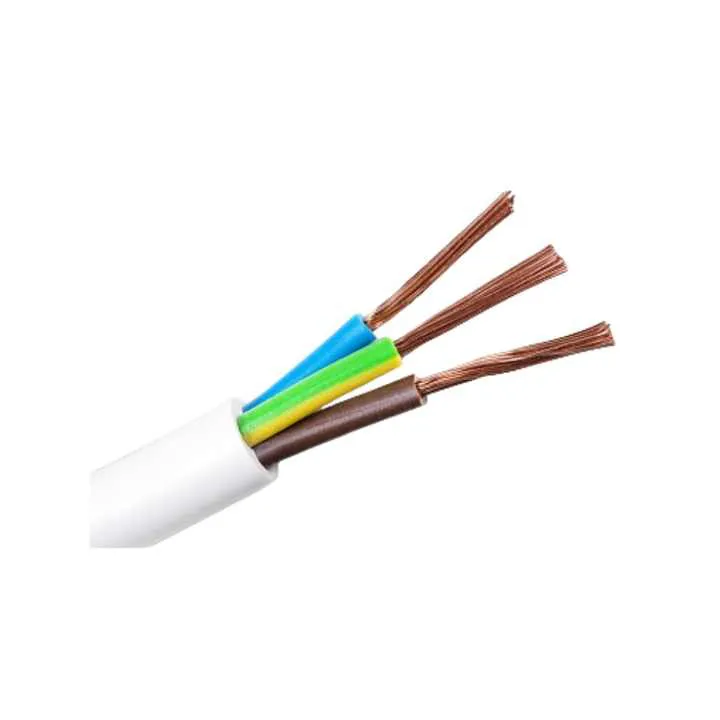

250ft NM-B/NMD90 Electrical Cable

Ul719 CABLE 250FT ROLL 14/2 12/2 10/2 W/G NM-B NMD90 Wire Cable Electrical Copper Wire and Cable

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Model Number	NM-B
Brand Name	JYXL
Type	Insulated
Application	Building
Conductor Material	Copper, Pure Copper
Conductor Type	Stranded
Insulation Material	PVC, PVC Rated
Jacket	Nylon Jacket
Voltage	600V
Color	Yellow, Black
Standard	UL 83, UL 791
Certification	ISO9001/ISO14001/OHSAS18001/CCC
Sample	Provided
Packing	100m/roll, 305m/roll
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	packing in 100 or 305 meters per roll. We can also pack it according to your requirement.
Port of dispatch	Tianjin or other main port

Supply Capacity

Attribute	Detail
Supply Ability	1,000,000 meters per Month

Product Description

Applications:
Type NM-B (Non-metallic sheathed cable) has a broad range of usage as defined in Article 334 of the National Electrical Code (NEC). Type NM-B cable is commonly used for residential fixtures, switches, and loads rated for at least 90ºC. Type NM-B ampacity limitation shall be in accordance with the 60ºC conductor temperature rating, as specified in the National Electrical Code. Type NM-B is rated for 600 volts for both exposed and concealed work in normally dry locations. Type NM-B may be installed or fished in air voids and joints and in masonry block or tile walls where such walls are not exposed to, nor subject to, excessive moisture or dampness.

Standards:
Underwriters Laboratories Standards UL-83, UL-719
Federal Specification A-A-59544
ASTM-B3 and B8
ARRA 2009; Section 1605 “Buy American” Compliant

CONSTRUCTION:
Conductors:
Solid 14-10 AWG soft, uncoated copper, per ASTM-B3
Stranded 8 AWG conductor and larger uncoated, copper ASTM-B8
Insulation:
Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90°C in dry locations.
Grounding Conductor:
Soft, uncoated copper per ASTM-B3 and/or ASTM-B8
Jacket:
A 30-mil, color-coded, PVC jacket is applied over the completed assembly as follows:
14 AWG White I 12 AWG Yellow I 10 AWG Orange I 8 AWG Black I 6 AWG Black
Assembly:
2-conductor construction has the insulated conductors laid parallel with a bare copper ground wire wrapped in paper and laid parallel between the insulated conductors. The entire assembly is wrapped with a paper separator before applying the PVC outer jacket. SuperSlick Elite is available in sizes: 14 AWG, 12 AWG, 10 AWG constructions. 3 and 4 conductor constructions may have the insulated conductors laid parallel or twisted together before applying the PVC outer jacket.

specification.

Size (AWG)	Number of Strands	Ground Wire Size	Insulation Thickness (in)		Allowable Ampacity (Amps)*	Outside Diameter (in)	Approximate Net Weight (lbs/1000 ft)
Size (AWG)	Number of Strands	Ground Wire Size	PVC	Nylon	Allowable Ampacity (Amps)*	Outside Diameter (in)	Approximate Net Weight (lbs/1000 ft)
14/2 G	Solid	14	0.015	0.004	15	0.170 x 0.390	56
12/2 G	Solid	12	0.015	0.004	20	0.160 x 0.450	82
10/2 G	Solid	10	0.020	0.004	30	0.210 x 0.493	123
8/2 G	7	10	0.030	0.005	40	0.290 x 0.580	185
6/2 G	7	10	0.030	0.005	55	0.330 x 0.695	256
14/3 G	Solid	14	0.015	0.004	15	0.170 x 0.450	74
12/3 G	Solid	12	0.015	0.004	20	0.345	107
10/3 G	Solid	10	0.020	0.004	30	0.430	165
8/3 G	7	10	0.030	0.005	40	0.555	251
6/3 G	7	10	0.030	0.005	55	0.612	352
4/3 G	7	8	0.040	0.006	70	0.820	565
2/3 G	7	8	0.040	0.006	95	0.945	841
**14/4 G & 14/2-2 G	Solid	14	0.015	0.004	12	0.345	90
**12/4 G & 12/2-2 G	Solid	12	0.015	0.004	16	0.385	132
**10/4 G	Solid	10	0.020	0.004	30	0.540	205
