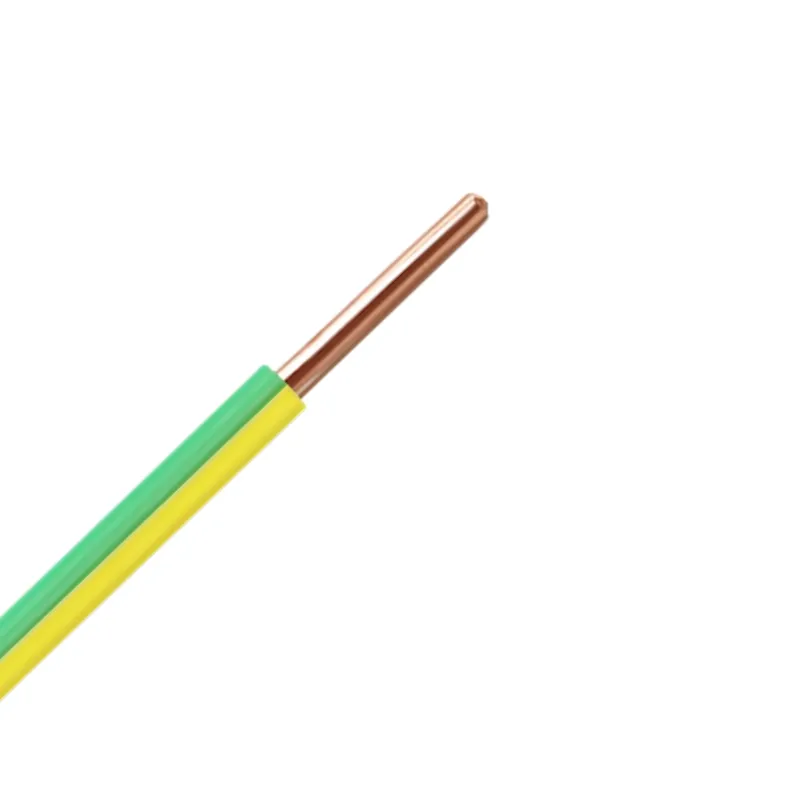

35-95mm² AS/NZS PVC Earth Cable

600/1000V 35mm2 50mm2 70mm2 95mm2 PVC Insulated Yellow Green Earthing Cable with AS/NZS5000.1 Standard

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Model Number	green/yellow cable
Brand Name	JYXL
Produce Name	as nzs cable
Type	Insulated
Conductor Material	Copper
Conductor Type	Stranded
Conductor	stranded copper wire
Insulation Material	PVC
Insulation	PVC
Insulated Color	green/yellow cable
Application	building material, construction
Voltage	600V
Cross Section	1.5mm², 2.5mm², 4.0mm², 50mm², 70mm², 120mm²
Standard	AS NZS 5000.1
Certification	ISO, CE, CCC, UL
Price	Factory direct to sell
Sample	Free
Place of Origin	Henan, China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	soft packing or in reel, 100 meters/roll or as your request for as nzs cable
Port of dispatch	Tianjin port, Shanghai port, Qingdao port or others

Supply Capacity

Attribute	Detail
Supply Ability	500 kilometers per Month 300mm² single core cable

Product Description

600/1000V 35mm2 50mm2 70mm2 95mm2 PVC insulated yellow green earthing cable with AS/NZS5000.1 standard

1. Application: These cables are used for separate earth conductors, switchboard and control panel wiring. For fixed wiring within other enclosures or apparatus where the cable is not accessible without the use of tools.

2. Standard: AS/NZS 5000.1
3. Conductor: Class 1/2 Plain annealed copper wires, solid or stranded
Insulation: V-90 PVC
Core color: Black, Blue, Orange, Pink, White, Green/Yellow or others on request
4. Voltage Rate: 0.6/1KV
5. Max. Operating Temperature: 90Â°C

6 Data sheet of yellow/green cable:
