Medium voltage (MV) power cables are essential components in modern electrical power distribution systems, designed to handle voltages ranging from 1kV to 35kV. They serve as the backbone for transmitting electrical energy between substations, transformers, and end-user equipment in both industrial and utility settings.
Home / Product / Medium Voltage Power Cable / 3.8/6.6kV to 19/33kV 3C AL/XLPE/PVC Type B Cables
3.8/6.6KV 6.35/11KV 12.7/22KV 19/33KV 3C AL/XLPE/PVC TYPE B CABLES
|
Attribute |
Detail |
|
Model Number |
TYPE A TYPE B |
|
Brand Name |
JYXL |
|
Type |
Medium Voltage |
|
Application |
Construction |
|
Conductor Material |
Copper, Aluminum |
|
Cores |
1, 3 |
|
Cross section |
1.5mm$^2$-800mm$^2$ |
|
Insulation Material |
XLPE |
|
Insulation |
XLPE |
|
Jacket |
PVC |
|
Sheath |
PVC or PE |
|
Sheath color |
FRPVC (red stripe) |
|
Screen |
Copper Tap |
|
Voltage |
3.6/6KV~19/33KV |
|
Standard |
SANS 1339 |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Packaging Details |
Standard Export Drum |
|
Port of dispatch |
Tianjin port, Qingdao port, Shanghai port |
|
Packaging examples |
|
Supply Capacity
|
Attribute |
Detail |
|
Supply Ability |
500 kilometers per Month (XLPE Power Cable) |
They are suitable for use in distribution installations, electric power stations and industrial systems. The cables are for fixed assembly in lines with unlimited difference levels, indoor installations, in cable ducts, conduits and shafts, over shelves and grills directly underground in ditch and outdoor shelter.
2 Standards:
SANS 1339
Conductor: Stranded copper conductor or Circular aluminum conductor per SANS
1411-1
Inner Layer:Semi-conductive conductor screen
Insulation:XLPE (Cross-Linked Polyethylene)
Outer Layer:Semi-conductive core screen
Tape:Semi-conductive tape
Screen: copper tape screen
Outer Sheath : FRPVC (red stripe) LHPVC (blue stripe)
Voltage:3.8/6.6KV 6.35/11KV 12.7/22KV 19/33K
Size:16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240mm2 300mm2
Operating temperature: 90C continuous operation
Short Circuit Temperature: +250°C
Minimum Bending Radius:15 x overall diameter
|
Core*Size |
Conductor diameter |
Insulation thickness |
Nominal diameter over insulation |
Nominal thickness of Copper tape |
Outer Sheatehd thickness |
Diameter of Cable |
|
|
app |
nominal |
|
|
|
max. |
|
N x mm² |
mm |
mm |
mm |
mm |
mm |
mm |
|
3.8/6.6KV |
||||||
|
3x16 |
4.8 |
2.5 |
12.3 |
0.2 |
2.0 |
37.6 |
|
3x25 |
6.0 |
2.5 |
13.5 |
0.2 |
2.1 |
40.4 |
|
3x35 |
7.2 |
2.5 |
14.7 |
0.2 |
2.2 |
43.2 |
|
3x50 |
8.4 |
2.5 |
15.9 |
0.2 |
2.3 |
46 |
|
3x70 |
10 |
2.5 |
17.4 |
0.2 |
2.4 |
49.5 |
|
3x95 |
11.7 |
2.5 |
19.2 |
0.1 |
2.5 |
53.1 |
|
3x120 |
13.4 |
2.5 |
20.9 |
0.1 |
2.6 |
57 |
|
3x150 |
14.6 |
2.5 |
22.1 |
0.1 |
2.7 |
59.8 |
|
3x185 |
16.4 |
2.5 |
23.9 |
0.1 |
2.8 |
63.9 |
|
3x240 |
18.8 |
2.6 |
26.5 |
0.1 |
3.0 |
70 |
|
3x300 |
21.4 |
2.8 |
29.5 |
0.1 |
3.2 |
76.9 |
|
6.35/11KV |
||||||
|
3x16 |
4.8 |
3.4 |
14.1 |
0.2 |
2.2 |
41.9 |
|
3x25 |
6.0 |
3.4 |
15.3 |
0.2 |
2.2 |
44.5 |
|
3x35 |
7.2 |
3.4 |
16.5 |
0.2 |
2.3 |
47.3 |
|
3x50 |
8.4 |
3.4 |
17.7 |
0.2 |
2.4 |
50.1 |
|
3x70 |
10 |
3.4 |
19.2 |
0.2 |
2.5 |
53.6 |
|
3x95 |
11.7 |
3.4 |
21.0 |
0.1 |
2.7 |
57.4 |
|
3x120 |
13.4 |
3.4 |
22.7 |
0.1 |
2.8 |
61.3 |
|
3x150 |
14.6 |
3.4 |
23.9 |
0.1 |
2.9 |
64.1 |
|
3x185 |
16.4 |
3.4 |
25.7 |
0.1 |
3.0 |
68.2 |
|
3x240 |
18.8 |
3.4 |
28.1 |
0.1 |
3.1 |
73.6 |
|
3x300 |
21.4 |
3.4 |
30.7 |
0.1 |
3.3 |
79.7 |
|
3x400 |
24.3 |
3.4 |
33.6 |
0.1 |
3.5 |
86.4 |
|
12.7/22KV |
||||||
|
3x25 |
6.0 |
5.5 |
19.5 |
0.1 |
2.7 |
54.2 |
|
3x35 |
7.2 |
5.5 |
20.7 |
0.1 |
2.8 |
57 |
|
3x50 |
8.4 |
5.5 |
21.9 |
0.1 |
2.9 |
59.8 |
|
3x70 |
10 |
5.5 |
23.4 |
0.1 |
3 |
63.6 |
|
3x95 |
11.7 |
5.5 |
25.2 |
0.1 |
3.1 |
67.4 |
|
3x120 |
13.4 |
5.5 |
26.9 |
0.1 |
3.2 |
71.3 |
|
3x150 |
14.6 |
5.5 |
28.1 |
0.1 |
3.4 |
74.3 |
|
3x185 |
16.4 |
5.5 |
29.9 |
0.1 |
3.5 |
78.4 |
|
3x240 |
18.8 |
5.5 |
32.3 |
0.1 |
3.7 |
84.0 |
|
3x300 |
21.4 |
5.5 |
34.9 |
0.1 |
3.8 |
89.8 |
|
19/33KV |
||||||
|
3x50 |
8.4 |
8.0 |
26.9 |
0.1 |
3.3 |
71.5 |
|
3x70 |
10 |
8.0 |
28.4 |
0.1 |
3.4 |
74.9 |
|
3x95 |
11.7 |
8.0 |
30.2 |
0.1 |
3.5 |
79.0 |
|
3x120 |
13.4 |
8.0 |
31.9 |
0.1 |
3.7 |
83.1 |
|
3x150 |
14.6 |
8.0 |
33.1 |
0.1 |
3.8 |
85.9 |
|
3x185 |
16.4 |
8.0 |
34.9 |
0.1 |
3.9 |
90.9 |
|
3x240 |
18.8 |
8.0 |
37.3 |
0.1 |
4.1 |
95.7 |
|
3x300 |
21.4 |
8.0 |
39.9 |
0.1 |
4.2 |
101.5 |

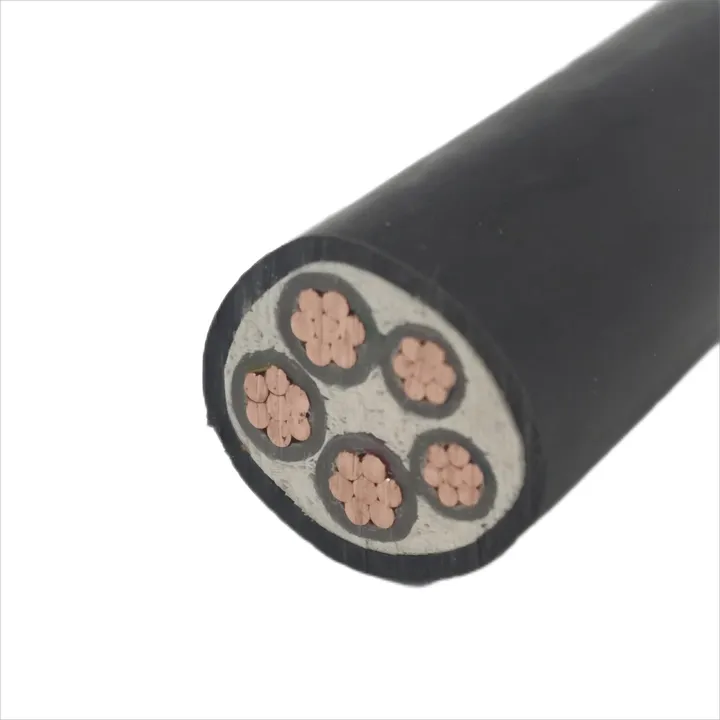

NYY cable, also known as PVC-insulated power cable, is designed for power transm
