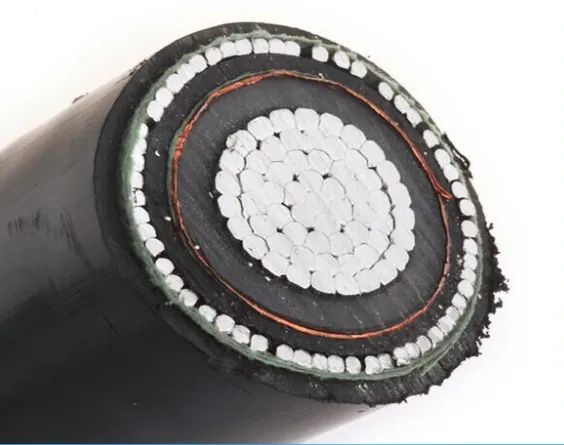

18/30kV RHZ1 Single-Core 150-240mm² Aluminium Power Cable

18/30 KV Single Core 150mm2 185mm2 240mm2 RHZ1 Aluminium Power Cable

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Model Number	RHZ1
Product Name	RHZ1 aluminum cable
Brand Name	JYXL
Type	Medium Voltage
Application	energy, transport & distribution
Conductor Material	Aluminum (Class 2)
Insulation Material	XLPE
Jacket	PE
Sheathed	PVC with red color
Shield	copper wires + copper tape - H16
Number of cores	single core
Cross section	50mm$^2$, 70mm$^2$, 95mm$^2$, 120mm$^2$, 150mm$^2$, 185mm$^2$
Voltage	18/30KV
Standard	IEC60502-2 and UNE-HD 620-10E
Place of Origin	Henan, China
Sample	Free
Price	Factory direct to sell

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	standard export drum for RHZ1 aluminum cable
Port of dispatch	Tianjin, Shanghai, Qingdao port

Supply Capacity

Attribute	Detail
Supply Ability	5000 kilometers per Month (RHZ1 aluminum cable)

Product Description

RHZ1 - Aluminium, 18/30 KV, 1x150 mm2 power cable

X-VOLT RHZ1-OL 12/20 kV AL

1. Object

This document defines the design and manufacturing characteristics of the cables type
RHZ1-OL 12/20 kV Al+H16 manufactured by HuaTong Cables.
2. Design
This type of cables is designed, manufactured and tested according to UNE-HD 620-10E and
IEC 60502-2.
3. Applications
Cables for fixed installations. Suitable for transport and distribution of electric power in
medium voltage networks. Halogen free. These cables are suitable for indoor, outdoor and
buried installations.

4. Characteristics

Nominal voltage: 12/20 (24) kV
Minimum service temperature: -15 °C
Maximum conductor temperature: 90 °C
Maximum short-circuit temperature: 250 °C (maximum 5 s)
Minimum bending radius: 15 x cable Ø
Halogen free: according EN 50267 / IEC 60754
HCl content < 0,5 %
pH > 4,3
conductivity < 10 μS/mm

5. General make-up of the cable
5.1 Conductor
Electrolytic annealed aluminium conductor, class 2 according to EN 60228 / IEC 60228.
Optionally, hygroscopic tapes can be applied in order to achieve longitudinal watertightness
on the conductor (cable type -2OL)
5.2 Inner semi-conducting screen
Cross-linked semiconductor screen applied over conductor in a triple-extrussion process.
5.3 Insulation
Cross-linked polyethylene insulation, type DIX-3 according to HD 620-1 and type XLPE
according to IEC 60502-2; natural color. Cross-linked in catenary line with nitrogen
atmosphere.
5.4 Outer semi-conducting screen
Cross-linked semiconductor screen applied over insulation in a triple-extrussion process.
Strippable.
Optionally, under customer request, it can supplied non strippable (bonded to insulation).
5.5 Metalic screen
Metalic screen made with Cu wires and Cu binder tape, applied over the outer semiconducting
layer. With 16 mm2 minimum cross-section.
5.6 Water blocking
Hygroscopic tape applied over metalic screen.
5.7 Outer sheath
Polyolefine outer sheath, type DMZ1 according to HD 620-1 and type ST7 according to IEC
60502-2; red color.

6 Data sheet of RHZ1-OL:

Cross-section	Screen	Conductor	Insulation	Outer	Weight
mm2	mm2	mm	mm	mm	KG/KM
1x50	16	8	20.2	27.9	770
1x70	16	10.1	22.3	30.4	905
1x95	16	11.3	23.5	31.5	1000
1x120	16	12.7	24.9	33.6	1140
1x150	16	14.2	26.4	35.1	1260
1x185	16	16	28.2	36.9	1405
1x240	16	18	30.2	39.4	1635
1x300	16	21	33.2	42.4	1865
1x400	16	23.4	36.4	45.6	2225
1x500	16	27	40.4	49.2	2585
1x630	16	31.5	44.5	53.7	3130
1x800	16	34	47	57.2	3775
1x1000	16	39	51.7	60.5	4450
