Medium voltage (MV) power cables are essential components in modern electrical power distribution systems, designed to handle voltages ranging from 1kV to 35kV. They serve as the backbone for transmitting electrical energy between substations, transformers, and end-user equipment in both industrial and utility settings.
Home / Product / Medium Voltage Power Cable / 12/20kV NA2XSEY 120-185mm² Aluminum XLPE Insulated Single-Core MV Cable

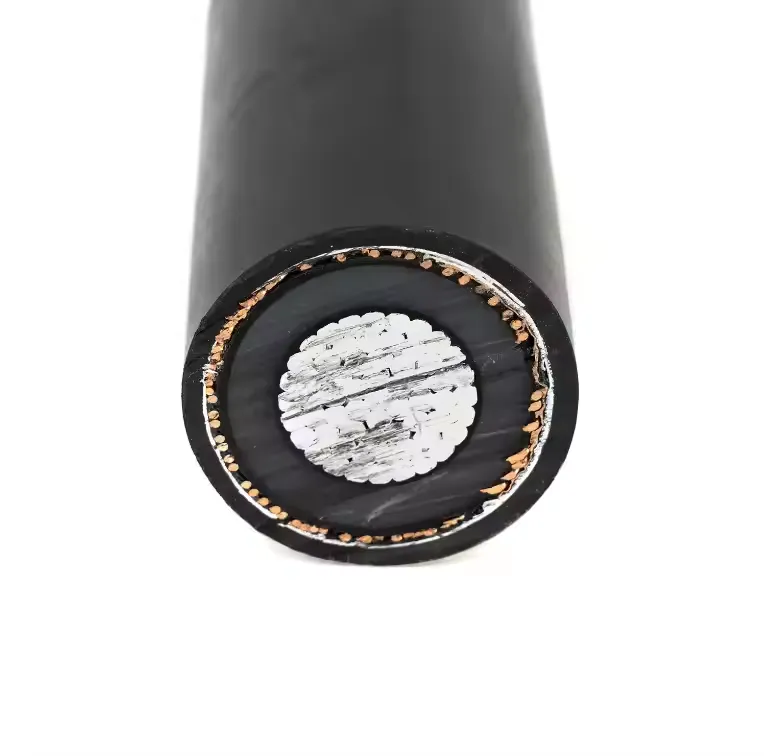

12/20KV NA2XSEY 120 150 185mm2 ALUMINUM Cable XLPE Insulated Single Core Medium Voltage Cable
|
Attribute |
Detail |
|
Model Number |
XLPE power cable |
|
Brand Name |
JYXL |
|
Type |
Medium Voltage |
|
Application |
Underground |
|
Conductor Material |
copper, aluminum |
|
Insulation Material |
XLPE |
|
Jacket |
PVC |
|
Working voltage |
3.6/6KV~26/35KV |
|
Number of cores |
1, 3 |
|
Cross section |
1.5mm$^2$-800mm$^2$ |
|
Armour |
SWA, STA, AWA, ATA |
|
Cable type |
Power cable/electrical cable/electric cable |
|
Operating Temperature |
90 °C |
|
Color |
Black |
|
Standard |
IEC60502, BS6346, GB/T12706, UL, VDE, AS/NZS, JIS, etc. |
|
Certificate |
ISO, UL, TUV, KEMA, CE |
|
Sample |
Offered for free |
|
Place of Origin |
Henan, China |
Packaging and Delivery
|
Attribute |
Detail |
|
Selling Units |
Single item |
|
Packaging Details |
Standard Export Wooden or Steel Drums or as per Customer's Requirement for 22kv 185mm$^2$ 300mm$^2$ copper cable XLPE insulated single core medium voltage cable |
|
Port of dispatch |
Tianjin port, Qingdao port, Shanghai port |
Supply Capacity
|
Attribute |
Detail |
|
Supply Ability |
500 kilometers per Month (XLPE power cable) |
22kv 185mm2 300mm2 copper cable XLPE insulated single core medium voltage cable
NYY cable, also known as PVC-insulated power cable, is designed for power transm

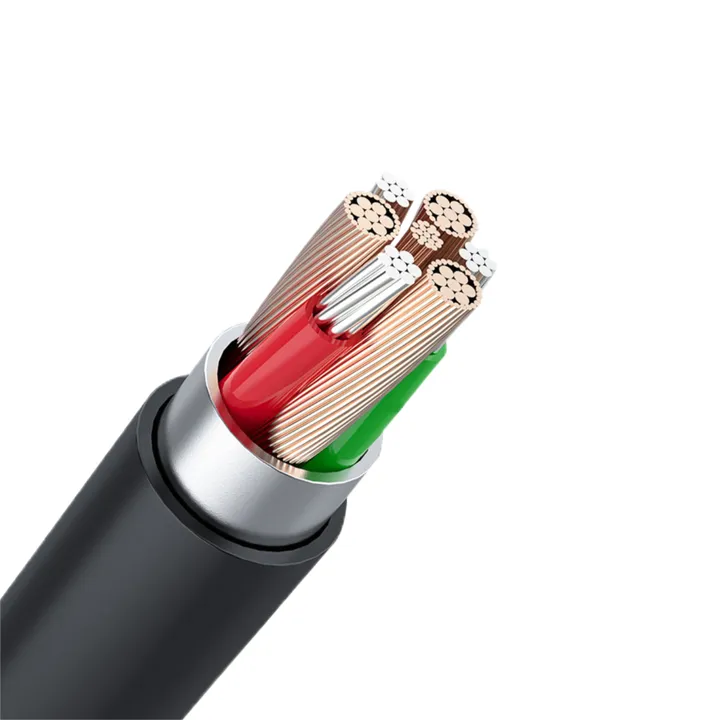

4C 50mm2 U1000 RO2V Xlpe Insulation PVC/LSZH Sheathed Power Cable
