Home / Product / Medium Voltage Power Cable / 12/20kV AL Armored Cable

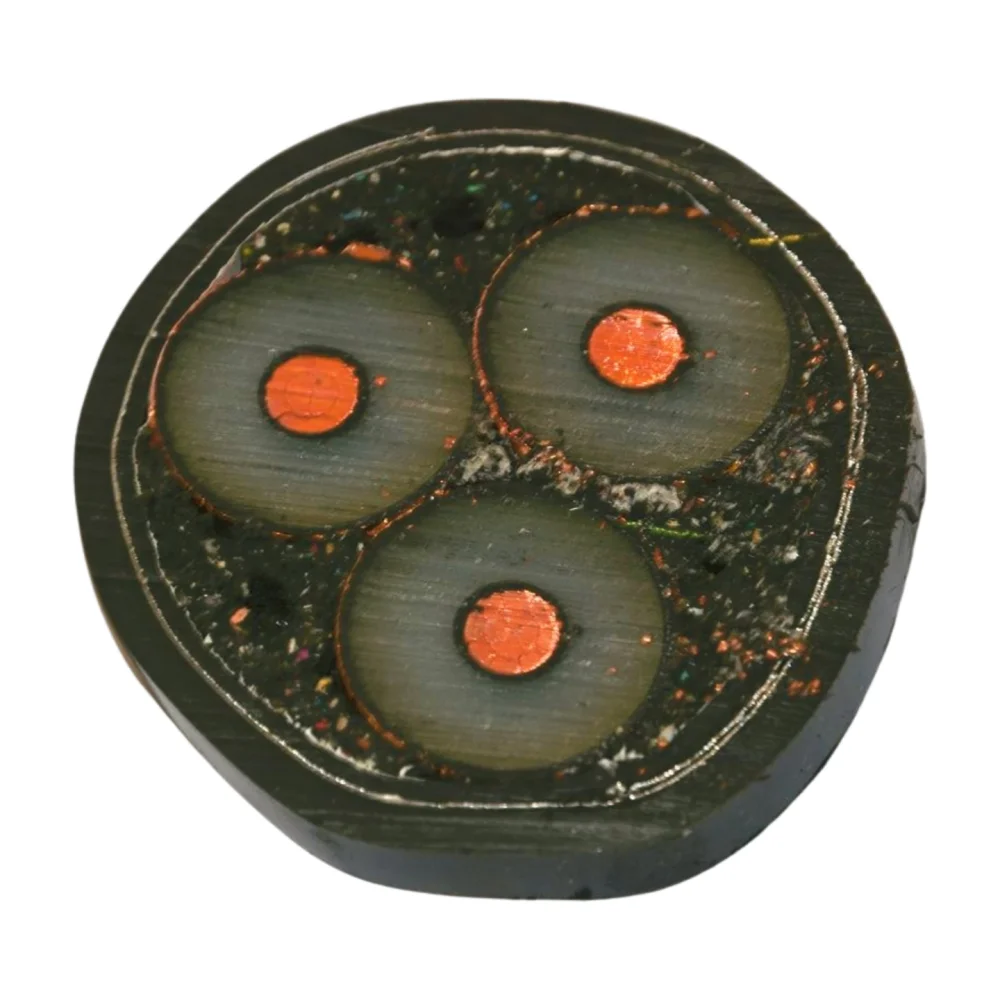

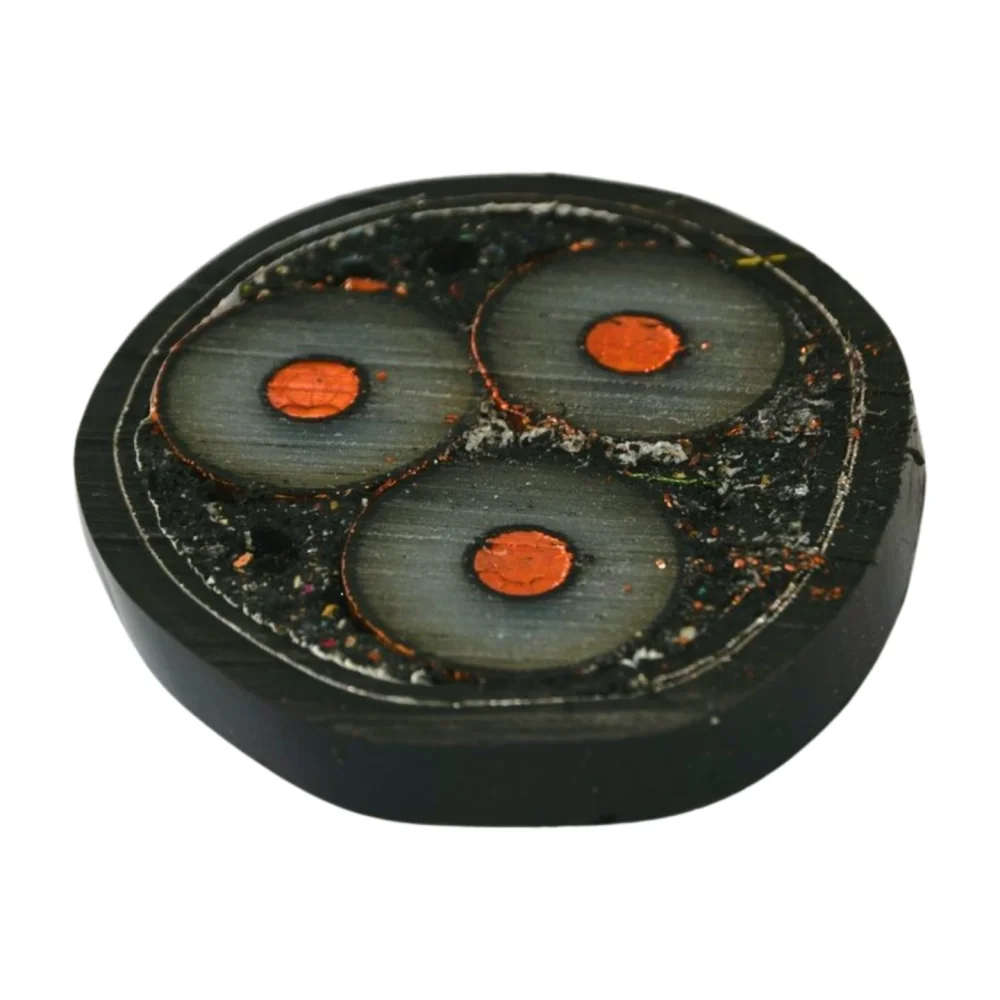

The three core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 1.8/3KV to 26/35KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.
| Attribute | Value |
|---|---|
| Industry-specific attributes | |
| Insulation Material | xlpe |
| Application | Construction |
| Conductor Material | Copper |
| Jacket | PVC |
| Other attributes | |
| Place of Origin | Henan, China |
| Brand Name | JianYun |
| Model Number | YJV22- AL/XLPE/PVC/STA |
| Type | Medium Voltage |
| Size | 3x120mm |
| Conductor | Copper |
| Insulation | PVC |
| Certificate | ISO9001/CCC |
| Core | 3 |
| Sheath | PVC Shealth |
| Voltage | 12/20Kv 18/35Kv |
| Material | XLPE/PVC + Aluminum |
| Model Number | YJV22- AL/XLPE/PVC/STA |
| Application | construction |
| Color | Black |
|
12/20KV
|
Double Steel Tape Armoured Cables
|
|||||
|
Nom. Cross-Section Area
|
Nom. Bedding Thickness
|
No. of Steel Tapes x Nom. Tape Thickness
|
Nom. Sheath Thickness
|
Approx. Overall Diameter
|
Approx. Weight
|
|
|
CU
|
AL
|
|||||
|
mm²
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
35
|
1.5
|
2x0.5
|
2.8
|
56.5
|
4975
|
4355
|
|
50
|
1.6
|
2x0.5
|
2.9
|
59
|
5495
|
4750
|
|
70
|
1.6
|
2x0.5
|
3
|
62.7
|
6490
|
5375
|
|
95
|
1.7
|
2x0.5
|
3.1
|
67.2
|
7735
|
6180
|
|
120
|
1.8
|
2x0.5
|
3.2
|
70.8
|
8890
|
6880
|
|
150
|
1.8
|
2x0.5
|
3.3
|
74
|
10010
|
7535
|
|
185
|
1.9
|
2x0.5
|
3.4
|
78.5
|
11600
|
8500
|
|
240
|
2
|
2x0.8
|
3.6
|
85.5
|
14870
|
10680
|
|
300
|
2.1
|
2x0.8
|
3.8
|
91.1
|
17400
|
12130
|
|
400
|
2.2
|
2x0.8
|
4
|
97.9
|
20820
|
14050
|
|
500
|
2.3
|
2x0.8
|
4.2
|
105.6
|
25050
|
16350
|
|
18/35KV
|
Double Steel Tape Armoured Cables
|
|||||
|
Nom. Cross-Section Area
|
Nom. Bedding Thickness
|
No. of Steel Tapes x Nom. Tape Thickness
|
Nom. Sheath Thickness
|
Approx. Overall Diameter
|
Approx. Weight
|
|
|
CU
|
AL
|
|||||
|
mm²
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
50
|
1.8
|
2x0.5
|
3.3
|
71.2
|
7300
|
6585
|
|
70
|
1.9
|
2x0.5
|
3.4
|
75
|
8390
|
7335
|
|
95
|
1.9
|
2x0.5
|
3.5
|
79.3
|
9740
|
8210
|
|
120
|
2
|
2x0.8
|
3.6
|
84.5
|
11845
|
9875
|
|
150
|
2.1
|
2x0.8
|
3.7
|
87.9
|
13120
|
10700
|
|
185
|
2.1
|
2x0.8
|
3.9
|
92.3
|
14850
|
11800
|
|
240
|
2.2
|
2x0.8
|
4
|
97.9
|
17480
|
13320
|
|
300
|
2.3
|
2x0.8
|
4.2
|
103.4
|
20080
|
14900
|
|
400
|
2.4
|
2x0.8
|
4.4
|
110.3
|
23660
|
17000
|
|
500
|
2.5
|
2x0.8
|
4.6
|
118
|
28080
|
19510
|
