Medium voltage (MV) power cables are essential components in modern electrical power distribution systems, designed to handle voltages ranging from 1kV to 35kV. They serve as the backbone for transmitting electrical energy between substations, transformers, and end-user equipment in both industrial and utility settings.
Home / Product / Medium Voltage Power Cable / CU/XLPE STA Armored Cable

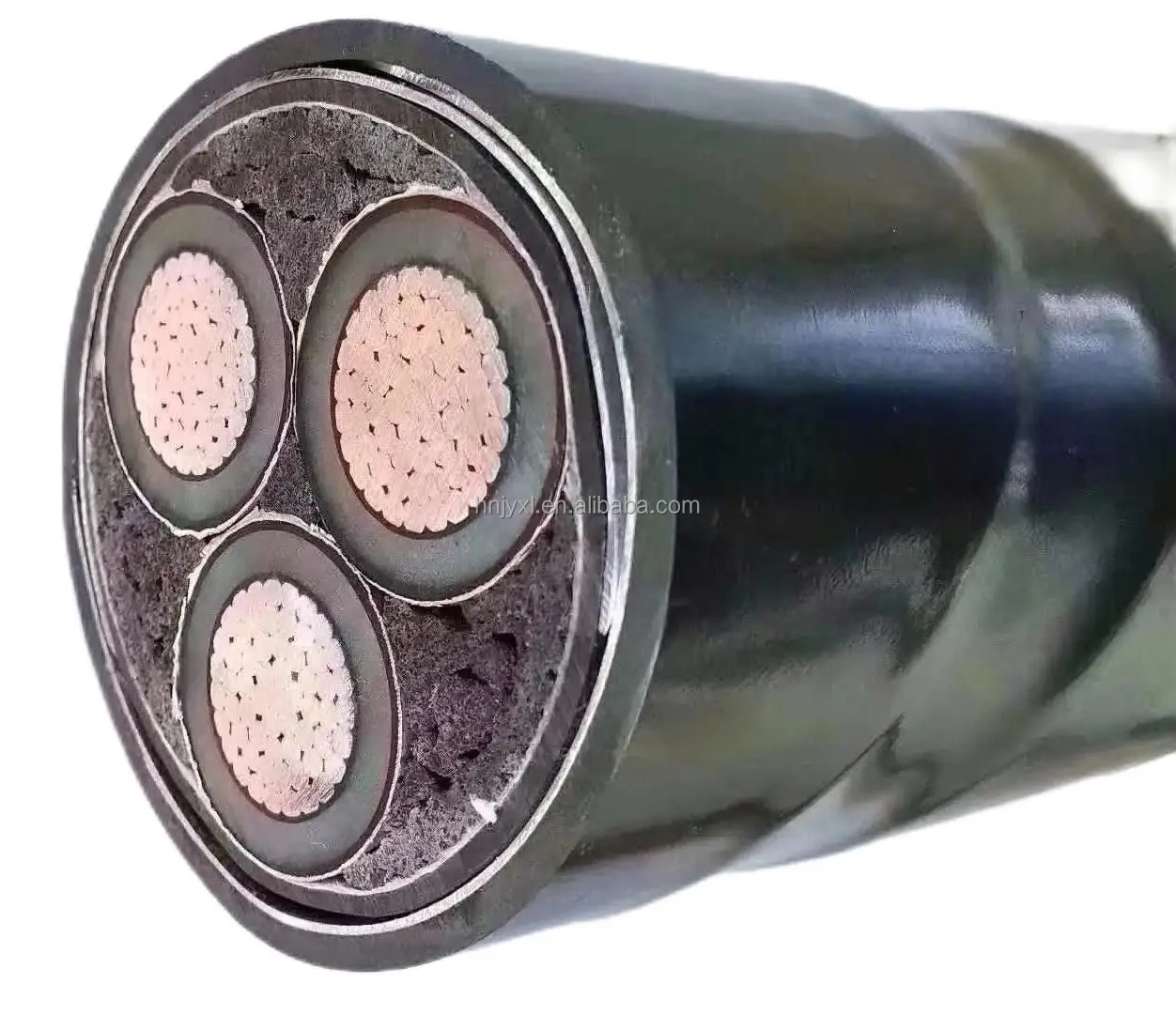

High-Quality Insulation: This CU/XLPE/STA/PVC 1.8/3Kv 3.6/6Kv Medium Voltage Armored Cable features a durable XLPE insulation material that ensures long-lasting performance and resistance to environmental factors, meeting the needs of various construction applications.
Durable Armor: The cable is equipped with a robust PVC sheath that provides excellent mechanical protection, safeguarding the internal conductors from damage and ensuring reliable operation in demanding environments.
Multi-Application: As a versatile power cable, it is suitable for a range of construction applications, including underground installations, and can be used in both 1.8/3Kv and 3.6/6Kv voltage systems.
Compliance with International Standards: This cable is manufactured in accordance with ISO 9001 and CCC standards, guaranteeing its quality and safety for use in various settings.
Customizable Size Options: Available in various sizes, including 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, and 120mm, this cable can be easily tailored to meet the specific needs of your project, whether it's for a small or large-scale construction project requested by a user.
| Attribute | Value |
|---|---|
| Industry-specific attributes | |
| Insulation Material | xlpe |
| Application | Construction |
| Conductor Material | Copper |
| Jacket | PVC |
| Other attributes | |
| Place of Origin | Henan, China |
| Brand Name | JianYun |
| Model Number | YJV22- CU/XLPE/STA/PVC |
| Type | Medium Voltage |
| Size | 3x120mm |
| Conductor | Copper |
| Insulation | XLPE |
| Certificate | ISO9001/CCC |
| Core | 3 |
| Sheath | PVC Shealth |
| Voltage | 1.8/3Kv 3.6/6Kv |
| Material | CU/XLPE/STA/PVC |
| Model Number | YJV22- CU/XLPE/STA/PVC |
| Application | construction |
| Color | Black |
| Packaging and delivery | |
| Selling Units: | Single item |
| Single package size: | 1X1X1 cm |
| Single gross weight: | 1.000 kg |
|
1.8/3KV
|
|
|||||
|
Nom. Cross- Section Area
|
Nom. Bedding Thickness
|
No. of Steel Tapes x Nom. Tape Thickness
|
Nom. Sheath Thickness
|
Approx. Overall Diameter
|
Approx. Weight
|
|
|
CU
|
AL
|
|||||
|
mm²
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
10
|
1.2
|
2 x 0.2
|
1.8
|
23.6
|
925
|
750
|
|
16
|
1.2
|
2 x 0.2
|
1.8
|
26.2
|
1205
|
925
|
|
25
|
1.2
|
2 x 0.2
|
1.9
|
29
|
1590
|
1145
|
|
35
|
1.2
|
2 x 0.2
|
1.9
|
31.6
|
1985
|
1370
|
|
50
|
1.2
|
2 x 0.2
|
2
|
34.1
|
2400
|
1605
|
|
70
|
1.2
|
2 x 0.5
|
2.2
|
39.5
|
3570
|
2410
|
|
95
|
1.3
|
2 x 0.5
|
2.3
|
43.7
|
4570
|
2950
|
|
120
|
1.3
|
2 x 0.5
|
2.4
|
46.1
|
5510
|
3440
|
|
150
|
1.4
|
2 x 0.5
|
2.6
|
50.6
|
6500
|
3955
|
|
185
|
1.5
|
2 x 0.5
|
2.7
|
54.9
|
7825
|
4650
|
|
240
|
1.6
|
2 x 0.5
|
2.8
|
60
|
9825
|
5600
|
|
300
|
1.6
|
2 x0.5
|
3
|
65.4
|
12030
|
6660
|
|
400
|
1.8
|
2 x 0.5
|
3.2
|
71.8
|
14970
|
8055
|
|
500
|
1.8
|
2 x 0.8
|
3.5
|
80.5
|
18880
|
10035
|
|
630
|
1.8
|
2 x 0.8
|
3.8
|
92.3
|
25070
|
13620
|
|
3.6/6KV
|
|
|||||
|
Nom. Cross- Section Area
|
Nom. Bedding Thickness
|
No. of Steel tapes x Nom. Tape Thickness
|
Nom. Sheath Thickness
|
Approx. Overall Diameter
|
Approx. Weight
|
|
|
CU
|
AL
|
|||||
|
mm²
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
10
|
1.2
|
2X0.2
|
1.8
|
26
|
1060
|
885
|
|
16
|
1.2
|
2X0.2
|
1.8
|
28.3
|
1340
|
1055
|
|
25
|
1.2
|
2X0.2
|
1.9
|
31.3
|
1735
|
1305
|
|
35
|
1.3
|
2X0.2
|
2
|
34.1
|
2170
|
1555
|
|
50
|
1.3
|
2X0.5
|
2.1
|
38
|
2950
|
2170
|
|
70
|
1.4
|
2X0.5
|
2.3
|
41.8
|
3795
|
2635
|
|
95
|
1.5
|
2X0.5
|
2.4
|
46.1
|
4810
|
3200
|
|
120
|
1.5
|
2X0.5
|
2.5
|
49.5
|
5770
|
3705
|
|
150
|
1.6
|
2X0.5
|
2.6
|
52.9
|
6775
|
4235
|
|
185
|
1.6
|
2X0.5
|
2.8
|
57.2
|
8120
|
4950
|
|
240
|
1.8
|
2X0.5
|
2.9
|
63
|
10250
|
6025
|
|
300
|
1.9
|
2X0.5
|
3.1
|
69
|
12570
|
7200
|
|
400
|
2
|
2X0.5
|
3.4
|
76.7
|
15740
|
8870
|
|
500
|
2.1
|
2X0.8
|
3.6
|
86.5
|
20550
|
11750
|
|
630
|
2.2
|
2X0.8
|
3.9
|
96
|
25830
|
14400
|
