Medium voltage (MV) power cables are essential components in modern electrical power distribution systems, designed to handle voltages ranging from 1kV to 35kV. They serve as the backbone for transmitting electrical energy between substations, transformers, and end-user equipment in both industrial and utility settings.
Home / Product / Medium Voltage Power Cable / Fire-Resistant AL/XLPE Underground Cable

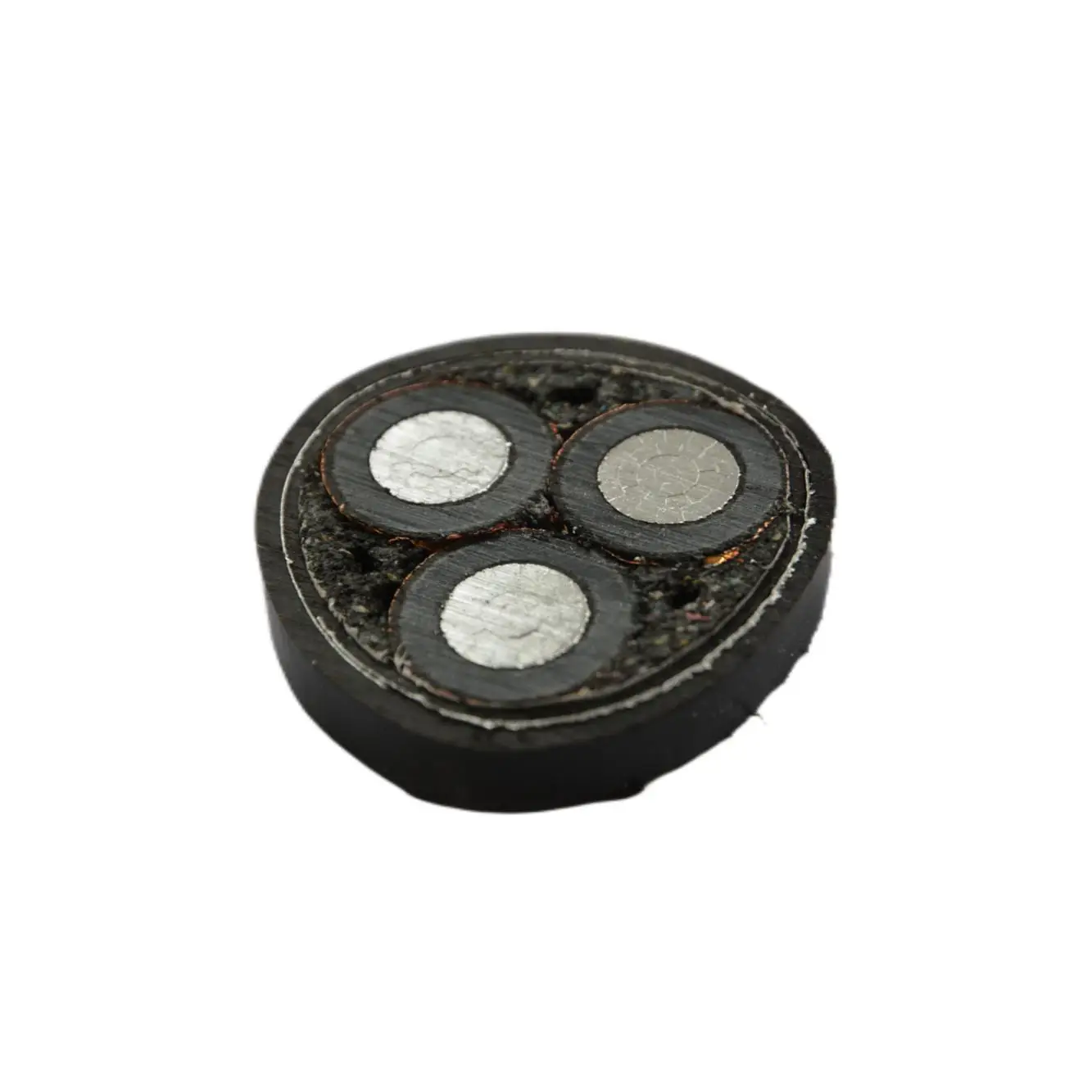

The three core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 1.8/3KV to 26/35KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.
| Key attributes | |
|---|---|
Industry-specific attributes |
|
| Type | Medium Voltage |
| Voltage | 1.8/3Kv |
| Conductor Material | Aluminum |
| Insulation Material | xlpe |
| Jacket | PVC |
| Application | Construction |
Other attributes |
|
| Model Number | YJLV22- AL/XLPE/PVC/STA |
| Size | 3x70mm |
| Conductor | Alulminum |
| Insulation | PVC |
| Core | 3 |
| Sheath | PVC Shealth |
| Material | AL/XLPE/PVC/STA |
| Color | Black |
| Certificate | ISO9001/CCC |
| Place of Origin | Henan, China |
| Brand Name | JianYun |
Packaging and delivery |
|
| Selling Units: | Single item |
| Single package size: | 1X1X1 cm |
| Single gross weight: | 1.000 kg |
|
1.8/3KV
|
|
|||||
|
Nom. Cross- Section Area
|
Nom. Bedding Thickness
|
No. of Steel Tapes x Nom. Tape Thickness
|
Nom. Sheath Thickness
|
Approx. Overall Diameter
|
Approx. Weight
|
|
|
CU
|
AL
|
|||||
|
mm²
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
10
|
1.2
|
2 x 0.2
|
1.8
|
23.6
|
925
|
750
|
|
16
|
1.2
|
2 x 0.2
|
1.8
|
26.2
|
1205
|
925
|
|
25
|
1.2
|
2 x 0.2
|
1.9
|
29
|
1590
|
1145
|
|
35
|
1.2
|
2 x 0.2
|
1.9
|
31.6
|
1985
|
1370
|
|
50
|
1.2
|
2 x 0.2
|
2
|
34.1
|
2400
|
1605
|
|
70
|
1.2
|
2 x 0.5
|
2.2
|
39.5
|
3570
|
2410
|
|
95
|
1.3
|
2 x 0.5
|
2.3
|
43.7
|
4570
|
2950
|
|
120
|
1.3
|
2 x 0.5
|
2.4
|
46.1
|
5510
|
3440
|
|
150
|
1.4
|
2 x 0.5
|
2.6
|
50.6
|
6500
|
3955
|
|
185
|
1.5
|
2 x 0.5
|
2.7
|
54.9
|
7825
|
4650
|
|
240
|
1.6
|
2 x 0.5
|
2.8
|
60
|
9825
|
5600
|
|
300
|
1.6
|
2 x0.5
|
3
|
65.4
|
12030
|
6660
|
|
400
|
1.8
|
2 x 0.5
|
3.2
|
71.8
|
14970
|
8055
|
|
500
|
1.8
|
2 x 0.8
|
3.5
|
80.5
|
18880
|
10035
|
|
630
|
1.8
|
2 x 0.8
|
3.8
|
92.3
|
25070
|
13620
|
|
3.6/6KV
|
|
|||||
|
Nom. Cross- Section Area
|
Nom. Bedding Thickness
|
No. of Steel tapes x Nom. Tape Thickness
|
Nom. Sheath Thickness
|
Approx. Overall Diameter
|
Approx. Weight
|
|
|
CU
|
AL
|
|||||
|
mm²
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
10
|
1.2
|
2X0.2
|
1.8
|
26
|
1060
|
885
|
|
16
|
1.2
|
2X0.2
|
1.8
|
28.3
|
1340
|
1055
|
|
25
|
1.2
|
2X0.2
|
1.9
|
31.3
|
1735
|
1305
|
|
35
|
1.3
|
2X0.2
|
2
|
34.1
|
2170
|
1555
|
|
50
|
1.3
|
2X0.5
|
2.1
|
38
|
2950
|
2170
|
|
70
|
1.4
|
2X0.5
|
2.3
|
41.8
|
3795
|
2635
|
|
95
|
1.5
|
2X0.5
|
2.4
|
46.1
|
4810
|
3200
|
|
120
|
1.5
|
2X0.5
|
2.5
|
49.5
|
5770
|
3705
|
|
150
|
1.6
|
2X0.5
|
2.6
|
52.9
|
6775
|
4235
|
|
185
|
1.6
|
2X0.5
|
2.8
|
57.2
|
8120
|
4950
|
|
240
|
1.8
|
2X0.5
|
2.9
|
63
|
10250
|
6025
|
|
300
|
1.9
|
2X0.5
|
3.1
|
69
|
12570
|
7200
|
|
400
|
2
|
2X0.5
|
3.4
|
76.7
|
15740
|
8870
|
|
500
|
2.1
|
2X0.8
|
3.6
|
86.5
|
20550
|
11750
|
|
630
|
2.2
|
2X0.8
|
3.9
|
96
|
25830
|
14400
|
