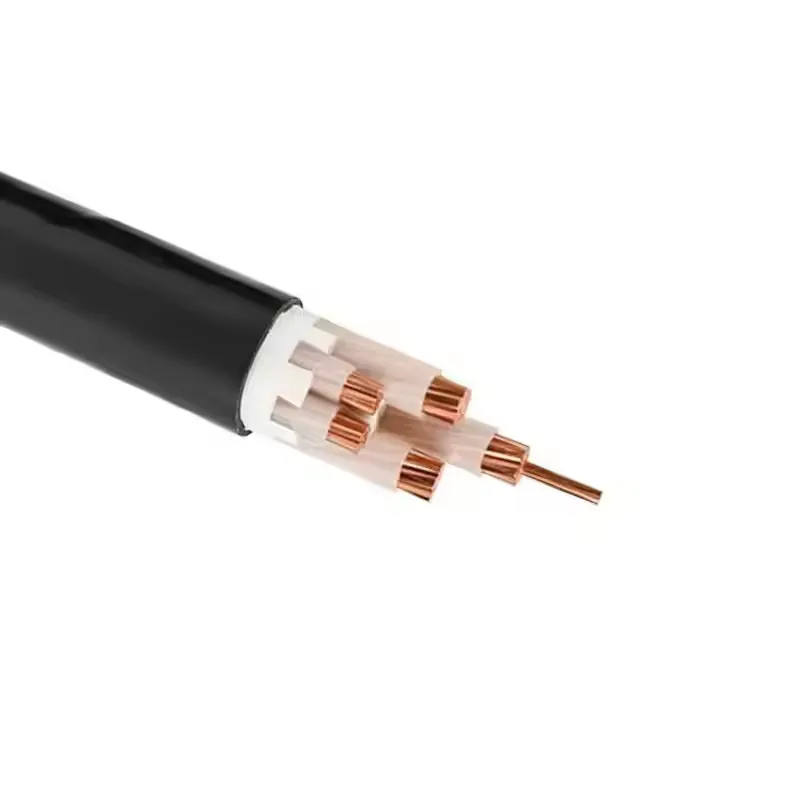

N2XY Power Cable (0.6/1kV, 5 Core, Copper, XLPE, Unarmoured)

N2XY Power Cable (0.6/1kV, 5 Core, Copper, XLPE, Unarmoured)

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Send Email Get Best Price
  • Details

Key attributes

Industry-specific attributes

Attribute Value
Insulation Material xlpe
Application Industrial
Conductor Material Copper
Jacket PVC

Other attributes

Attribute Value
Place of Origin Henan, China
Brand Name JianYun
Model Number YJV
Type LOW VOLTAGE
Size 5 CORE
Product name 0.6/1kV 5 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable
Standard GB12706, IEC60502
Conductor Pure Copper
Voltage 0.6/1kV
Color Black
Insulation XLPE
Certificate CCC
Core



PRODUCT DETAIL

0.6/1kV 5 Core 6mm 16mm 25mm 35mm -240mm Copper Conductor Xlpe Insulation Unarmoured Power Cable

Construction

Conductors
The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper in accordance with IEC 60228.

Insulation
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Outer Sheath
Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1

Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Product Paramenters

No. of cores and nominal cross section
Thickness of Insulation
Thickness of Sheath
Approx. overall Diameter
Approx. weight
Max. DC resistance of conductor（20℃）
Current carrying capacity
(mm2)
(mm)
(mm)
(mm)
(kg/km)
(Ω/km)
In Air(A)
In Ground(A)
5X1.5
0.7
1.8
11.7
170
12.1
21
30
5X2.5
0.7
1.8
12.8
250
7.41
28
39
5X4
0.7
1.8
14
330
4.61
37
51
5X6
0.7
1.8
15.4
460
3.08
47
64
5X10
0.7
1.8
18.8
700
1.83
65
86
5X16
0.7
1.8
21.8
1000
1.15
84
110
5X25
0.9
1.8
26.2
1540
0.727
110
140
5X35
0.9
1.8
28
2080
0.524
135
170
5X50
1
1.9
32.4
2760
0.387
170
205
5X70
1.1
2.1
37.4
3890
0.268
215
250
5X95
1.1
2.2
41.7
5120
0.193
265
300
5X120
1.2
2.4
46.2
6530
0.153
310
345
5X150
1.4
2.6
53.1
8000
0.124
350
385
5X185
1.6
2.8
58.9
9800
0.0991
405
435
5X240
1.7
3
65.6
12400
0.0754
480
500
5X300
1.8
3.2
72
15450
0.0601
555
565
