Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.
Home / Product / Low Voltage Power Cable / 0.6/1kV Armored Cable (CU/XLPE/PVC/STA)
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
|

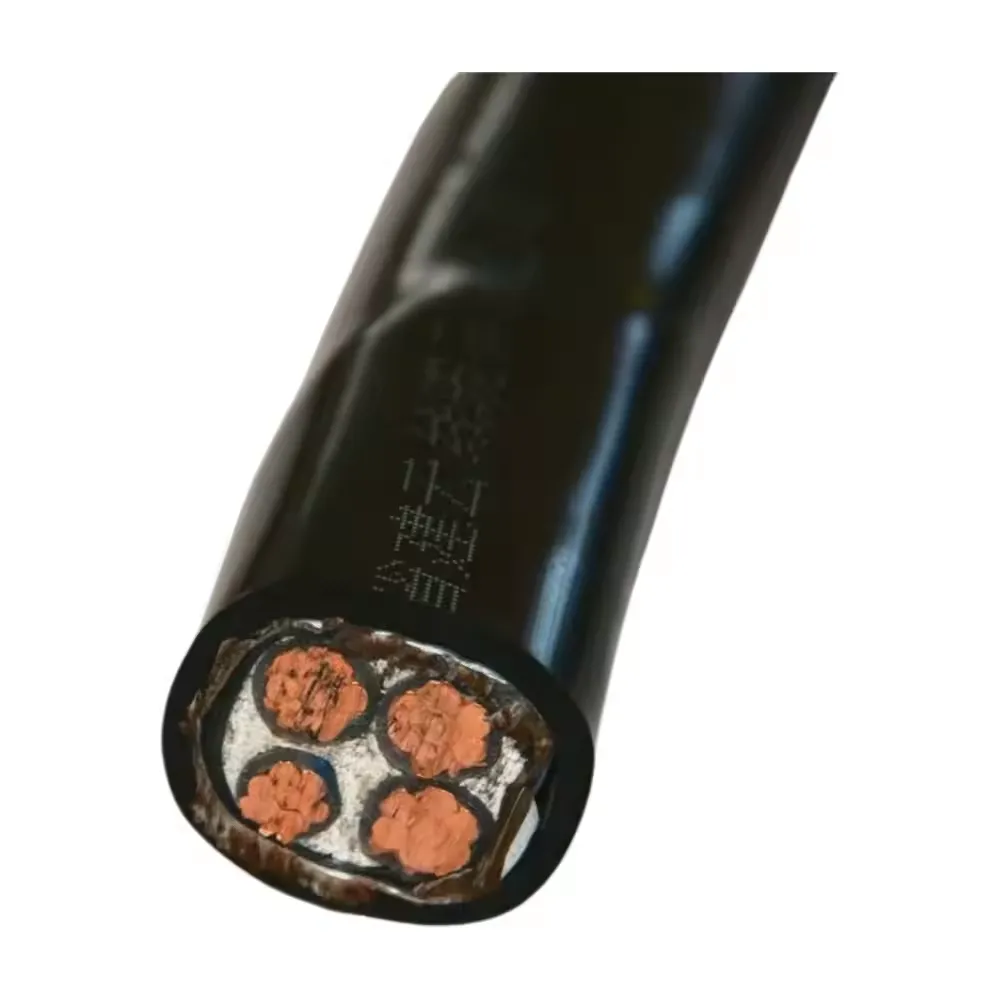

0.6/1kV-4 core Copper conductor XLPE insulated steel tape armored PVC sheathed power cable
|
||||||||
|
Nominal cross sectional area
|
Insulation thickness
|
Non-magnetic steel tape thickness
|
Sheath thickness
|
Approximate outer diameter
|
Approx.
|
Max.D.C resistance of conductor（20℃）
|
Current carrying capacity
|
|
|
weight
|
||||||||
|
mm2
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
Ω/km
|
In Air(A)
|
In Ground(A)
|
|
4X2.5
|
0.7
|
0.2
|
1.8
|
14.7
|
288
|
12.1
|
-
|
23
|
|
4X4
|
0.7
|
0.2
|
1.8
|
15.8
|
334
|
7.41
|
-
|
30
|
|
4X6
|
0.7
|
0.2
|
1.8
|
17
|
384
|
4.61
|
-
|
38
|
|
4X10
|
0.7
|
0.2
|
1.8
|
20
|
509
|
3.08
|
50
|
47
|
|
4X16
|
0.9
|
0.2
|
1.8
|
22.7
|
649
|
1.91
|
64
|
62
|
|
4X25
|
0.9
|
0.2
|
1.8
|
26.7
|
880
|
1.2
|
86
|
78
|
|
4X35
|
0.9
|
0.2
|
1.8
|
28.3
|
1040
|
0.868
|
105
|
94
|
|
4X50
|
1
|
0.2
|
2.1
|
32
|
1365
|
0.641
|
125
|
110
|
|
4X70
|
1.1
|
0.5
|
2.1
|
38.5
|
2138
|
0.443
|
165
|
135
|
|
4X95
|
1.1
|
0.5
|
2.3
|
42.9
|
2638
|
0.32
|
200
|
160
|
|
4X120
|
1.2
|
0.5
|
2.4
|
47.4
|
3202
|
0.253
|
235
|
185
|
|
4X150
|
1.4
|
0.5
|
2.6
|
52.3
|
3847
|
0.206
|
270
|
205
|
|
4X185
|
1.6
|
0.5
|
2.7
|
57.5
|
4585
|
0.164
|
310
|
235
|
|
4X240
|
1.7
|
0.5
|
3
|
64.3
|
5709
|
0.125
|
365
|
260
|
|
4X300
|
1.8
|
0.5
|
3.1
|
70.3
|
6805
|
0.1
|
420
|
290
|
