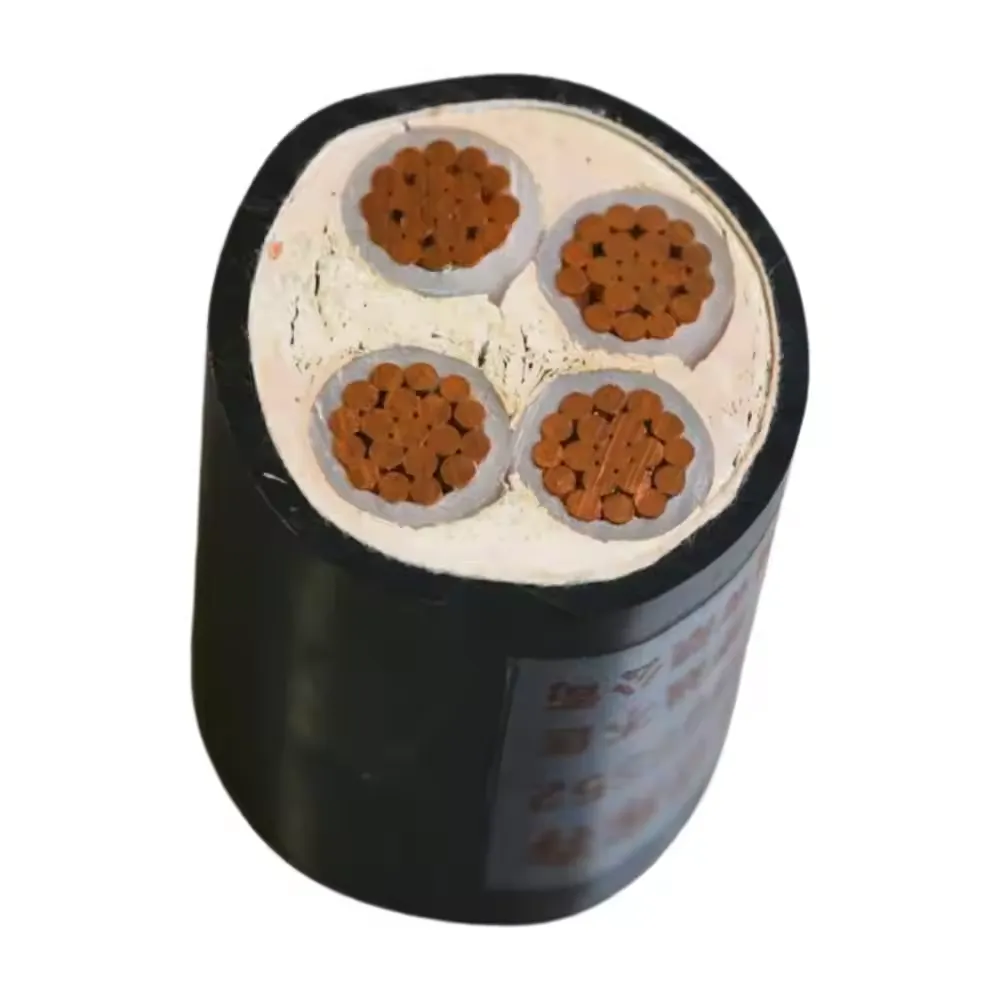

0.6/1kV 4C Cu/XLPE/PVC Cable for Urban Networks

0.6/1kV 4C Cu/XLPE/PVC Cable for Urban Networks

Low Voltage 0.6/1kV 4 Cores Copper Conductor 4*95mm 4*120mm XLPE Insulation PVC Sheath for Urban Power Network

Send Email Get Best Price
  • Details

Key attributes

Industry-specific attributes

Attribute Value
Insulation Material xlpe
Application Construction, Power Distribution
Conductor Material Copper
Jacket PVC

Other attributes

Attribute Value
Place of Origin Henan, China
Working Temperature 90°C
Rated Voltage 0.6/1
Rated Current 30A
Brand Name Jianyun
Model Number YJV22
Type LOW VOLTAGE
Size Customized (25mm 50mm 95mm 120mm )
Product name Copper Core XLPE Insulated PVC Sheath Power Cable
Conductor Copper Stranded
Rated voltage 0.6/1KV
Standard GB/T12706-2008; IEC60502-1:1997

Product descriptions from the supplier

Warning/Disclaimer
California Proposition 65 Consumer WarningView more

PRODUCT DETAIL

600/1000V Copper Conductor 4 Core 25mm 35mm 50mm 70mm 95mm 120mm 185mm 240mm 300mm XLPE Insulated Cables

Construction

Conductors
The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper in accordance with IEC 60228.

Insulation
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Outer Sheath
Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1

Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Product Paramenters
Nominal Cross Section
Diameter of Conductor (Approx.)
Nominal Insulation Thickness
Nominal Sheath Thickness
Overall Diameter (Approx.)
mm^2
mm
mm
mm
mm
4x1.5
1.4
0.7
1.8
10.4
4x2.5
1.8
0.7
1.8
11.3
4x4
2.3
0.7
1.8
12.5
4x6
2.8
0.7
1.8
13.7
4x10
3.6
0.7
1.8
15.7
4x16
4.5
0.7
1.8
17.8
4x25
5.6
0.9
1.8
21.5
4x35
6.7
0.9
1.8
24.1
4x50
8
1
1.8
27.8
4x70
9.4
1.1
2
32
4x95
11
1.1
2.1
36.1
4x120
12.4
1.2
2.3
40.2
4x150
13.8
1.4
2.4
44.9
4x185
15.3
1.6
2.6
49.8
4x240
17.5
1.7
2.8
56
4x300
19.5
1.8
3
61.7
4x400
22.6
2
3.2
70.7
