Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.
Home / Product / Low Voltage Power Cable / 4 Core Copper Armoured Power Cable (XLPE, 10-150mm²)

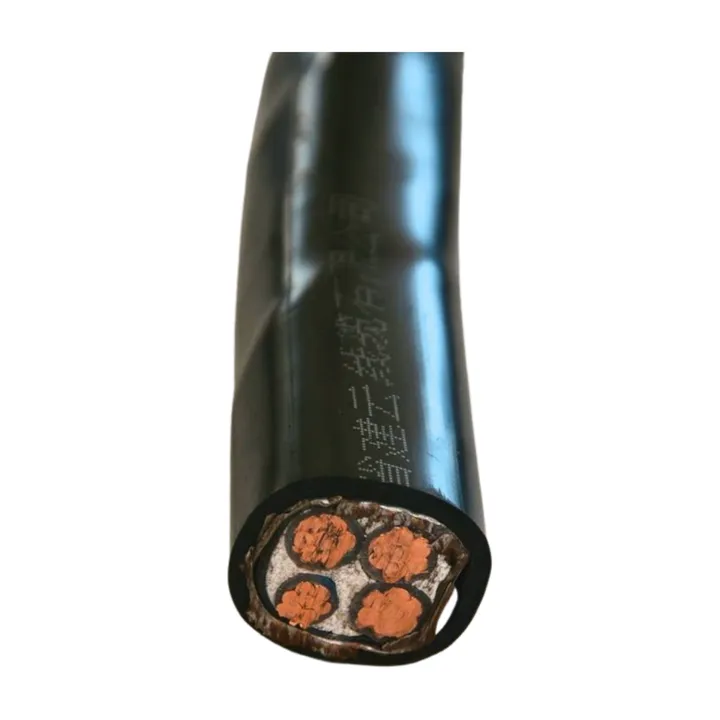

Copper Conductor 10mm 16mm 25mm 35mm 50mm 70mm 95mm 120mm 150mm XLPE 4 Core Armoured Power Cable
|
Insulation Material |
xlpe |
|
Application |
Industrial |
|
Conductor Material |
Copper |
|
Jacket |
PVC |
|
Place of Origin |
Henan, China |
|
Working Temperature |
90°C, 70°C |
|
Rated Voltage |
0.6/1KV |
|
Rated Current |
16A, 30A |
|
Brand Name |
JianYun |
|
Model Number |
YJV 22 |
|
Type |
LOW VOLTAGE |
|
Size |
4 CORE |
|
Product name |
Low Voltage CU SWA or STA PVC XLPE Copper Cable Prices |
|
Standard |
GB12706, IEC60502 |
|
Conductor |
Pure Copper |
|
Voltage |
0.6/1kV |
|
Color |
Black |
|
Insulation |
XLPE |
|
Armor |
Steel Tape(sta)/SWA |
|
Certificate |
CCC |
|
Application |
Power Transmission |
|
Package |
Wooden Durm |
|
Conductor Areamm2 |
Allowed continuous current capacity in air（A） |
Allowed continuous current capacity in soil（A） |
||
|
Copper core cable |
Aluminum core cable |
Copper core cable |
Aluminum core cable |
|
|
Multi core |
Multi core |
Multi core |
Multi core |
|
|
4 |
41 |
32 |
41 |
32 |
|
6 |
52 |
42 |
52 |
42 |
|
10 |
70 |
53 |
69 |
53 |
|
16 |
91 |
70 |
90 |
71 |
|
25 |
118 |
91 |
117 |
91 |
|
35 |
150 |
114 |
143 |
113 |
|
50 |
182 |
146 |
169 |
134 |
|
70 |
228 |
178 |
208 |
165 |
|
95 |
273 |
214 |
247 |
195 |
|
120 |
314 |
246 |
282 |
221 |
|
150 |
360 |
278 |
321 |
247 |
|
185 |
410 |
319 |
356 |
278 |
|
240 |
483 |
378 |
408 |
321 |
|
300 |
552 |
419 |
469 |
365 |
