Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.

Home / Product / Low Voltage Power Cable / LV Copper Power Cable (0.6/1kV, XLPE/PVC, 1-5 Core, 16-50mm²)

LV Copper Power Cable (0.6/1kV, XLPE/PVC, 1-5 Core, 16-50mm²)

LV Copper Power Cable (0.6/1kV, XLPE/PVC, 1-5 Core, 16-50mm²)

0.6/1KV Low Voltage XLPE Insulated PVC Sheath 1-5 Core 16 25 35 50 mm Copper Cable Vietnam Thailand Cambodia

  • Details

Key attributes

Industry-specific attributes

Insulation Material

xlpe

Application

Industrial

Conductor Material

Copper

Jacket

PVC

Other attributes

Place of Origin

Henan, China

Working Temperature

90°C, 70°C

Rated Voltage

0.6 kV, 1 kV

Rated Current

16A, 30A

Brand Name

JYXL

Model Number

YJV

Type

LOW VOLTAGE

Size

1-5 COREs

Product name

600/1000V XLPE insulated PVC sheath 1-5 Cores 50mm Copper Cable

Standard

GB12706, IEC60502

Conductor

Pure Copper

Voltage

0.6/1kV

Color

Black

Insulation

XLPE

Certificate

CCC

Core

1-5 CORES

Application

Power Transmission and Distribution

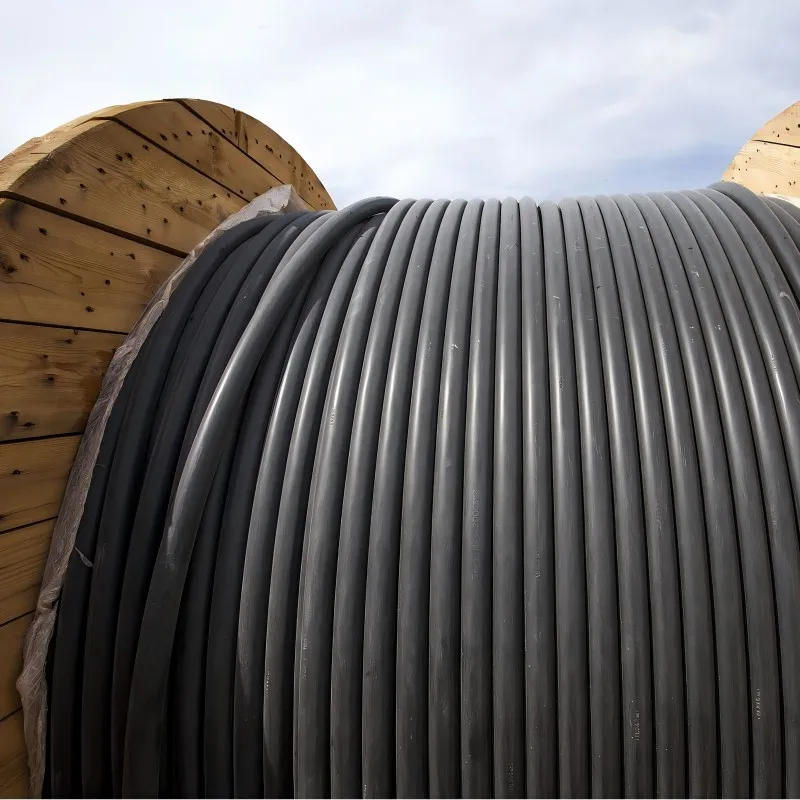

Package

Wooden Durm

 Product descriptions from the supplier





PRODUCT DETAIL

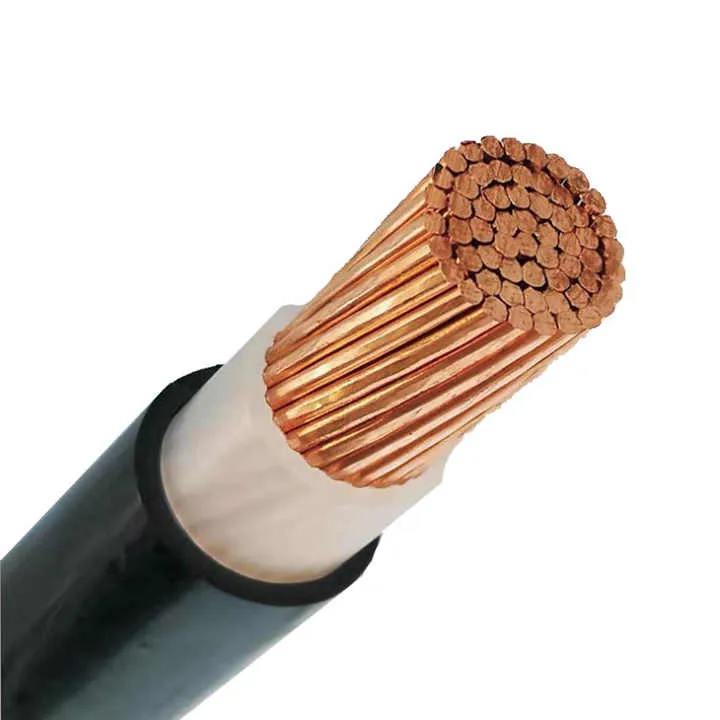

600/1000V Low Voltage XLPE insulated PVC sheath 1Core 50mm Copper Cable

Construction


Conductors
The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper in accordance with IEC 60228.


Insulation
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.



Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1

Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Product Paramenters

Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation Thickness

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weight of Cable (Approx.)

mm2

mm

mm

mm

mm

Kg/Km

1x1.5

1.6

0.7

1.4

6

50

1x2.5

2

0.7

1.4

6.5

70

1x4

2.6

0.7

1.4

7

80

1x6

3.1

0.7

1.4

7.5

110

1x10

4

0.7

1.4

8.5

150

1x16

5

0.7

1.4

9.5

215

1x25

6.3

0.9

1.4

11.5

315

1x35

7.4

0.9

1.4

12

415

1x50

8.8

1

1.4

13

555

1x70

10.6

1.1

1.4

15

760

1x95

12.4

1.1

1.5

17

1025

1x120

14

1.2

1.5

18.5

1270

1x150

15.5

1.4

1.6

21.5

1575

1x185

17.4

1.6

1.6

23

1955

1x240

20.3

1.7

1.7

26

2470

1x300

22.7

1.8

1.8

28

3155

1x400

25.4

2

1.9

32

4049

1x500

28.8

2.2

2

36

5100

1x630

30.4

2.4

2.2

40

6410
