Low Voltage Power Cable
Low Voltage Power Cable

Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.

Home / Product / Low Voltage Power Cable / LV Copper Power Cable (4+1 Core, XLPE/PVC)

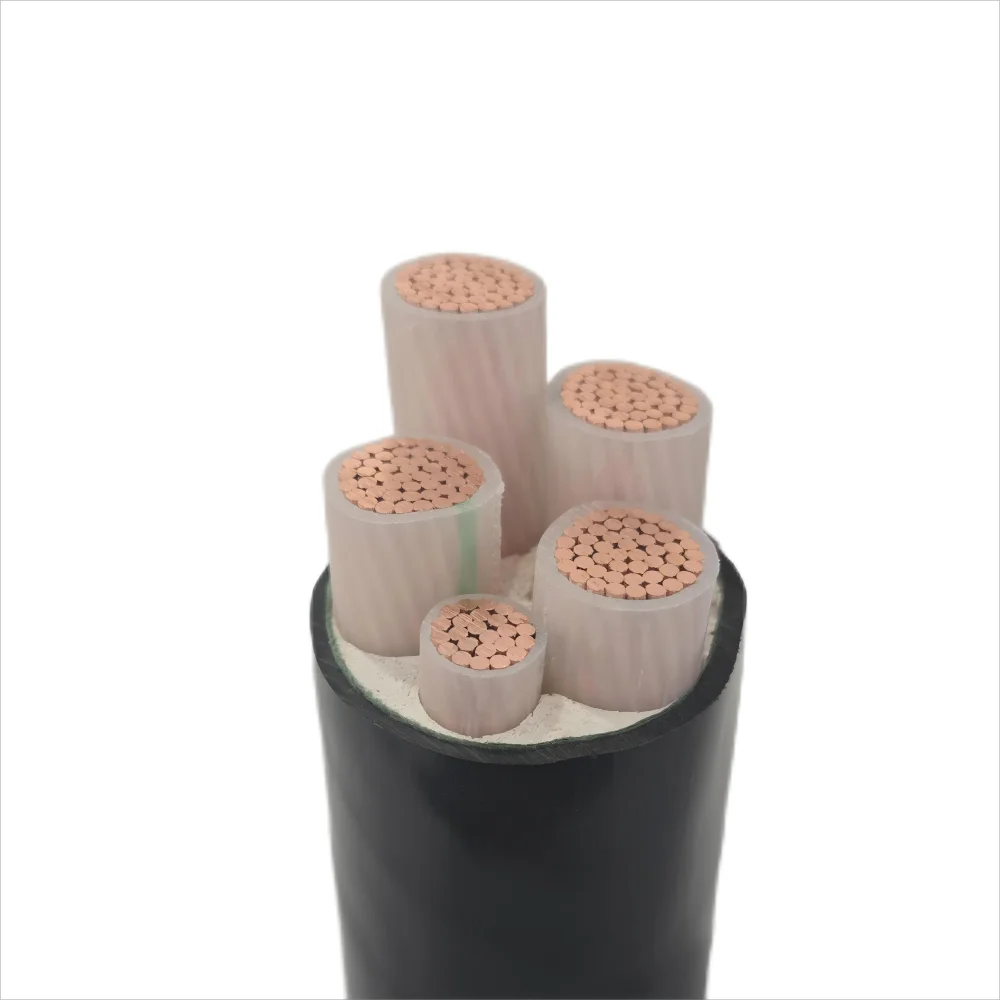

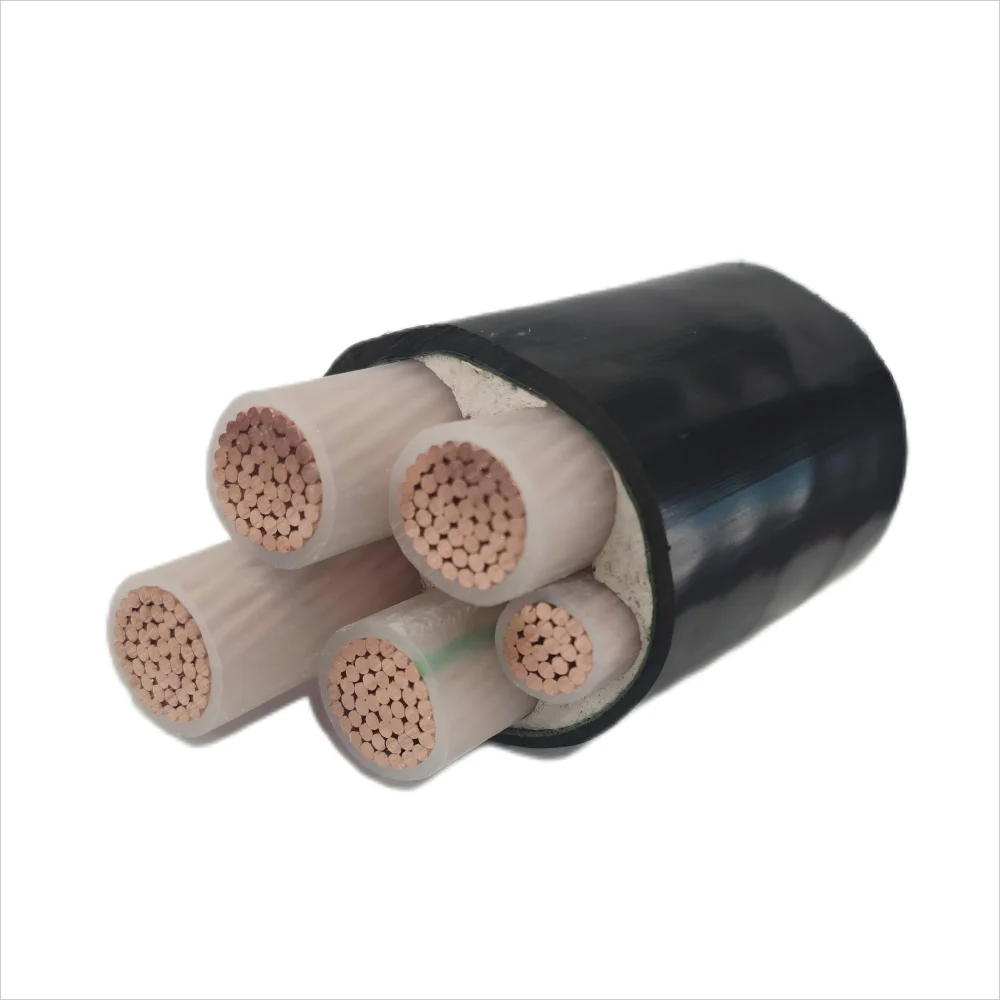

LV Copper Power Cable (4+1 Core, XLPE/PVC)

LV Copper Power Cable (4+1 Core, XLPE/PVC)

0.6/1kV Copper Conductor PVC Sheath XLPE Insulated 4+1 Core Power Cable

Send Email Get Best Price
  • Details

Key attributes

Industry-specific attributes

Insulation Material

PVC

Application

Construction

Conductor Material

Copper,Aluminum

Jacket

xlpe

Other attributes

Place of Origin

Henan, China

Working Temperature

90°C, 70°C

Rated Voltage

0.6/1KV

Rated Current

based

Brand Name

JianYun

Model Number

YJV

Type

LOW VOLTAGE

Size

Customized

TYPE

Copper Conductor PVC Sheath XLPE Insulated 4+1 Core Power Cable

Color

Black

Conductor

Pure Copper or Alulminum

Insulation

XLPE PE PVC

Certificate

ISO9001/CCC

Rated voltage

0.6/1 KV

Standard

GB/T12706

Material

PVC+Copper

Core

Single-core ,Multi-core

Sheath

PVC Shealth

Product descriptions from the supplier



PRODUCT DETAIL

Low Voltage Copper Conductor PVC Sheath XLPE Insulated 3+1 Core Unarmored Cable

Construction


Conductors
The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper in accordance with IEC 60228.


Insulation
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.



Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1

Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Product Paramenters

Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation Thickness

Nominal Sheath Thickness

Overall Diameter (Approx.)

mm^2

(3)mm

(1)mm

(3)mm

(1)mm

mm

mm

3x 16/10

4.5

3.6

0.7

0.7

1.8

17.5

3x 25/16

5.6

4.5

0.9

0.7

1.8

21.2

3x 35/16

6.7

4.5

0.9

0.7

1.8

23.8

3x 50/25

8

5.6

1

0.9

1.8

27.5

3x 70/35

9.4

6.7

1.1

0.9

2

31.7

3x 95/50

11

8

1.1

1

2.1

35.8

3x120/70

12.4

9.4

1.2

1.1

2.3

39.9

3x150/70

13.8

9.4

1.4

1.1

2.4

44.6

3x185/95

15.3

11

1.6

1.1

2.6

49.5

3x240/120

17.5

12.4

1.7

1.2

2.8

55.7

3x300/150

19.5

13.8

1.8

1.4

3

61.4

3x400/185

22.6

15.3

2

1.6

3.2

70.4
