PVC Insulated Copper Cable for Middle East Markets

300/500V Pure Copper Conductor PVC Insulated PVC Sheathed Industry Application Mid East Markets

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Product name	PVC Insulated PVC Sheathed Flexible RVV Cable
Brand Name	JYXL
Model Number	N/A
Type	N/A
Application	Industrial
Usage	light or medium size home appliances, instrument
Conductor Material	Copper
Insulation Material	XLPE
Jacket	PVC
Rated Voltage	300/300V, 300/500V
Voltage	300/300V, 300/500V
Colors	black
Size	1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm²
Temperature range	0-70°C
Certificate	IEC
Standard	GB/T5023-1997
MOQ	500 meters
Place of Origin	China

Packaging and Delivery

Attribute	Detail
Selling Units	Single item

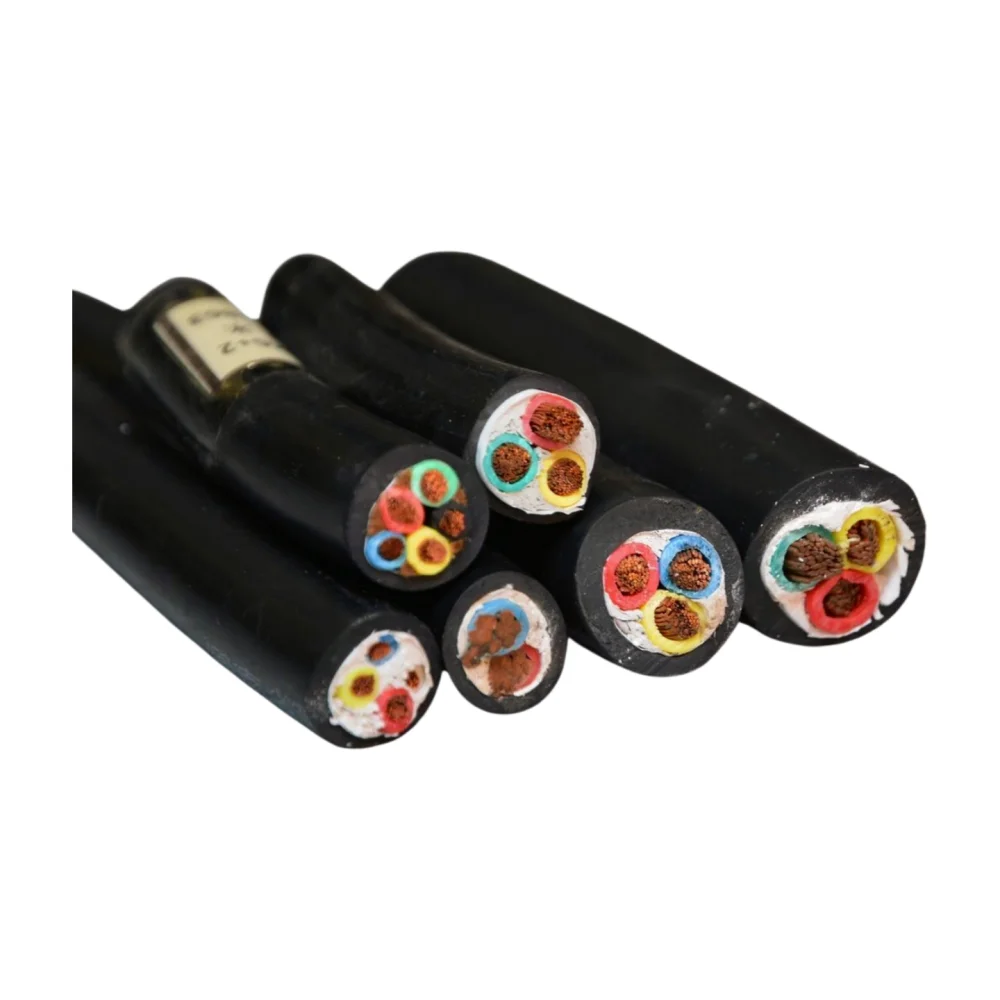

PRODUCT SHOW

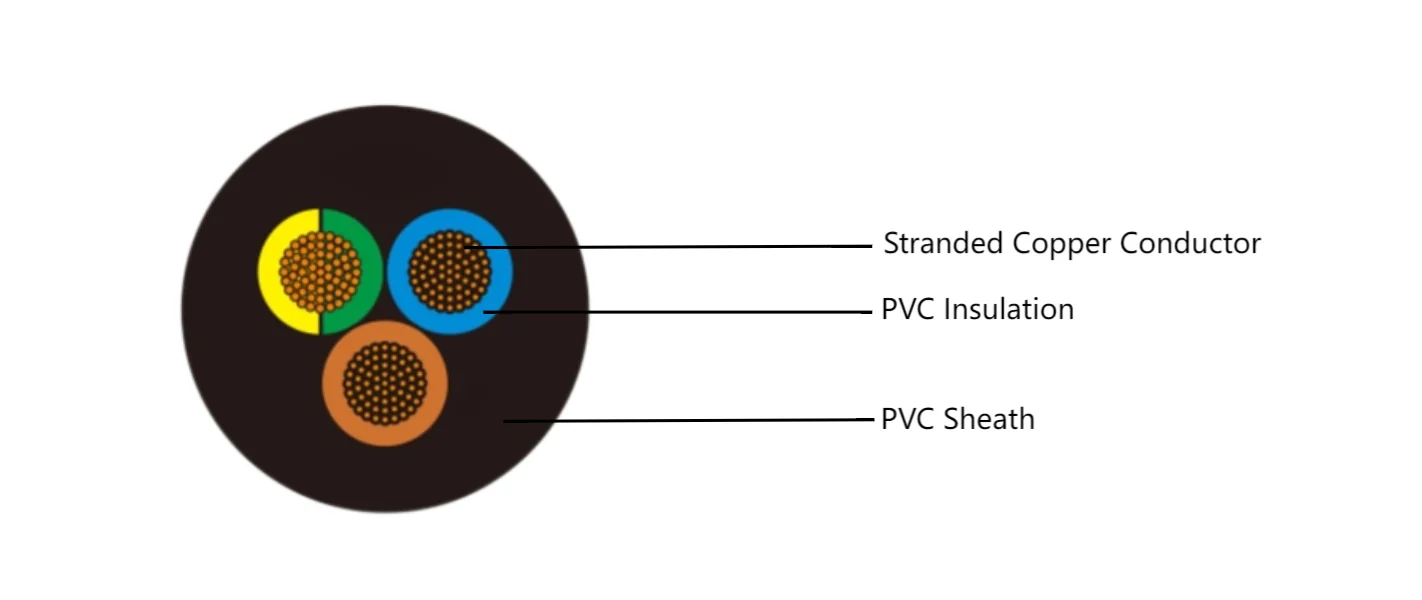

Description

1.Operating temperature: 70℃

2.Rated voltage: 300/300V,300/500V

3.Standard: GB/T5023,IEC60227-5

4.Model: 227IEC50&53 (RVV), H03VV-F/ H05VV-F

5.PVC or flame retardant colour-coded PVC insulation

6.PVC or flame retardant PVC jacket

Application

It’s used for light or medium size home appliances,instrument& meters and power-driven lighting.

Product Paramenters

Cross-sectional Area	No. & diameter of wire	Reference overall diameter	Reference weight	Min. insulation resistance at 70℃
mm2	N/mm	mm	Kg/km	MΩ.km
60227IEC52 (RVV)
2x0.5	17/0.19	5.7	46	0.012
2x0.75	26/0.19	6.10	55	0.010
3x0.5	17/0.19	6.20	57	0.012
3x0.75	26/0.19	6.65	66	0.010
60227IEC53 (RVV)
2x0.75	26/0.19	6.7	59	0.011
2x1.0	35/0.19	7.1	68	0.010
2x1.5	30/0.25	8.1	92	0.010
2x2.5	50/0.25	10.0	134	0.009
2x4.0	80/0.25	10.8	191	0.007
3x0.75	26/0.19	7.1	70	0.011
3x1.0	35/0.19	7.6	82	0.010
3x1.5	30/0.25	8.9	110	0.010
3x2.5	50/0.25	10.6	168	0.009
3x4.0	80/0.25	11.7	240	0.007
