Home / Product / Electric Wire / MMJ/NYY/NYM Copper Cable (3x1.5mm² / 3x2.5mm²)

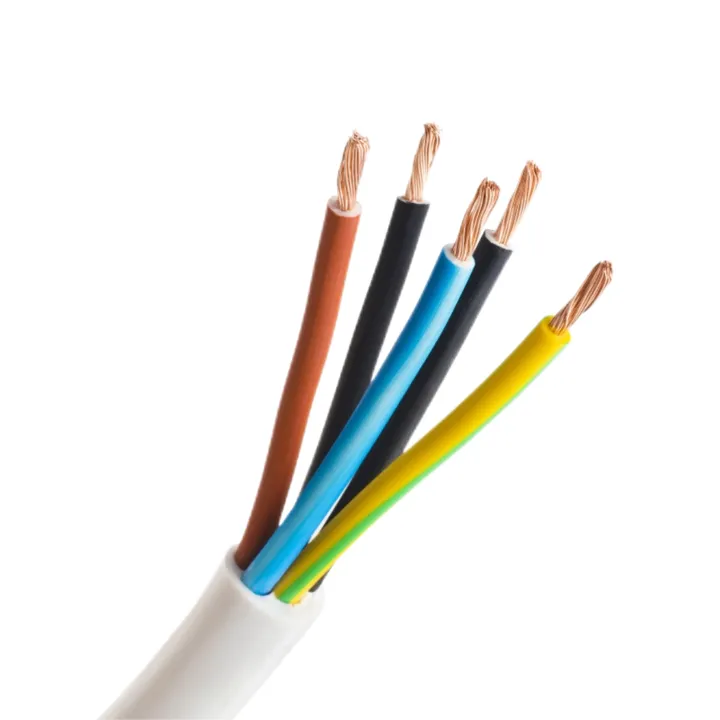

300/500V Copper PVC-insulated and Sheathed MMJ CABLE NYY CABLE NYM CABLE 3*1.5 3*2.5mm2
|
Attribute |
Value |
Category |
|
Model Number |
PVC Coated Wire, H05V-U, H07V-U, H07V-R |
Identification |
|
Type |
Insulated |
Configuration |
|
Standard |
IEC 60227, BS 6004, VDE0281 |
Compliance |
|
Rated Voltage |
$300/500\text{V}$ or $450/750\text{V}$ |
Electrical Rating |
|
Conductor Material |
COPPER, ALUMINUM |
Construction |
|
Conductor Type |
SOLID OR STRANDED OR FLEXIBLE |
Construction |
|
Insulation Material |
PVC |
Construction |
|
Cross Section |
$0.75 \sim 240\text{mm}^2$ |
Size/Configuration |
|
Cores |
1, 2, 3 |
Size/Configuration |
|
Application |
BUILDING, INDOOR, lighting |
Function |
|
Operating Temperature |
$0 \sim 70^\circ\text{C}$ |
Environmental |
|
Color |
red, yellow, green, blue, yellow & green as required |
Customization |
|
Certification |
ISO9001/ISO14001, CE |
Compliance |
|
Brand Name |
JYXL |
Logistics |
|
Place of Origin |
Henan, China |
Logistics |
|
Packing / Packaging Details |
$100$ meters per coil or as per customers' requirements. |
Packaging |
|
Port of Dispatch |
Tianjin port, Qingdao port, Shang hai port |
Logistics |
|
Selling Units |
Single item |
Commercial |
|
Sample |
free sample available |
Commercial |
Installation cable suitable for household and industrial usage. Laid on or under plaster, in walls or concrete, without special mechanical protection, but not in dry or pre-stressed concrete. Suitable for dry, same as damp or wet environment; for internal or external application (only if the cable is protected against direct sunlight).
HRN HD 21.4 S2
IEC 60227-4
DIN VDE 0250 part 204
Construction
Conductor:
bare copper conductor acc. to IEC 60228 / HD 383 / DIN VDE 0295
class 1: solid (RE construction)
class 2: multi wire stranded (RM construction)
PVC compound TI1 acc. to
DIN VDE 0281 part 1 / HD 21.1 S4
Filler: cores enveloped in non-vulcanized rubber or plastic compound
Sheath:PVC compound TM1 acc. to DIN VDE 0281 part 1 / HD 21.1 S4
sheath colour:
Core identification
Twin : Red and Black
3-core: Red, Yellow and Blue
4-core: Red, Yellow, Blue and Black
5-core: Red, Yellow, Blue, Black and Green
