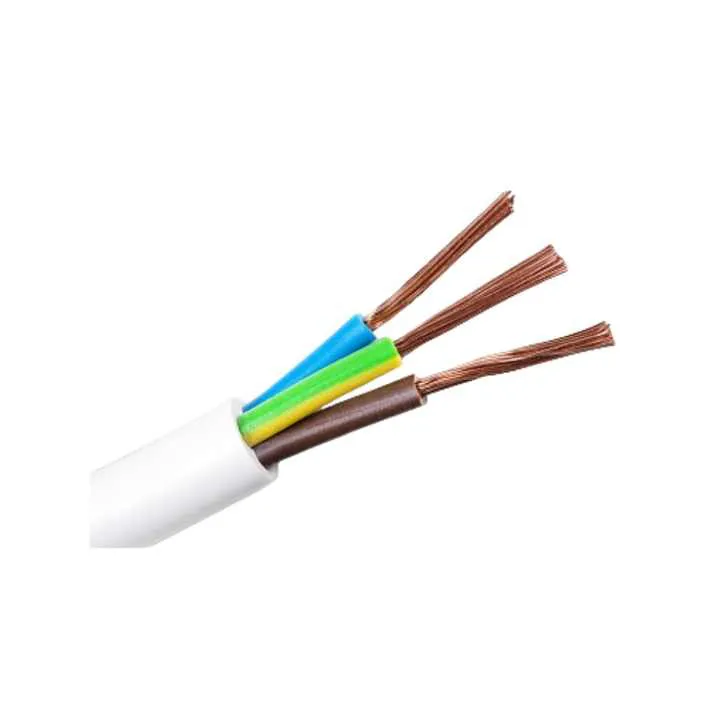

High Quality 120mm² PVC Copper Grounding Cable

Direct Factory Price High Quality 100% 120mm Pvc Insulated Earthing Copper Cable

Send Email Get Best Price

Details

Key Attributes:

Attribute	Value	Category
Product Type	earth cable	Identification
Type	Insulated	Configuration
Conductor Material	copper or aluminum	Construction
Conductor	single solid, stranded or flexible wire	Construction
Conductor Type	single solid or stranded	Construction
Insulation Material	PVC	Construction
Insulation	PVC or thermoset plastic	Construction
Application/Usage	indoor, building, housing, lighting	Function
Standard	IEC, BS, ASTM, DIN ect	Compliance
Certificate	CE, TUV	Compliance
Brand Name	JYXL	Logistics
Place of Origin	Henan, China	Logistics
Experience	since 1993	Commercial
R & D	yes	Commercial
Price	direct factory price	Commercial
Selling Units	Single item	Commercial
Packing	roll, carton, coil, wooden case	Packaging
Packaging Details	flexible package, carton, coil, wooden high	Packaging
Port of Dispatch	Tianjin Qingdao or other main port	Logistics

Product descriptions

high quality 100% 120mm pvc insulated earthing copper cable

Volt 450/750V

Standars:IEC, BS, ASTM, GB, DIN

Certificate: CE, TUV, PSB, SABS, ISO, CCC

Application:electric equipment, household, and electrical appliance

Working condition:

The non-sheathed single core wire is used for fixed wiring. It is laid in dry, normal and light duty conditions, such as in conduit and under plaster in building.

Structure:

Solid or compressed strand soft copper

Polyvinyl Chloride (PVC 60° C), flame retardant

Dry Locations 70° C. Wet Locations 70° C

Operating Voltage :450/750V.

copper ground cable

Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al		Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
