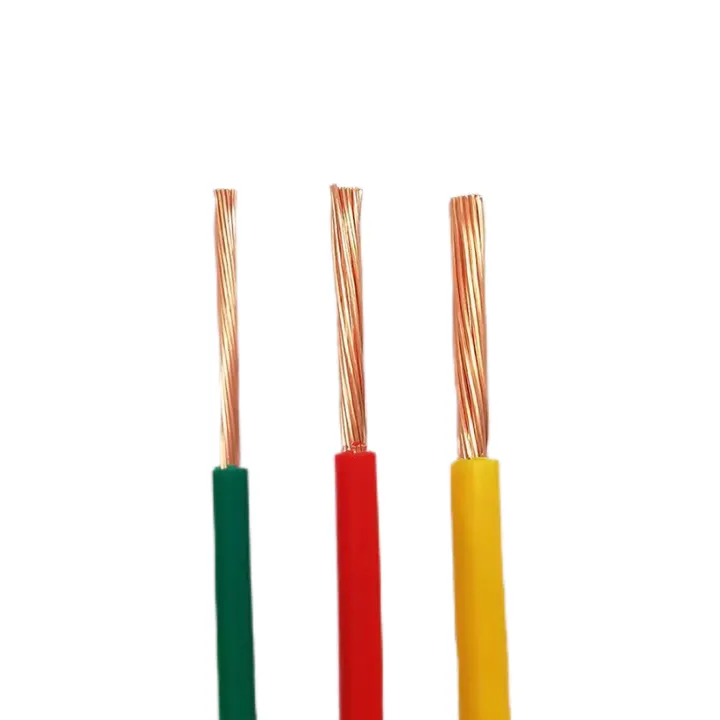

Flexible PVC Insulated Cable (RVV)

RVV H05V3V3-F PVC Insulated 3 Core 8mm Flexible Cable Size 240mm

Send Email Get Best Price

Details

Key Attributes

Attribute	Detail
Name	PVC Wires
Model Number	RVV (also BVR/BV/RV/BVV/RVV)
Type	Insulated
Brand Name	JYXL
Place of Origin	Henan, China
Conductor Material	Copper
Conductor Type	Stranded
Insulation Material	PVC
Jack	PVC
Rated voltage	300/300V,300/500V
Nominal cross section	0.5 mm2−0.75 mm2,0.75 mm2−1.5 mm2 (Implied mm2 from context)
Core	2−24
Color	Red, yellow, blue and others
Application	housing
Standard	GB/T5023.5-2008
Certification	ISO CCC

Packaging and Delivery

Attribute	Detail
Selling Units	Single item
Packaging Details	soft packing or in reel, 100 meters/roll or as your request
Port of dispatch	Tianjin port, Shanghai port, Qingdao port or others

Supply Capacity

Attribute	Detail
Supply Ability	500 kilometers per Month

Product Description

1.Standard

GB 5023.11997 , JB 8734.15-1998, GB 5023.17-1997, IEC227

2. Application: General purpose indoor and outdoor, electrical tools, washing machines, and vacuum cleaners etc.

3. Construction: Flexible annealed copper conductor PVC insulated and PVC sheathed.

4. Voltage: 300/500V

5. Core Color: Blue, brown, yellow, red, black

6. Sheath Color: Black, white, orange, grey

Brief introduction

The PVC Insulated Wire belong to series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V(UO/U).

300/500V Nominal section 0.3-0.4-0.5-0.75-1.0MM2

450/750V Nominal section 1.5-2.5-4-6-10MM2

Service performance

1) Rated voltage: 300/500V

2) Long-term working temperature: not be higher than 70°C

3) When laying the cable, the ambient temperature should not lower than 0°C

4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.

Specification

metric(mm2)	insulation	sheath	average	finished product	20°Cconductor
	thickness(mm)	thickness(mm)	diameter(mm)	similar weight(kg/km)	resistance≤Ω/km
60227 IEC 52(RVV), 60227 IEC 56(RVV-90) 300/300V
2×0.5	0.5	0.6	5.9	32.8	39
2×0.75	0.5	0.6	6.3	39.2	26
3×0.5	0.5	0.6	6.3	42.1	39
3×0.75	0.5	0.6	6.7	51.2	26
60227 IEC 53(RVV), 60227 IEC 57(RVV-90) 300/500V
2×0.75	0.6	0.8	7.2	52.3	26
2×1.0	0.6	0.8	7.5	59.3	19.5
2×1.5	0.7	0.8	8.6	78.7	13.3
2×2.5	0.8	1	10.6	119.2	7.98
3×0.75	0.6	0.8	7.6	64.8	26
3×1.0	0.6	0.8	8	74.3	19.5
3×1.5	0.7	0.9	9.4	104.4	13.3
3×2.5	0.8	1.1	11.4	157.5	7.98
4×0.75	0.6	0.8	8.3	79.4	26
4×1.0	0.6	0.9	9	95.5	19.5
4×1.5	0.7	1	10.5	134	13.3
4×2.5	0.8	1.1	12.5	196	7.98
5×0.75	0.6	0.9	9.3	191.6	26
5×1.0	0.6	0.9	9.8	114.1	19.5
5×1.5	0.7	1.1	11.6	165.8	13.3
5×2.5	0.8	1.2	13.9	242.3	7.98
60227 IEC 52(RVV), 60227 IEC 56(RVV-90) 300/300V
2×0.5	0.5	0.6	5.9	32.8	39
2×0.75	0.5	0.6	6.3	39.2	26
3×0.5	0.5	0.6	6.3	42.1	39
3×0.75	0.5	0.6	6.7	51.2	26

PVC INSULATED FLEXIBLE ROUND MULTI-CORE CABLE
	SIZE/MM2	STRUCTURE/MM	OVERALLDIAMETER/MM
2CORE	0.75	24X0.2	7.6
	1	32X0.2	7.8
	1.5	30X0.25	8.8
	2.5	49X0.25	11
3CORE	0.75	24X0.2	8
	1	32X0.2	8.4
	1.5	30X0.25	9.6
	2.5	49X0.25	11.5
	4	56X0.3	12.5
	6	84X0.3	13.5
	10	126X0.32	16.5
	16	126X0.4	20
	25	196X0.4	30.25
4CORE	0.75	24X0.2	8.6
	1	32X0.2	9.2
	1.5	30X0.25	11
	2.5	49X0.25	12.5
	4	56X0.3	13
	6	84X0.3	15.8
	10	126X0.32	17.6
	16	126X0.4	21.5
	25	196X0.4	33.5
5CORE	0.75	24X0.2	9.4
	1	32X0.2	11
	1.5	30X0.25	12
	2.5	49X0.25	13.5
	4	56X0.3	14.5
	6	84X0.3	16.4
	10	126X0.32	20.1
	16	126X0.4	24.5
	25	196X0.4	37
