Electric wires are conductive materials used to carry electrical current between power sources, devices, and systems. They are fundamental to modern electrical systems, providing safe and efficient energy transmission for various residential, commercial, and industrial applications.
Home / Product / Electric Wire / Flexible Cable 3 Core (H05VV-F, Cu/PVC, 1.5/2.5/4/6mm²)

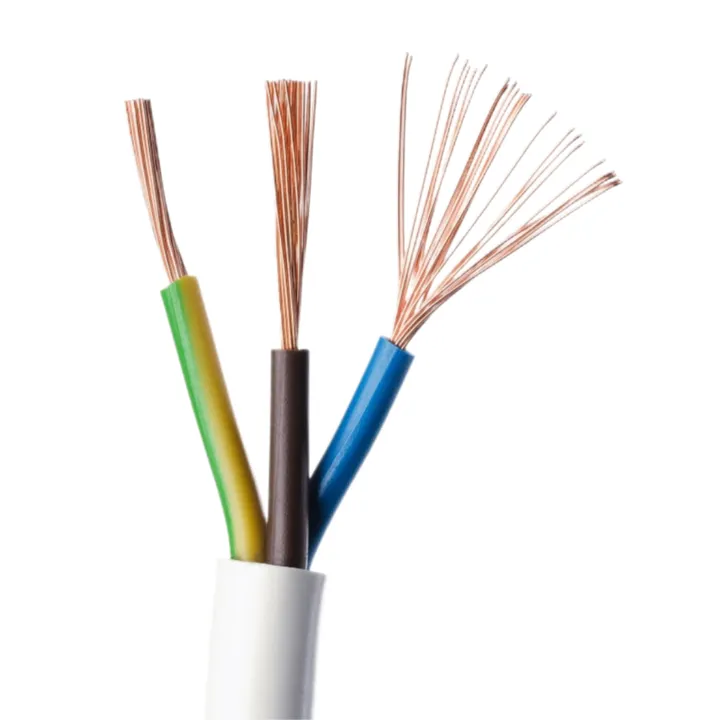

H05VV-F 3 Core 1.5mm 2.5mm 4mm 6mm Copper Pvc Insulated Flexible Cable
Key attributes
|
Industry-specific attributes |
|
|
Application |
power device,lighting,electrical applicant,instrument |
|
Conductor Material |
Copper |
|
Conductor Type |
flexible copper wire |
|
Insulation Material |
PVC |
|
Other attributes |
|
|
Place of Origin |
Henan, China |
|
Brand Name |
JIANYUN |
|
Model Number |
h03vv-f or h05vv-f |
|
Type |
insulated |
|
Certificate |
CE |
|
Rated voltage |
300/300,300/500V |
|
cores, |
2,3,4,5 cores |
|
cross section |
0.5mm,0.75mm,1.0mm,1.5mm,2.5mm, |
|
standard |
IEC 60227丨BS 62004丨DIN VED 0281 |
|
sample |
free sample |
|
Color |
blue, green, blank,grey |
|
price |
factory direct sell |
|
Type |
3 core flexible cable |
|
Conductor |
Copper or copper clad aluminum |
|
Packaging and delivery |
|
|
Packaging Details |
Soft packing in coil,100meters/roll. or as your request for 3 core flexible cable |
|
Port |
Tianjin port, Qingdao port, Shanghai port |
|
Supply Ability |
|
|
Supply Ability |
500000 Roll/Rolls per Month 3 core flexible cable |
H05VV-F 3 core 1.5mm 2.5mm 4mm copper pvc insulated flexible cable
PVC insulated wire&cable is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including450/750V.
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
1) Conductor:flexible copper wire, Class 6
2) Insulation: PVC
3)Sheath:PVC
4) Other special characteristics: Design and manufacture according to the requirements of customers.
1) Rated voltage: 300/500V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
Specification of pvc insulated flexible cable:
|
PVC INSULATED FLEXIBLE ROUND MULTI-CORE CABLE |
|||
|
|
SIZE/MM2 |
STRUCTURE/MM |
OVERALLDIAMETER/MM |
|
2CORE |
0.75 |
24X0.2 |
7.6 |
|
1 |
32X0.2 |
7.8 |
|
|
1.5 |
30X0.25 |
8.8 |
|
|
2.5 |
49X0.25 |
11 |
|
|
3CORE |
0.75 |
24X0.2 |
8 |
|
1 |
32X0.2 |
8.4 |
|
|
1.5 |
30X0.25 |
9.6 |
|
|
2.5 |
49X0.25 |
11.5 |
|
|
4 |
56X0.3 |
12.5 |
|
|
6 |
84X0.3 |
13.5 |
|
|
10 |
126X0.32 |
16.5 |
|
|
16 |
126X0.4 |
20 |
|
|
25 |
196X0.4 |
30.25 |
|
|
4CORE |
0.75 |
24X0.2 |
8.6 |
|
1 |
32X0.2 |
9.2 |
|
|
1.5 |
30X0.25 |
11 |
|
|
2.5 |
49X0.25 |
12.5 |
|
|
4 |
56X0.3 |
13 |
|
|
6 |
84X0.3 |
15.8 |
|
|
10 |
126X0.32 |
17.6 |
|
|
16 |
126X0.4 |
21.5 |
|
|
25 |
196X0.4 |
33.5 |
|
|
5CORE |
0.75 |
24X0.2 |
9.4 |
|
1 |
32X0.2 |
11 |
|
|
1.5 |
30X0.25 |
12 |
|
|
2.5 |
49X0.25 |
13.5 |
|
|
4 |
56X0.3 |
14.5 |
|
|
6 |
84X0.3 |
16.4 |
|
|
10 |
126X0.32 |
20.1 |
|
|
16 |
126X0.4 |
24.5 |
|
|
25 |
196X0.4 |
37 |
|
